Description

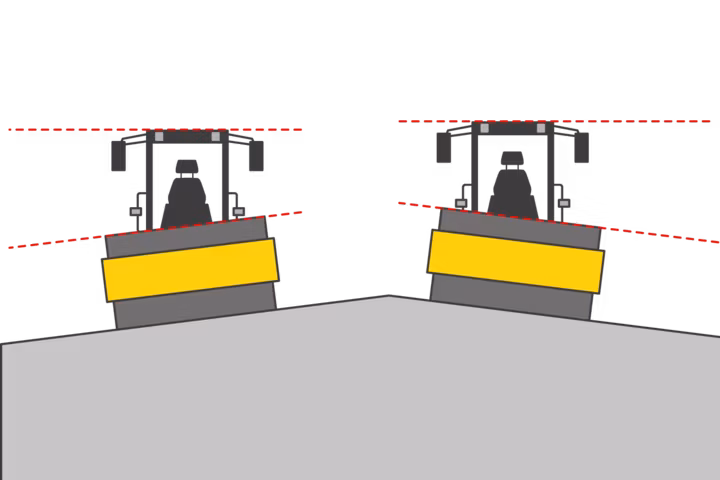

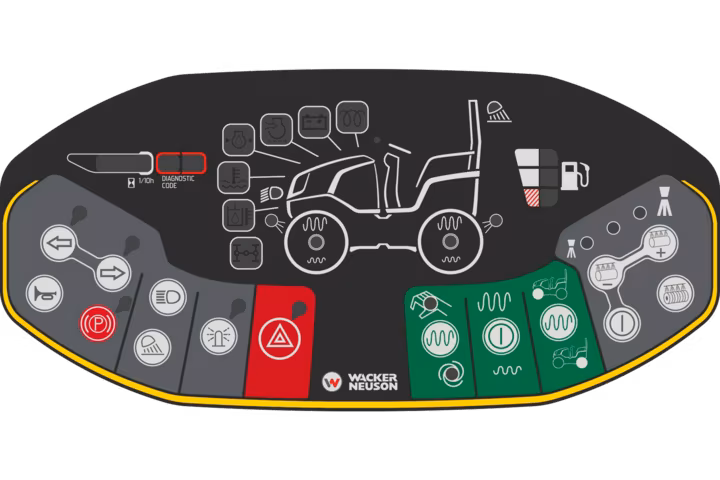

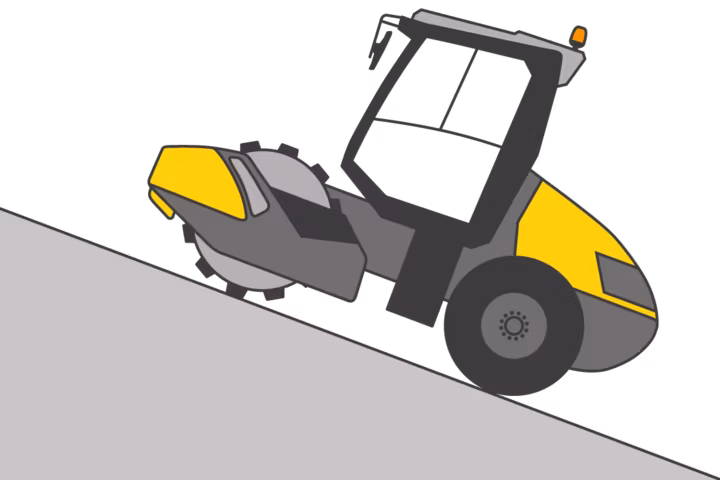

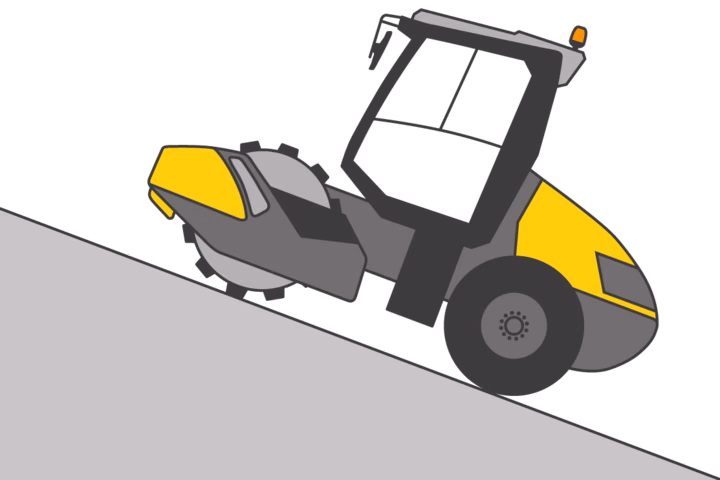

Perfect view in all directions makes work with the Wacker Neuson single drum soil compactors safe and comfortable. Because of the compact design, the operator always has the working area and the drums in view from his seat. With a large departure angle and outstanding gradeability, it is easy to maneuver even on uneven terrain. The simple operation via an intuitively-designed display and joystick also make working easier and ensure that the operator is familiar with the machine in no time. RC50 Drum roller: Powerful compaction on any terrain.
Specifications
Manufacturer
Wacker Neuson
Model
RC50p US
Year
2026
Category
Compaction Roller
Subcategory
Drum Rollers
Gradeability
55 %
Dry Weight
11,078.2 lb
Gross Vehicular Weight
11,464 lb
Empty weight with cabin
11,078.2 lb
Empty weight with ROPS
10,593.2 lb
Gradeability max without vibration
60 %
Linear load with vibration level I (front)
388.2 lb/in
Compaction Force Level I (Front)
20,907 lbf
Compaction Force I (rear)
5,395 lbf
French classific, data/class
24,1/VPM1
Vibration frequency Level I (front)
30 Hz
Centrifugal Force Level I (front)
15,512 lbf
Static Cross Slope
50 °
Operating Weight
11,364.8 lb
Operating Weight, max
12,191.57 lb
Operating Width
53.9 "
Operating weight with roll over protecting structure
10,879.8 lb
Operating weight with cabin
11,364.8 lb
Cylinder capacity
203.3 Inch3
Effective Power
74.3 hp
Standard Effective Power
ISO 14396
Fuel Tank Capacity
32.5 gal US
Exhaust-gas limit
EU Stage V
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
NRTC (CO2)
807.2 g/KWh
HC + NOx (NRTC)
3 g/KWh
Wheel load per tire (rear)
2,656.6 lb
Length
159.1 "
Curb clearance (left)
13 "
Curb clearance (right)
13 "
Total height with cabin
112.9 "
Total height with ROPS
110.6 "
Curb clearance right
2.6 "
Curb clearance left
2.6 "
Ground clearance Middle
10.6 "
Turning radius inside
132.9 "
Wheelbase
85.4 "
Turning radius outside
186.8 "
Pendulum Angle +/-
10 °
Height Ramming Shoe
3.1 "
Slope Angle (front)
43 °
Slope Angle (rear)
36 °
Width Over Tires (rear)
59.1 "
Wheel size (rear)
TR 12.4-24 8 PR
Surface of the pad feet
17.5 Inch2
