Description

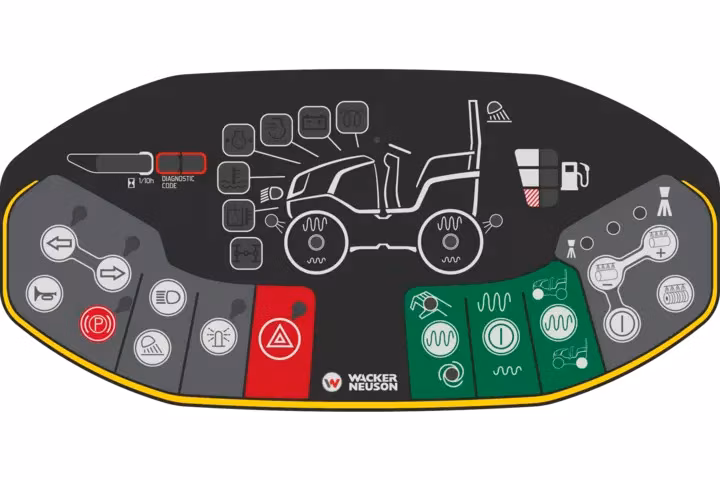

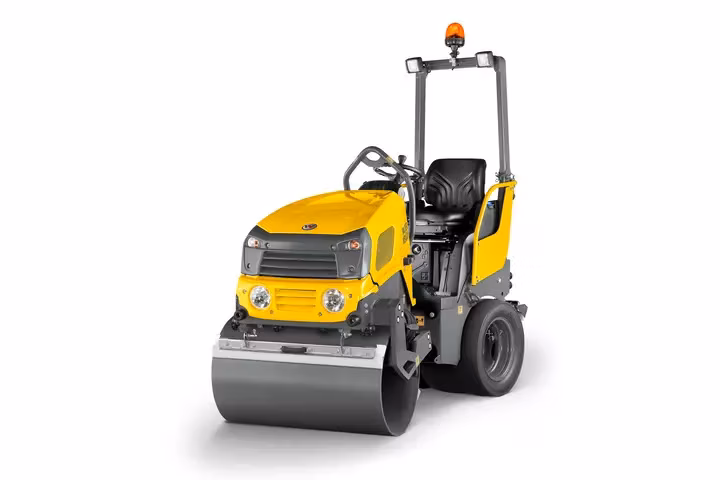

RC70 Drum rollers: Powerful compaction on any terrain Only 4.81 yd. The RC70 measures the length and is therefore impressive when it is too tight for many other drum rollers. The RC70 drum roller especially comes into its own with work in confined, inner-city areas or in gardening and landscaping works. Intuitive operation via the display and joystick, and the adjustable operator's seat also provide a higher level of working comfort.
Specifications
Manufacturer
Wacker Neuson
Model
RC70p (5100064261)
Year
2026
Category
Compaction Roller
Subcategory
Drum Rollers
Effective power
74.3 hp
Nominal Engine speed
2,200 1/min
Engine Designation
V3307-CR-TE5B
Ramming shoes (Number)
84.0
Height Ramming shoe
3.1 "
Surface of the pad feet
17.5 Inch2
Speed working gear
0 - 3.7 m/H
Speed transportation gear
0 - 7.8 m/H
Gradeability
54 %
Gradeability max (without vibration)
60 %
Linear load with vibration Level I (front)
54,382.02 lb/in
Linear load with vibration Level II (front)
46,460.67 lb/in
Compaction force Level I (front)
35,969 lbf
Compaction force Level II (front)
8,992 lbf
Compaction force I (rear)
6,295 lbf
Compaction force II (rear)
6,295 lbf
French classific, data/class
24,14/VM1
Vibration frequency Level I (front)
30 Hz
Vibration frequency Level II (front)
42 Hz
Centrifugal force Level I (front)
26,527 lbf
Centrifugal force Level II (front)
21,357 lbf
Static Cross Slope
50 °
Operating weight, max
16,226.04 lb
Gross vehicular weight
16,226 lb
Empty weight with cabin
14,726.9 lb
Slope angle (front)
44 °
Slope angle (rear)
35 °
Operating weight with cabin
15,112.7 lb
Cylinder capacity
203.3 Inch3
Standard (Effective power)
ISO 14396
Starter battery Voltage
12 V
Battery capacity (nom value)
152 Ah
Fuel Tank capacity
32.5 gal US
Exhaust gas limit values
US TIER 4
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
HC + NOx (NRTC)
3 g/KWh
Drum width (front)
66.1 "
Drum diameter (front)
53.5 "
Drum thickness (front)
0.6 "
Width with cabin
2,016 mm
Amplitude Level I (front)
0.0665 "
Amplitude Level II (front)
0.0264 "
Length
174.8 "
Curb clearance (left)
13 "
Curb clearance (right)
13 "
Total height with cabin
113.5 "
Curb clearance right
2.8 "
Curb clearance left
2.8 "
Operating width
66.1 "
Ground clearance Middle
12.7 "
Turning radius inside
130.3 "
Wheelbase
92 "
Turning radius outside
196.5 "
