Description

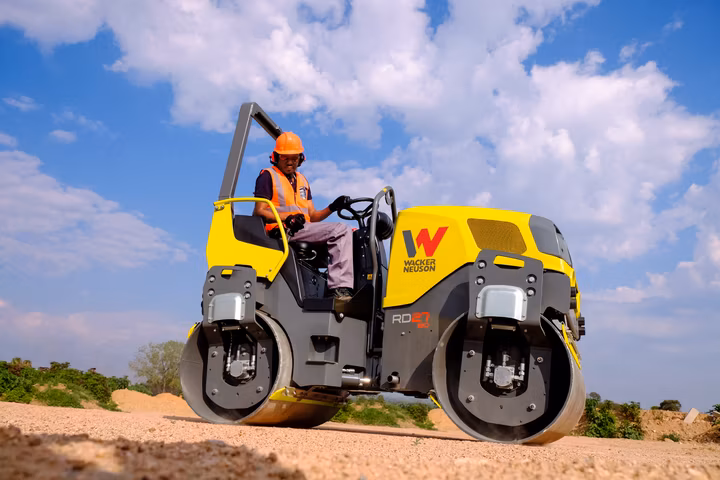

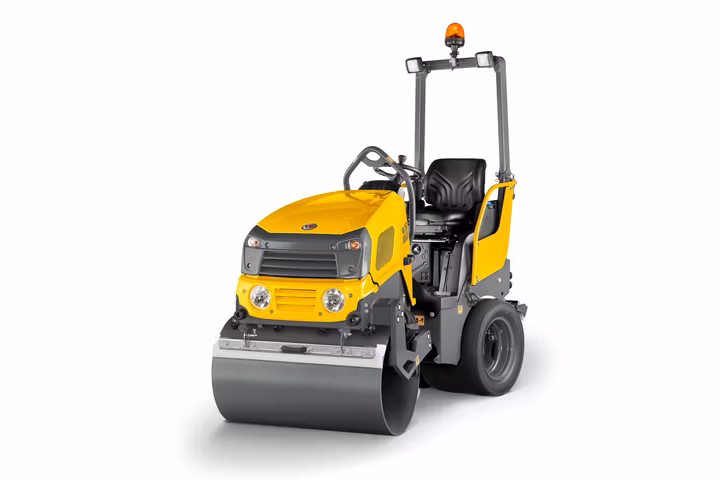

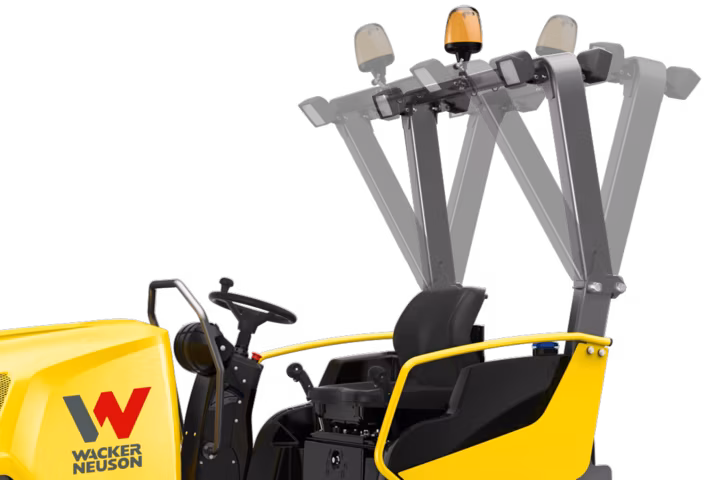

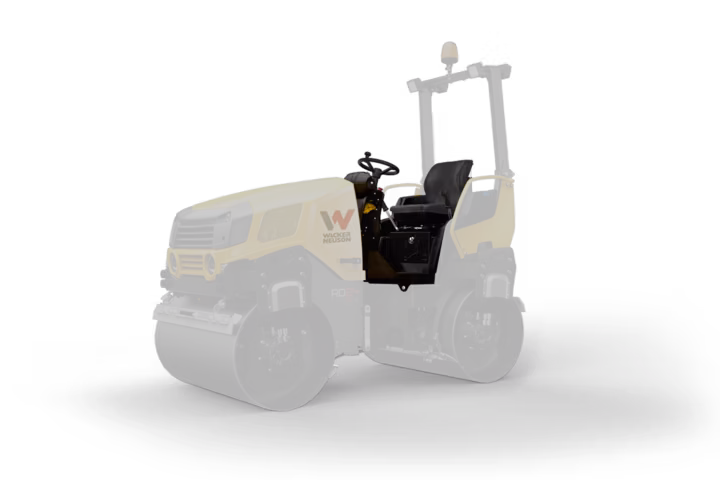

The articulated RD40 is a powerful roller that offers balanced weight distribution on the front and rear drum which provides very even compaction results. It offers high degree of driving stability and is easy to maneuver. Additionally, the excellent view compacted area and the large drum diameter contribute to first-class results. The ROPS roll-over protective structure, which can be folded away to the rear for transport, makes for a safer working environment. RD40 Tandem roller: Powerful and versatile.
Specifications
Manufacturer
Wacker Neuson
Model
RD40-130 DPF
Year
2026
Category
Compaction Roller
Subcategory
Tandem Rollers
Gradeability
30 %
Dry Weight
8,620.1 lb
Gross Vehicular Weight
9,568.1 lb
Empty weight with cabin
9,193.3 lb
Empty weight with ROPS
8,620.1 lb
Gradeability max without vibration
40 %
Static linear load (front)
91.57 lb/in
Static linear load (rear)
88.2 lb/in
Linear load with vibration level I (front)
369.1 lb/in
Linear load with vibration level II (front)
258.99 lb/in
Linear load with vibration level I (rear)
366.85 lb/in
Linear load with vibration level II (rear)
256.74 lb/in
Compaction Force Level I (Front)
18,884 lbf
Compaction Force Level II (Front)
13,264 lbf
Compaction Force I (rear)
18,659 lbf
Compaction Force II (rear)
13,039 lbf
French classific, data/class
11,1/VT0
Vibration frequency Level I (front)
60 Hz
Vibration frequency Level II (front)
51 Hz
Vibration frequency Level I (rear)
60 Hz
Vibration frequency Level II (rear)
51 Hz
Amplitude Level I (front)
0.0201 "
Amplitude Level II (front)
0.0122 "
Amplitude Level I (rear)
0.0201 "
Amplitude Level II (rear)
0.0122 "
Centrifugal Force Level I (front)
14,388 lbf
Centrifugal Force Level II (front)
8,768 lbf
Centrifugal Force Level I (rear)
14,388 lbf
Centrifugal Force Level II (rear)
8,768 lbf
Static Cross Slope
32 °
Operating Weight
9,182.3 lb
Operating Weight, max
11,816.79 lb
Operating Width
51.2 "
Operating weight with roll over protecting structure
9,182.3 lb
Operating weight with cabin
9,733.4 lb
Cylinder capacity
148.5 Inch3
Effective Power
50.2 hp
Standard Effective Power
ISO 14396
Water Tank Capacity
75.3 gal US
Fuel Tank Capacity
19.3 gal US
Exhaust-gas limit
US TIER 4
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
NRTC (CO2)
834.6 g/KWh
HC + NOx (NRTC)
3 g/KWh
Length
116.7 "
Width
56.1 "
Height
102 "
Curb clearance (left)
28.3 "
Curb clearance (right)
28.3 "
Total height with cabin
107.1 "
Total height with ROPS
102 "
Curb clearance right
2.5 "
Curb clearance left
2.5 "
Ground clearance Middle
12 "
Turning radius inside
105.9 "
Wheelbase
76.8 "
Turning radius outside
157.1 "
Drum width (front)
51.2 "
Drum width (rear)
51.2 "
Drum diameter (front)
35.4 "
Drum diameter (rear)
35.4 "
Drum thickness (front)
0.7 "
Drum thickness (rear)
0.7 "
Pendulum Angle +/-
8 °
