Description

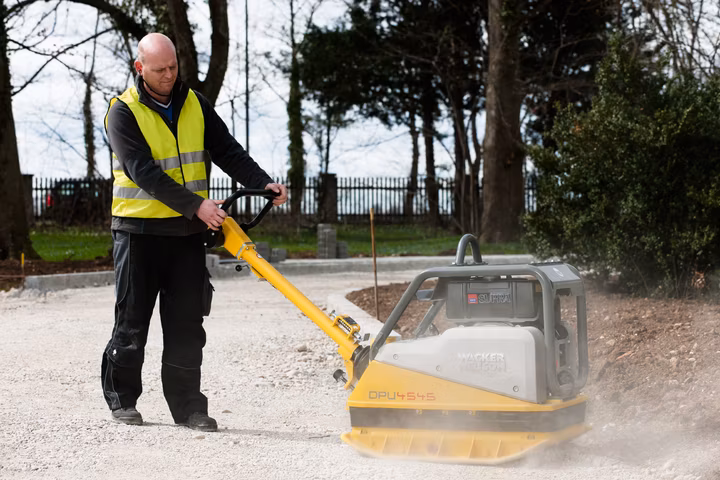

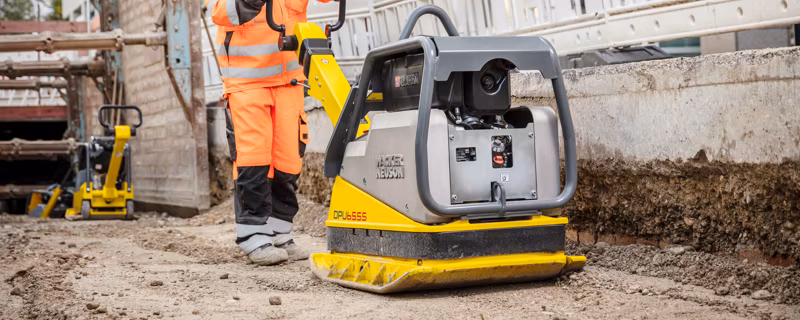

High compaction force combined with fast forward and reverse travel means the DPU 5545He achieves great productivity. It is an all-around versatile plate for all job sites that place high demands on the machine's performance potential. Its other outstanding characteristics are high operator comfort and a long service life. It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the DPU 5545He suitable for all purposes and compacts even medium-weight and heavy interlocking paving stone reliably. Compatec, the compaction control by Wacker Neuson, is available as a retrofit kit for all DPU 5545He models starting with the year 2011.
Specifications
Manufacturer
Wacker Neuson
Model
DPU5545HEH US
Year
2026
Category
Compactors
Subcategory
Reversible Vibratory Plates
Advance travel max (depending on soil & environmental factors) ft/min
77
Advance travel max (depending on soil & environmental factors) m/min
23.5
Base plate size (W x L) in
17.3 x 35.4
Base plate size (W x L) mm
440 x 900
Base plate thickness in
0.5
Base plate thickness mm
12
Centrifugal force kN
55
Centrifugal force lbf
12,364
Frequency Hz
69
Fuel consumption US gal/h
0.47 gal/h
Hand-arm vibrations ft/s²
4.9
Hand-arm vibrations m/s²
1.5
Surface capacity max (depending on soil & environmental factors) m²/h
852
Surface capacity max (depending on soil & environmental factors) ft²/h
9,171
Height (without guide handle) in
31
Height (without guide handle) mm
790
Operating weight kg
424
Operating weight lb
935
Operating width (with extension plates) in
23.6
Operating width (with extension plates) mm
600
Transport height in
59.6
Transport height mm
1,514
Transport length in
41.3
Transport length mm
1,048
Transport width in
30.7
Transport width mm
780
