Description

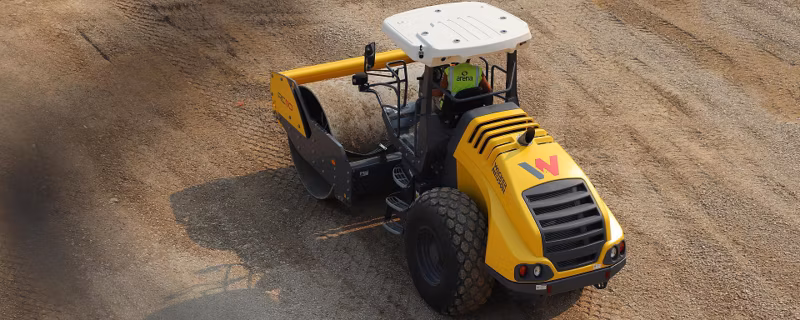

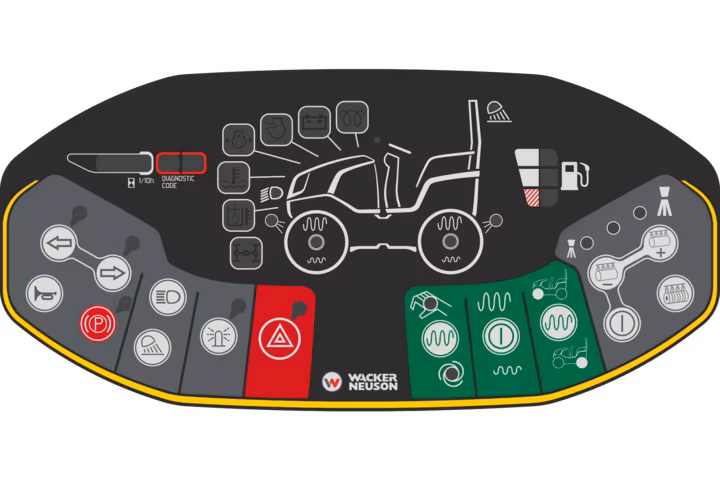

The RC110 single drum soil compactor offers optimum compaction results with excellent maneuverability, gradeability and stability. The compact design provides for an excellent view of the work area and drum from the operator seat. The spacious operator platform is isolated from vibration for comfortable operation. It also features plenty of legroom and simple operation via an intuitively designed display and joystick. The RC soil compactors are ideal for commercial and residential projects, secondary roads and parking lots.
Specifications
Manufacturer
Wacker Neuson
Model
RC110
Year
2026
Category
Compactors
Subcategory
Single Drum Soil Compactors
Amplitude front, level II mm
0.84
Amplitude front, level I mm
2.04
Amplitude front, level I in
0.08 in
Amplitude front, level II in
0.03 in
Axle load Front lb
12,987.45 lb
Axle load Front kg
5,890
Axle load Rear lb
11,002.95 lb
Axle load Rear kg
4,990
Centrifugal force front, level II kN
136
Centrifugal force front, level I kN
246
Centrifugal force front, level I lbf
55,350 lbf
Centrifugal force front, level II lbf
30,600 lbf
Drum diameter in
59.21 in
Drum diameter mm
1,504
Drum type
smooth/undivided
Drum width in
84.25 in
Drum width mm
2,140
Frequency front, level I Hz
30
Frequency front, level II Hz
36
Frequency front, level I Vpm
1,800 Vpm
Frequency front, level II Vpm
2,160 Vpm

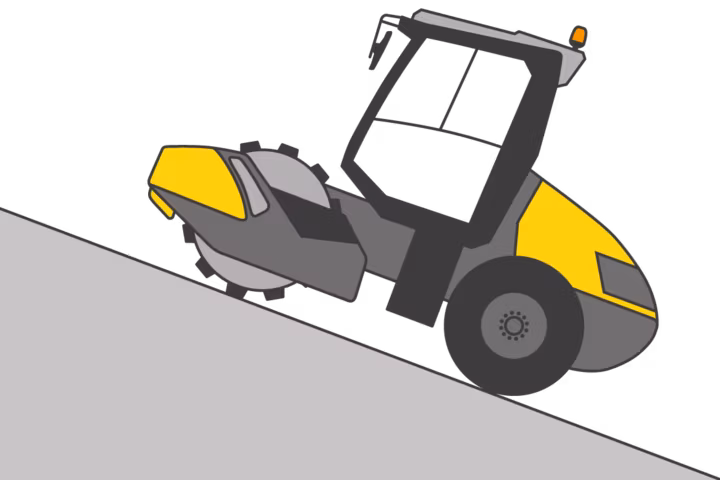

Gradeability with vibration %
54
Gradeability without vibration %
59
Tank capacity ad blue US gal
8.45 gal
Tank capacity ad blue l
32
Travel speed max mph
8.7 mph
Travel speed max km/h
14
Turning radius mm
3,870
Curb clearance left in
2.84
Curb clearance left mm
72
Curb clearance right in
2.84
Curb clearance right mm
72
Ground clearance Middle in
15.35
Ground clearance Middle mm
390
L x W x H in
230.3 x 89.9 x 116.5
L x W x H mm
5850 x 2284 x 2960
Operating weight max kg
13,290
Operating weight max lb
29,304
Operating weight with cab kg
10,880
Operating weight with ROPS kg
10,630
Operating weight with ROPS lb
23,435
Operating width max in
84.25
Operating width max mm
2,140
Operating weight with cab lb
23,986
Turning radius in
152.4
