Description

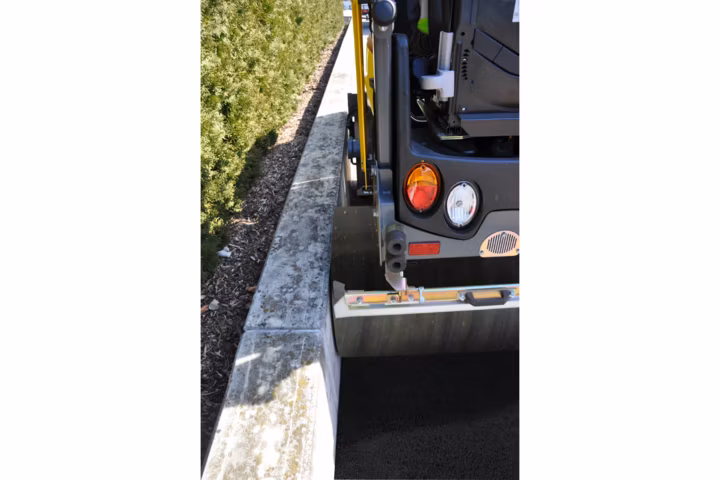

The RD24 articulated ride-on rollers offer a large drum diameter combined with a low machine center of gravity to ensure excellent compaction quality. The unique drum offset allows for easy maneuvering when compacting along walls and provides for a smoother finish. The ergonomic operator platform is isolated to reduce vibration, provides plenty of legroom and offers an adjustable seat the moves forward as well as side to side for greater comfort.
Specifications
Manufacturer
Wacker Neuson
Model
RD24-100 O
Year
2026
Category
Compactors
Subcategory
Tandem Rollers
Advance travel (max) m/min
200
Amplitude in
0.02 in
Amplitude mm
0.54
Axle load front kg
1,205
Axle load front lb
2,657
Axle load rear kg
1,320
Axle load rear lb
2,910
Centrifugal force front Level II kN
28
Centrifugal force front Level I kN
46
Centrifugal force front Level I lbf
10,340
Centrifugal force front Level II lbf
6,295
Drum diameter in
28.4 in
Drum diameter mm
720
Drum type front
smooth / undivided
Drum type rear
smooth / undivided
Drum width in
39.4 in
Drum width mm
1,000
Frequency Level I Hz
67
Frequency Level II Hz
52
Frequency Level I Vpm
4,020 Vpm
Frequency Level II Vpm
3,120 Vpm
Gradeability with vibration %
35
Gradeability without vibration %
40
Linear force - front / rear static lb/in
69.1 / 75.37
Linear force - front / rear static N/mm
12.1 / 13.2
Linear force static (front) lb/in
Front: 69.1 lb/in
Linear force static (rear) lb/in
75.37 lb/in
Oscillation force rear Level II kN
23
Oscillation force rear Level I kN
40
Oscillation force rear Level I lbf
8,992.4
Oscillation force (rear) level I lbf
8,992.4 lbf
Oscillation force (rear) level II lbf
5,170.6 lbf
Oscillation frequency rear Level I Hz
39
Oscillation frequency rear Level II Hz
30
Oscillation frequency (rear) level I Hz
39 Hz
Oscillation frequency (rear) level II Hz
30 Hz
Oscillation force rear Level II lbf
5,170.6
Tangential amplitude (rear) in
0.052 in
Tangential amplitude rear in
0.052
Tangential amplitude rear mm
1.34
Tank capacity water l
180
Turning radius inside mm
2,470
Tank capacity Water US gal
47.6 gal
Curb clearance in
22.5
Curb clearance mm
570
Ground clearance middle in
11
Ground clearance middle mm
280
L x W x H in
96.9 x 43.7 x 94.1
L x W x H mm
2,460 x 1,110 x 2,390
Operating weight max kg
3,240
Operating weight max lb
7,143
Operating weight with ROPS kg
2,525
Operating weight with ROPS lb
5,567
Operating width in
41.4
Operating width mm
1,050
Turning radius inside in
97.3
