Description

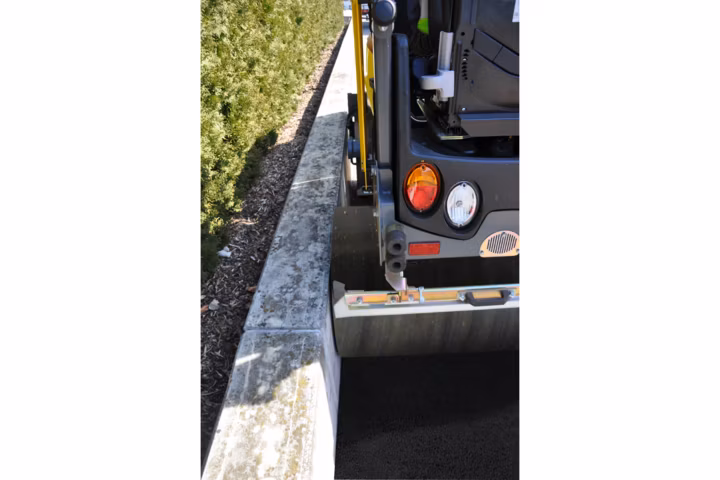

Due to the specially tapered design of the articulated tandem-axle rollers, the operator maintains an excellent view of the drum edges, the machine environment and the job site. This ensures ideal compaction results. The ergonomic operator's platform, the vibration-reduced driver's cabin and the 3-point articulated joint provide for maximum driving comfort. Drum offset allows for easy maneuvering when compacting along walls and provides a smoother finish.
Specifications
Manufacturer
Wacker Neuson
Model
RD28-120o
Year
2026
Category
Compactors
Subcategory
Tandem Rollers
Advance travel max ft/min
656 ft per min
Advance travel max m/min
200
Amplitude in
0.02 in
Amplitude mm
0.52
Axle load front kg
1,335
Axle load front lb
2,943
Axle load rear kg
1,420
Axle load rear lb
3,131
Centrifugal force front level II kN
32
Centrifugal force front level II lbf
7,194
Centrifugal force front level I kN
52
Centrifugal force front level I lbf
11,690
Drum diameter in
28.4 in
Drum diameter mm
720
Drum type front
smooth / undivided
Drum type rear
smooth / undivided
Drum width in
47.3 in
Drum width mm
1,200
Frequency level I Hz
67
Frequency level II Hz
52
Frequency Level I Vpm
4,020 Vpm
Frequency Level II Vpm
3,120 Vpm
Gradeability with vibration %
35
Gradeability without vibration %
40
Linear force - front / rear static lb/in
63.95 / 67.4
Linear force - front / rear static N/mm
11.2 / 11.8
Linear force static (front) lb/in
Front: 63.95 lb/in
Linear force static (rear) lb/in
67.4 lb/in
Oscillation force level II kN
23
Oscillation force level II lbf
5,170.6
Oscillation force level I kN
40
Oscillation force level I lbf
8,992.4
Oscillation force Level I lbf
8,992.4 lbf
Oscillation force Level II lbf
5,170.6 lbf
Oscillation frequency level I Hz
39
Oscillation frequency level II Hz
30
Oscillation frequency Level I Hz
39 Hz
Oscillation frequency Level II Hz
30 Hz
Tangential amplitude in
0.04 in
Tangential amplitude mm
1.14
Tank capacity water l
180
Turning radius inside mm
2,370
Tank capacity Water US gal
47.6 gal
Curb clearance in
22.5
Curb clearance mm
570
Ground clearance middle in
11
Ground clearance middle mm
280
L x W x H in
96.9 x 51.6 x 94.1
L x W x H mm
2,460 x 1,310 x 2,390
Operating weight max kg
3,470
Operating weight max lb
7,650
Operating weight with ROPS kg
2,755
Operating weight with ROPS lb
6,074
Operating width in
49.3
Operating width mm
1,250
Turning radius inside in
93.3
