Description

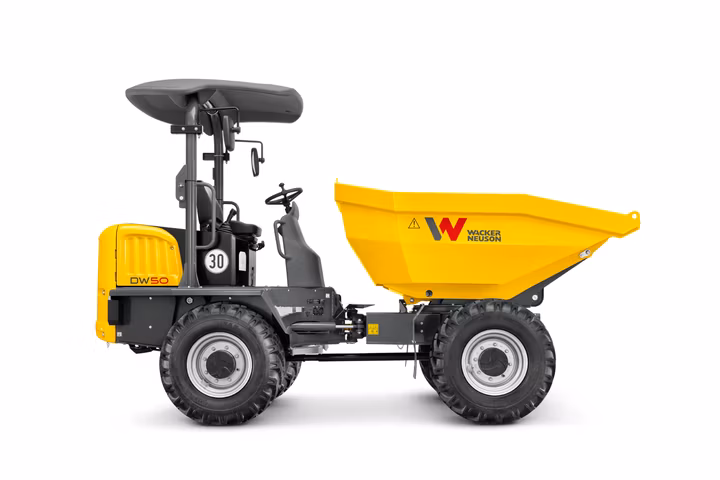

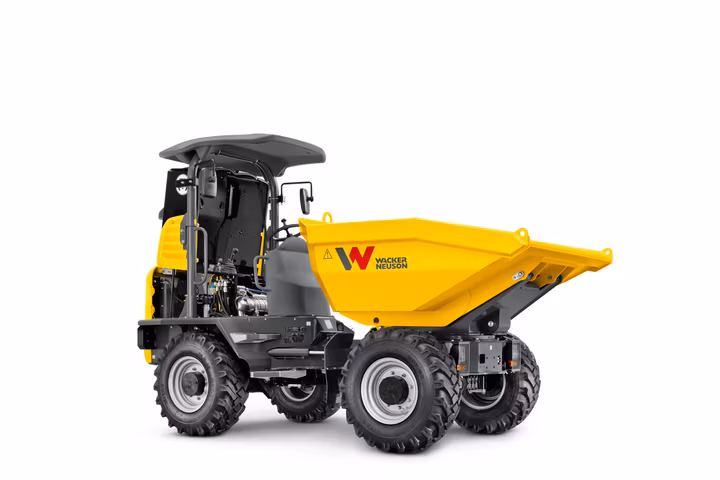

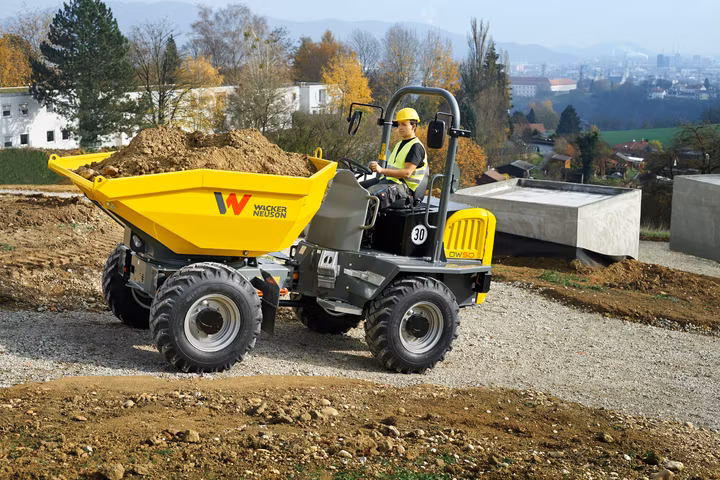

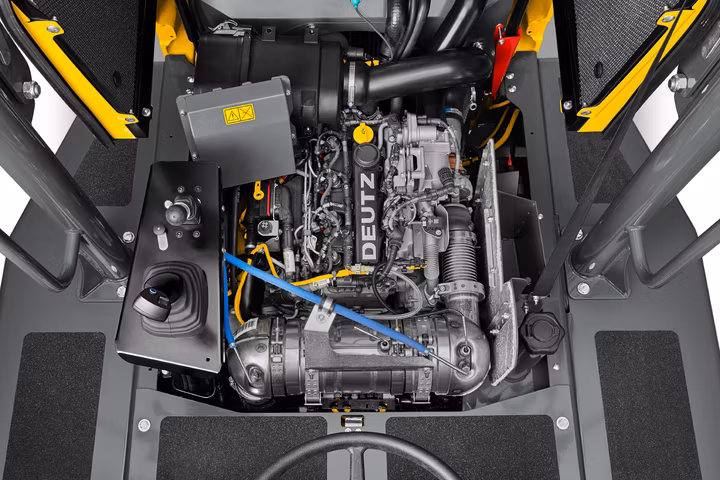

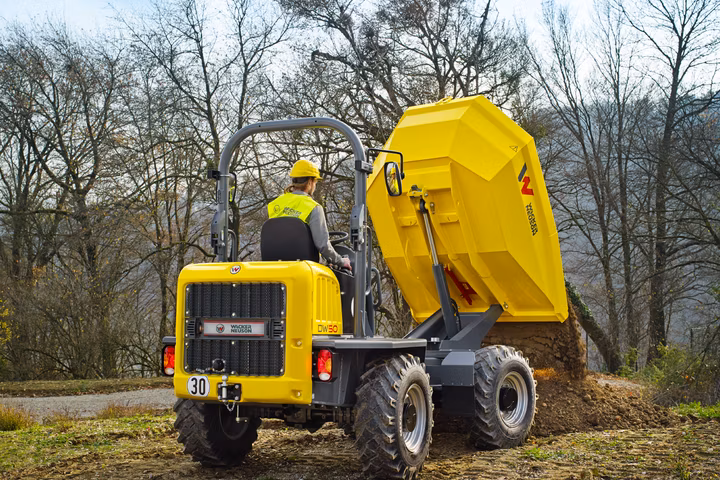

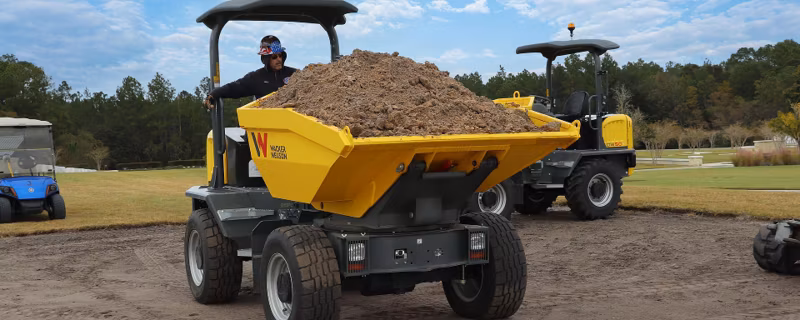

The DW50 dumper combines a compact design with powerful engine and hyrostatic all-wheel drive making it capable of hauling more in less time, reducing cycle times and increasing efficiency. This 5-ton class dumper offers a payload of 11,023 lbs and driving speed up to 17.4 mph, plus its ability to travel across rough terrain makes it extremely versatile for moving all types of material on any job site. The unique compact design along with the powerful 74.2 hp engine allows the DW50 to access confined areas but provide the power needed to move heavier loads.
Specifications
Manufacturer
Wacker Neuson
Model
DW50
Year
2026
Category
Dumpers
Subcategory
Wheel Dumpers
Articulation angle
37 °
Dump angle
48 °
Dump height max
45.7 in
Dumping distance
10.2 in
Duty pump
Gear pump
Flow rate
12 US gpm
Gradeability
50 %
Hydraulic oil tank
10.6 US gal
Operating pressure
3,191 psi
Payload
11,023 lb
Pendulum angle
15 °
Rear overhang
48.4 in
Skip capacity - Heaped
3.47 yd³
Skip capacity - Leveled
2.58 yd³
Skip capacity - Water
1.67 yd³
Skip height flat skip
70.5 in

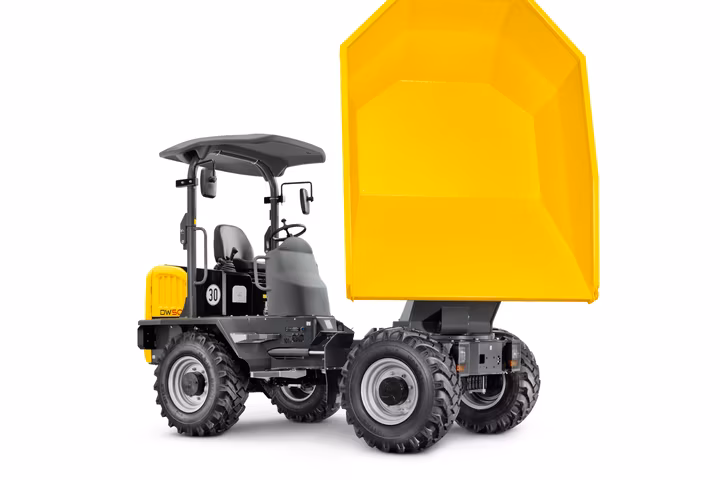

Skip height tilted skip
142.5 in
Skip width
75.2 in
Sound level (LwA)
101 dB(A)
Steering pump
Axial piston pump
Travel speed
17.4 mph
Turning radius
4,250 mm
Ground clearance
14.6 in
Height ROPS
110.8 in
Height ROPS down
79.9 in
L x W x H
177 x 75.4 x 110.8 in
Overall length
177 in
Rear overhang
1,230 mm
Shipping weight ROPS
7,595 lb
Skip height flat skip
1,790 mm
Skip height tilted skip
3,620 mm
Skip width
1,910 mm
Turning radius
167.3 in
Wheelbase
84.3 in
Width
75.4 in
