Description

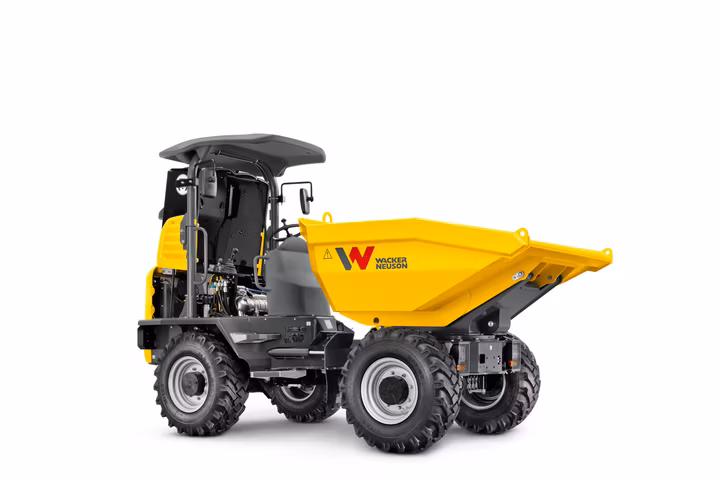

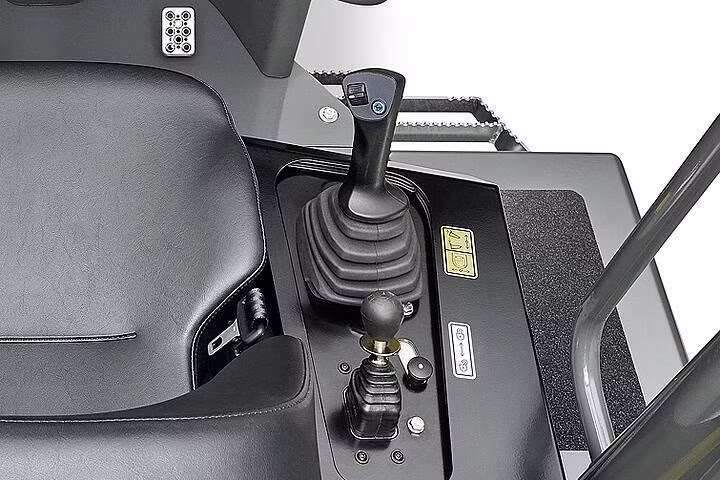

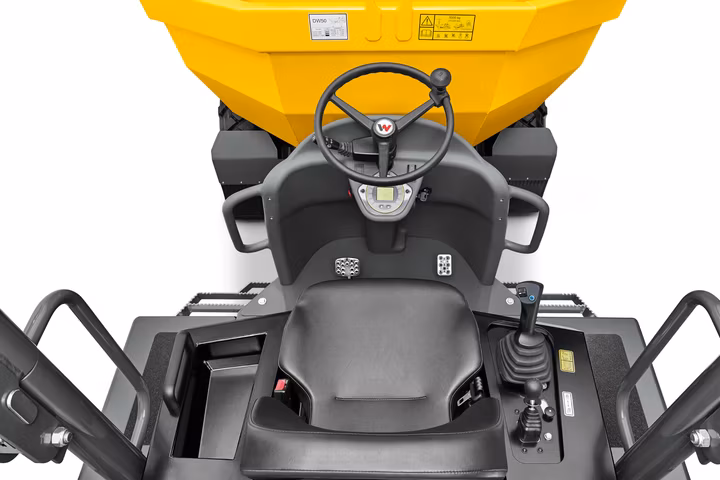

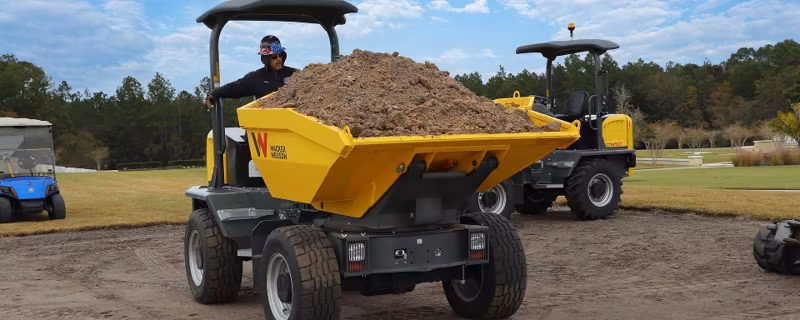

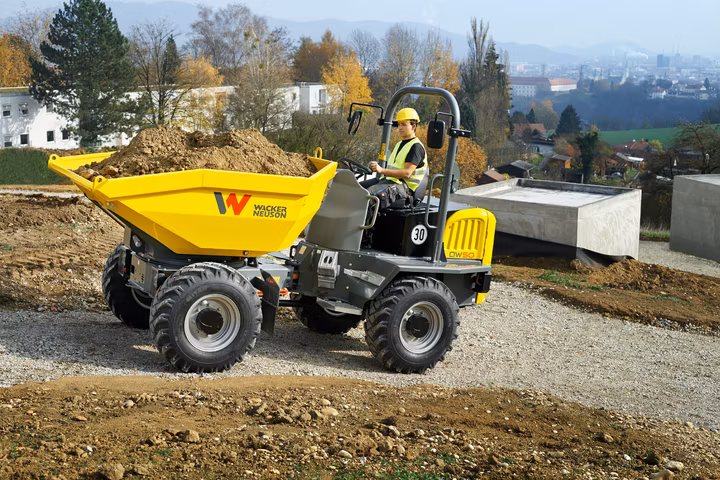

DW30 Wheel dumper: Compact, safe and a very versatile machineThe all-wheel drive system and the constant tractive force combined with the articulated pendulum joint and the gradeability of up to 50% make the DW30 a real off and on-road pro. At the same time, the low service and maintenance costs associated with it are impressive. An engine with higher performance that gives the DW30 additional power is also available as an option. The optional cab is a benefit when working in the rain, cold or heat. The intuitive operating concept with joystick controls and clearly arranged instrument panel allows the operator to concentrate fully on the task. The high swivel tip skip with tilt sensor fulfills the requirements for all applications. Long maintenance intervals reduce required maintenance to a minimum, saving money and time.
Specifications
Manufacturer
Wacker Neuson
Model
DW30
Year
2026
Category
Dumpers
Subcategory
Wheel Dumpers
Gradeability
0.6
Travel speed
12.4 m/H
Travel speed (Option)
15.5 m/H
Length
153.7 - 159.3
Operating weight (min-max)
4,515.1 - 5,524.8 lb
Width
68.1
Height
116.9
Weight
4,380.59 lb
Payload
6,613.9 lb
Skip capacity levelled
375.1 gal
Skip capacity heaped
475.5 gal
Skip capacity waterlevel
293.2 gal
Pendulum angle
15 °
Cylinder
3
Cylinder capacity
101 Inch3
Effective power
48 hp
Nominal Engine speed
3,000 1/min
Engine type
Diesel engine
Exhaust-gas limit
EPA Tier
Manufacturer
Perkins
Engine designation
403J - E17T
Operating pressure
6,452.5 psi
Flow rate
17.4 gal/mi
Hydraulikpump
Axialpistonpump
Turning radius
153.5
Articulation angle
36 °
Drive unit
Swash plate

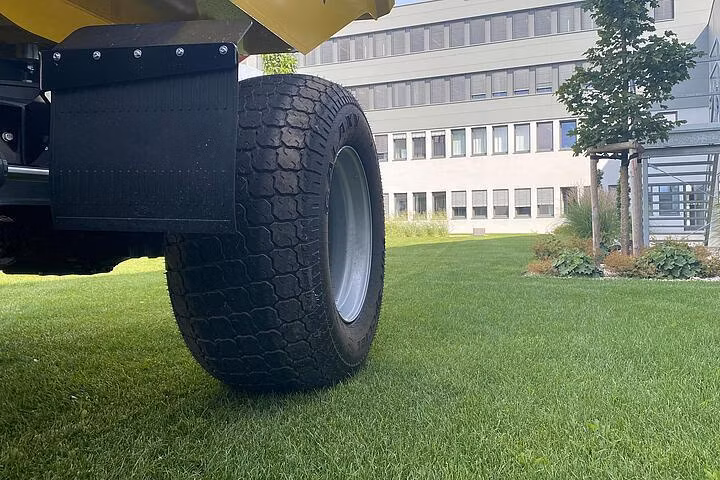

Tires
10.0/75 - 15.3 10PR
Shipping weight
4,270.4 lb
Stroke
3.94
Bore
3.31
Height ROPS
110.2 in
Height with cab
105.9 in
Height of ROPS tilted
75.4 in
Width of vehicle
68.1 in
Width of skip
68.2 in
Total length ROPS
146.1 in
Total length of cab
163.0 in
Total length ROPS tilted
156.9 in
Total length with towing device
149.2 in
Wheel base
76.6 in
Rear overhang
37.9 in
Dumping width
21.4 in
Dumping height max
76 in
Skip height
58 in
Skip height tilted
81.7 in
Ground clearance
10.1 in
Dumping angle
48 °
