Description

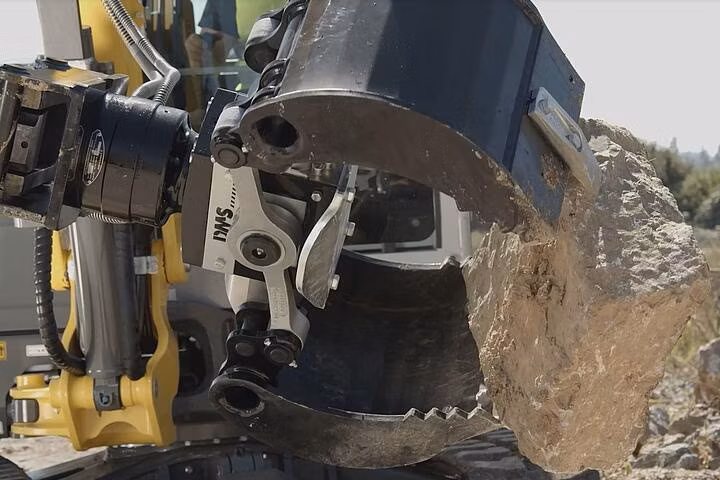

ET58 Tracked Conventional Excavator: Powerful, comfortable and saferFull speed ahead: The ET58 mini excavator combines proven technology with a large dose of innovation to become a champion in the 5-6-metric-ton class. It has the usual high lifting and digging forces as well as fast work cycles. Thanks to the latest technologies, emissions have been reduced and efficiency has been increased at the same time. The powerful engine meets the Stage 5 emission standards. The excavator also makes an impression in terms of user-friendliness. Work is easy and comfortable due to the intuitive operating concept and the excellent view of the working area.
Specifications
Manufacturer
Wacker Neuson
Model
ET58
Year
2026
Category
Excavators
Subcategory
Tracked Conventional Tail Excavators
Cylinder
3
Superstructure turning speed
9 1/min
Travel speed
2.7 m/H
Break Out Force Bucket
46 kN
Break Out Force Lift Arm
28 kN
Length
238.2 "
Operating weight (min-max)
11,137.8 - 14,078.7 lb
Digging depth (max)
158.1 "
Width
77.2 "
Height
105 "
Weight
10,178.75 lb
Cylinder,One
3,0
Cylinder capacity
101.4 Inch3
Effective power
44.9 hp
Nominal Engine speed
2,100 1/min
Battery capacity (nom value)
77 Ah
Operating pressure
3,552.5 psi
Flow rate
33.3 gal/mi
Flow rate max
34.9 gal/mi
Operating pressure slewing gear
209 bar
Hydraulikpump
Axial piston pump
Shipping weight
10,619.7 lb
Drive unit
Axialpistonmotor with RGU

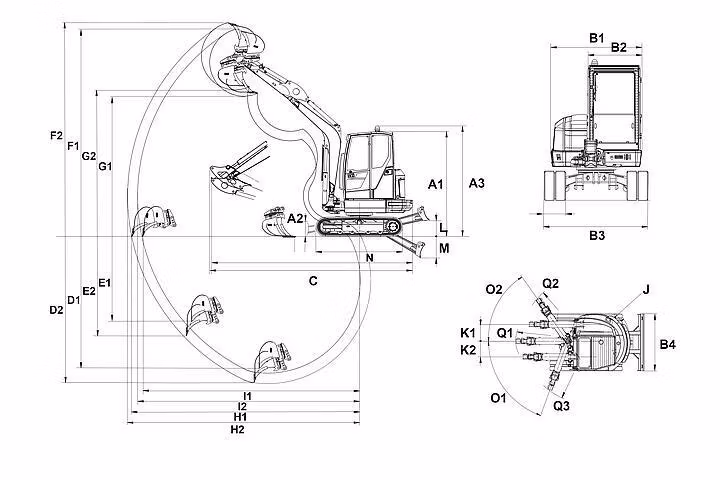

A1 , Height with cab
100.47 in
A2 , Height of dozer blade
16.9 in
A3 , Total height with rotating beacon
104.84 in
B1 , Width of upper carriage
67.73 in
B2 , Width of cab
38.61 in
B3 , Width travel gear
77.22 in
B4 , Width of dozer blade
77.22 in
C , Transport length short shovel arm
214.93 in
C , Transport length long shovel arm
214.57 in
D1 , Digging depth max, short shovel arm
148.42 in
D2 , Digging depth max, long shovel arm
158.27 in
E1 , Piercing depth max, short shovel arm
106.7 in
E2 , Piercing depth max, long shovel arm
116.03 in
F1 , Piercing height max, short shovel arm
226.51 in
F2 , Piercing height max, long shovel arm
232.85 in
G1 , Dumping height max, short shovel arm
151.06 in
G2 , Dumping height max, long shovel arm
157.4 in
H1 , Digging radius max, short shovel arm
237.94 in
H2 , Digging radius max, long shovel arm
247.31 in
I1 , max reach at ground level (short shovel arm)
233.25 in
I2 , max reach at ground level (long shovel arm)
242.86 in
J , Tail swing radius
51.7 in
J , Tail swing radius with tail weight
55.8 in
K1 , Boom offset max (to center of bucket right side)
21.71 in
K2 , Boom offset max (to center of bucket left side)
22.97 in
L , Stacking height max (dozer blade above surface)
16.31 in
M , Digging depth max (dozer blade below surface)
17.3 in
N , Length travel drive
98.85 in
O1 , max swivel angle (arm system to the left)
70 °
O2 , max swivel angle (arm system to the right)
55 °
Q1 , Boom swing radius center
94.91 in
Q2 , Boom swing radius right
89.64 in
Q3 , Boom swing radius left
79.67 in
