Description

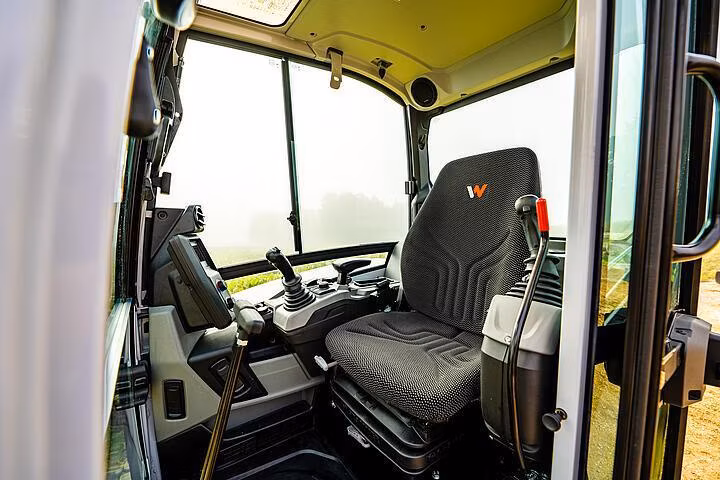

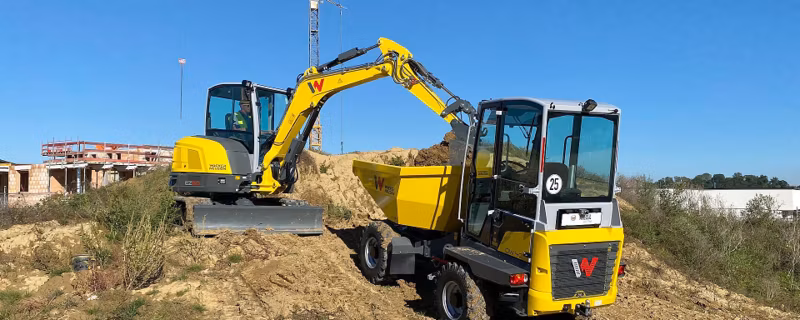

EZ50 Tracked Zero Tail Excavator: The compact and powerful zero-tail excavatorFull speed ahead: The EZ50 mini-excavator offers excellent lifting and digging power as well as quick work cycles. Using the newest technologies, the emissions of the mini-excavator were reduced and, at the same time, the efficiency increased. For example, the powerful engine in the EZ50 meets the stage 5 exhaust emission standards. In terms of operator-friendliness, the excavator is impressive. The intuitive operating concept and excellent view of the work area contribute to the easy and comfortable operation of the machine. The EZ50 is also a zero-tail excavator and is well suited for working in narrow spaces.
Specifications
Manufacturer
Wacker Neuson
Model
EZ50
Year
2026
Category
Excavators
Subcategory
Tracked Zero Tail Excavators
Superstructure turning speed
9.5 1/min
Travel speed
2.7 m/H
Break Out Force Bucket
36.8 kN
Break Out Force Lift Arm
24.8 kN
Length
238.2 "
Operating weight (min-max)
10,685.8 - 12,908.1 lb
Digging depth (max)
144.4 "
Width
77.2 "
Height
105 "
Weight
10,178.75 lb
Cylinder
3,0
Cylinder capacity
101.4 Inch3
Effective power
43.6 hp
Nominal Engine speed
2,000 1/min
Battery capacity (nom value)
77 Ah
Operating pressure
3,552.5 psi
Flow rate
33.3 gal/mi
Flow rate max
33.3 gal/mi
Operating pressure slewing gear
209 bar
Hydraulikpump
Axial piston pump
Shipping weight
10,178.8 lb

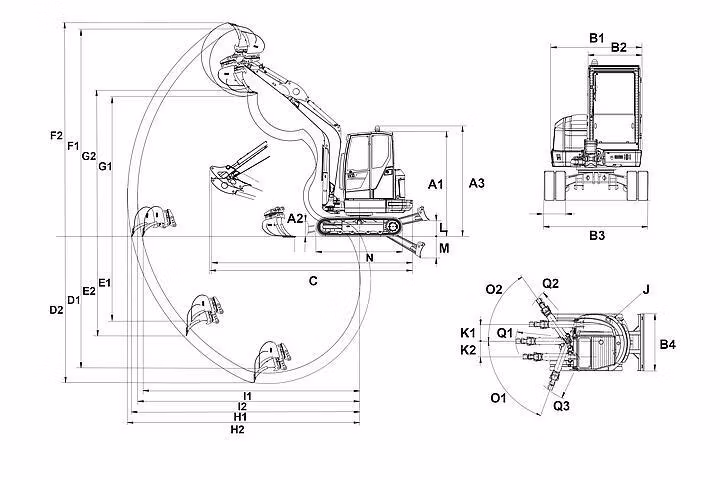

A1, Height with cab
100.67 in
A3, Total height with rotating beacon
105.08 in
B1, Width of upper carriage
67.93 in
B2, Width of cab
38.61 in
B3, Width travel gear
77.22 in
B4, Width of dozer blade
77.22 in
C, Transport length short shovel arm
215.4 in
C, Transport length long shovel arm
215.99 in
D1, Digging depth max short shovel arm
136.6 in
D2, Digging depth max long shovel arm
144.48 in
E1, Piercing depth max short shovel arm
82.15 in
E2, Piercing depth max long shovel arm
89.12 in
F1, Piercing height max short shovel arm
215.52 in
F2, Piercing height max long shovel arm
220.6 in
G1, Dumping height max short shovel arm
144.01 in
G2, Dumping height max long shovel arm
149.09 in
H1, Digging radius max short shovel arm
233.09 in
H2, Digging radius max long shovel arm
242.31 in
I1, Max reach at ground level short shovel arm
228.28 in
I2, Max reach at ground level long shovel arm
235.93 in
J, Tail swing radius
41.25 in
J, Tail swing radius with tail weight
45.39 in
K1, Boom offset max to center of bucket right side
30.1 in
K2, Boom offset max to center of bucket left side
30.34 in
L, Stacking height max dozer blade above surface
16.15 in
M, Digging depth max dozer blade below surface
17.45 in
N, Length travel drive
98.82 in
O1, Max swivel angle arm system to the left
70 °
O2, Max swivel angle arm system to the right
55 °
Q1, Boom swing radius center
98.7 in
Q2, Boom swing radius right
91.76 in
Q3, Boom swing radius left
81.32 in
Distance bucket dozer blade short shovel arm
16.9 in
Distance bucket dozer blade long shovel arm
13.12 in
