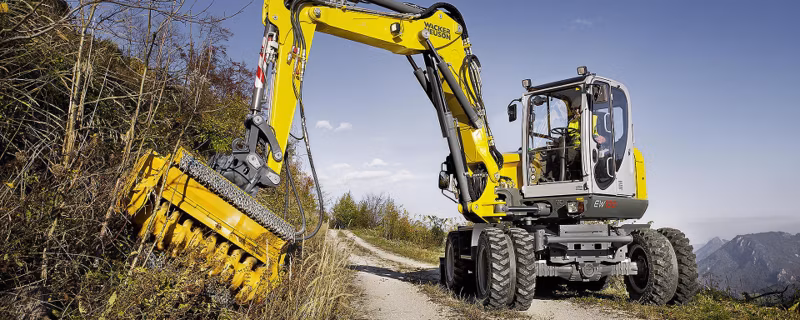

Description
The new EW100 features a more powerful engine, significantly reduced turning radius, increased digging depth and simplified operation. Wheeled excavators save contractors and municipalities money with unparalleled mobility. With its power, reach and mobility, this excavator is the perfect solution for roadside digging and demolition in urban settings. Operators will also appreciate the new easy to use dial control system. Using this automotive-style feature, operators can easily select and save the auxiliary hydraulic flow settings depending on the attachment, eliminating the need for manual adjustments.
Specifications
Manufacturer
Wacker Neuson
Model
EW100
Year
2026
Category
Excavators
Subcategory
Wheeled Excavators
Arm displacement to centre of bucket, left side
33.1 in
Arm displacement to centre of bucket, right side
40.3 in
Axles Front axle
Oscillating steering axle
Axles Rear axle
Rigid steering axle
Biting force max
10,566 lbf
Boom slewing radius - Left
103.9 in
Boom slewing radius - Middle
116.3 in
Boom slewing radius - Right
106.6 in
Breakout force max
11,308 lbf
Digging depth max
169.2 in
Digging depth max min
169.2 in
Digging radius max
308 in
Dump height max
210.5 in
Height
2,989 mm
Height - Dozer blade
20 in
Insertion depth
143.6 in
Insertion height
294.6 in
Lift height - Above ground
19.8 in
Range
299.6 in
Scraping depth - Below ground
5.2 in
Sound level (LwA)
101 dB(A)
Stroke - Above ground
498 mm
Stroke - Below ground
132 mm
Track width
76.5 in
Travel speed
12.4 mph
Travel speed Option
18.6 mph
Turning angle - Boom system to the left
67 °
Turning angle - Boom system to the right
63 °
Turning radius
219.3 in
Width
2,465 mm
Ground clearance
14.2 in
Height
117.7 in
Height - Dozer blade
507 mm
L x W x H
288 x 96.6 x 117.7 in
Length - Track
125.7 in
Operating weight
21,352 - 24,330 lb
Shipping weight min
9,241 kg
Transport length
288 in
Turning radius
5,570 mm
Width
97.1 in
Width - Cab
38.9 in
Width - Chasiss
96.6 in
Width - Dozer blade
97 in
Width - Revolving superstructure
85.6 in
Width - Tires
20.2 in
