Description

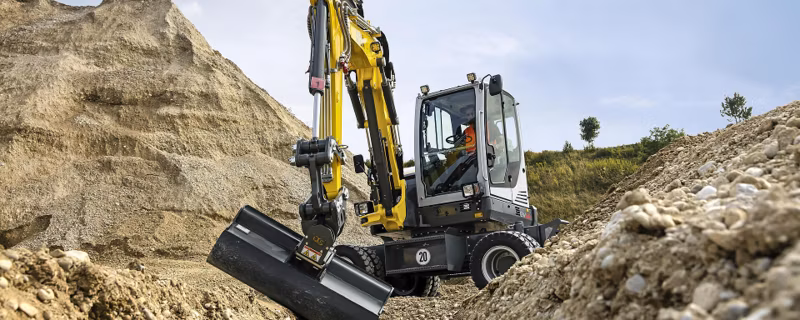

The EW65 offers impressive power and speed with simple operation. Tier 4 Final Perkins engine offers excellent power and low fuel consumption. The unit compact size, speed up to 18.6 mph/30 kph, and mobility make it the ideal machine for a variety of applications that require the excavator to move around the job site or to and from the job site in municipal areas. This excavator saves time and money because it does not need to be transported on a truck.
Specifications
Manufacturer
Wacker Neuson
Model
EW65
Year
2026
Category
Excavators
Subcategory
Wheeled Excavators
Arm displacement to centre of bucket, left side
19.4 in
Arm displacement to centre of bucket, right side
30.2 in
Biting force max
6,924 lbf
Boom slewing radius - Left
76.4 in
Boom slewing radius - Middle
97 in
Boom slewing radius - Right
94.2 in
Breakout force max
11,398 lbf
Digging depth max
150.8 in
Digging depth max - Long Dipperstick
150.8 in
Digging depth max - Standard Dipperstick
139 in
Digging radius max
256.1 in
Digging radius max - Long Dipperstick
6,504 mm
Digging radius max - Standard Dipperstick
244.9 in
Dump height max
172.8 in
Dump height max - Long Dipperstick
172.8 in
Dump height max - Standard Dipperstick
165.6 in
Dumping height
165.6 - 172.8 in
Duty pump
Variable displacement pump and double hydraulic gear pump
Height
2,775 mm
Insertion depth - Long Dipperstick
93 in
Insertion depth - Standard Dipperstick
82.2 in
Insertion height - Long Dipperstick
246.1 in
Insertion height - Standard Dipperstick
238.9 in
Lift height - Above ground
15.6 in
Range - Long Dipperstick
248.7 in
Range - Standard Dipperstick
237.2 in
Rear swivel radius
57.4 in
Scraping depth - Below ground
11.9 in
Sound level (LwA) according to 2000/14/EC
97 dB(A)
Stroke - Above ground
15.6 in
Stroke - Below ground
11.9 in
Superstructure slewing speed
9 rev/min
Tires
7.5-15 14 PR Twin Tires
Track width
11.8 in
Transport length - Long Dipperstick
246.1 in
Transport length - Standard Dipperstick
240.7 in
Travel speed max
18.6 mph
Turning angle
67 °
Width
2,085 mm
Width - Revolving superstructure
76 in
Ground clearance
9.3 in
Height
109.3 in
L x W x H
240.7 x 82.2 x 109.3 in
Length - Track
2,887 mm
Operating weight
14,892 - 17,643 lb
Shipping weight min
6,472 kg
Transport length - Long Dipperstick
6,250 mm
Transport length - Standard Dipperstick
6,114 mm
Width
82.1 in
Width - Cab
39.4 in
Width - Chasiss
82.2 in
Width - Revolving superstructure
1,931 mm
