Description

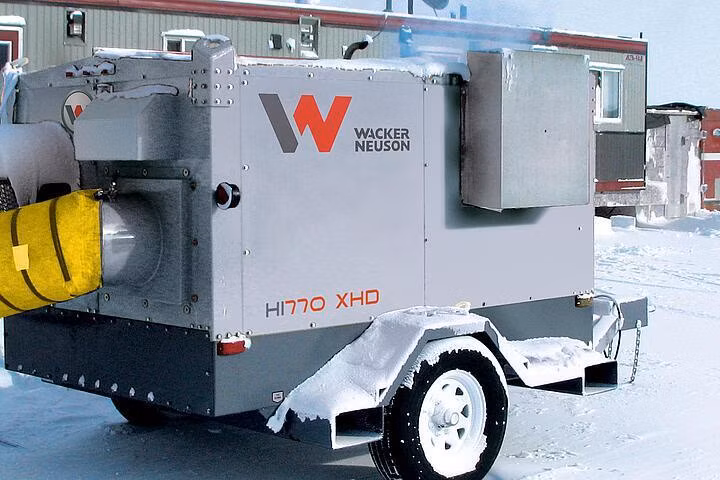

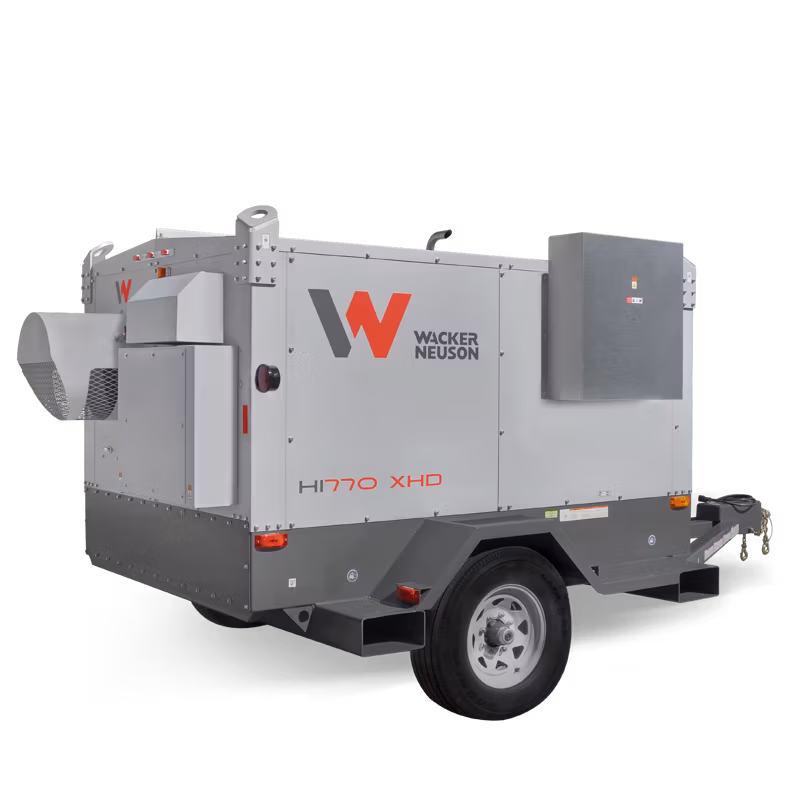

HI770 XHD Indirect Fired Air Heaters: Extreme performance for extreme environments. The environmentally friendly Triple Threat spill containment feature assures no diesel fuel, engine oil or coolant will contaminate the site and our optional gas detection system will safely shut down the heater in the presence of hydrocarbons. Machines are CSA certified.
Specifications
Manufacturer
Wacker Neuson
Model
HI770XHD (5100049925)
Year
2026
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Nominal frequency
60 Hz
Phase
3 ~
Air flow rate
3,999.5 cfm
Temperature difference
271.4 - 32 °F
Blower Type
Centrifugal blower
Static Pressure (Blower)
996 Pa
Efficiency (Diesel)
75%
Drying Size
5,708 cfm
Sizing-Air Heat
16,039.9 cfm
Gross Axle Weight Rating
6,999.7 lb
Operating weight
7,542 lb
Dry Weight
5,699 lb
Gross vehicular weight
7,542 lb
Duct Length max one, 2x12" Supply Adapter
75.1 Foot
Duct Length max two, 1x16" Supply Adapter
149.9 Foot
Duct Length max, 1x20" Supply Adapter
200.1 Foot
Duct Length max, 1x20" Return Adapter
200.1 Foot
Output frequency
60 Hz
Nominal Engine speed
1,800 1/min
Fuel consumption
0.8 GPH US
Operating Engine speed
1,800 1/min
Run Time (75 % Prime Load)
57 hrs
Run Time with genset
40 h
Fuel Tank capacity
256 gal US
Utilizable tank capacity
235.4 gal US
Fuel Consumption no genset
5.5 GPH US
Run Time (100 %)
43 hrs
Tongue Weight, min
809.1 lb
Tongue Weight, max
970 lb
Tires
LT235/85R16 G
Air outlet adapter
2 x 305.0 mm
Air inlet size
1 x 508.0 mm
Length
187 "
Width
94.1 "
Height
88.2 "
Cylinder capacity
67.1 Inch3
Length for shipping
187 "
Width for shipping
94.1 "
Height for shipping
88.2 "
