Description

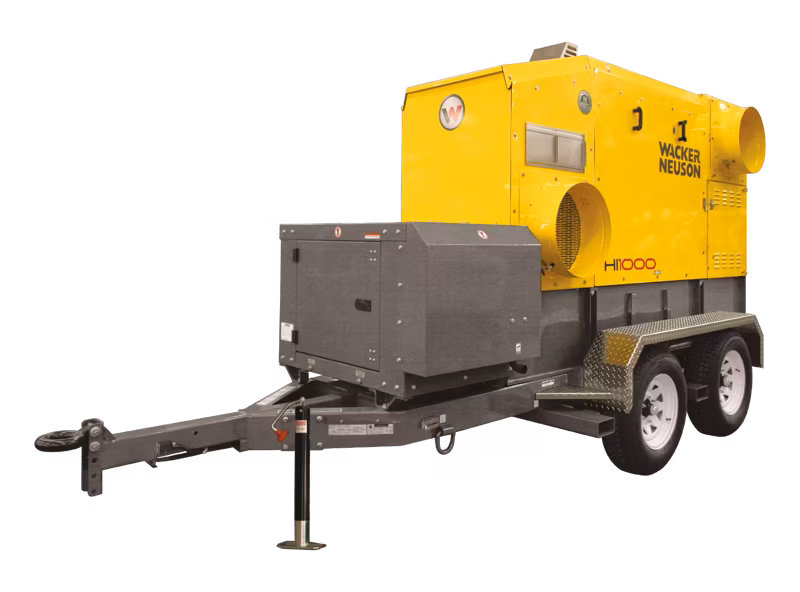

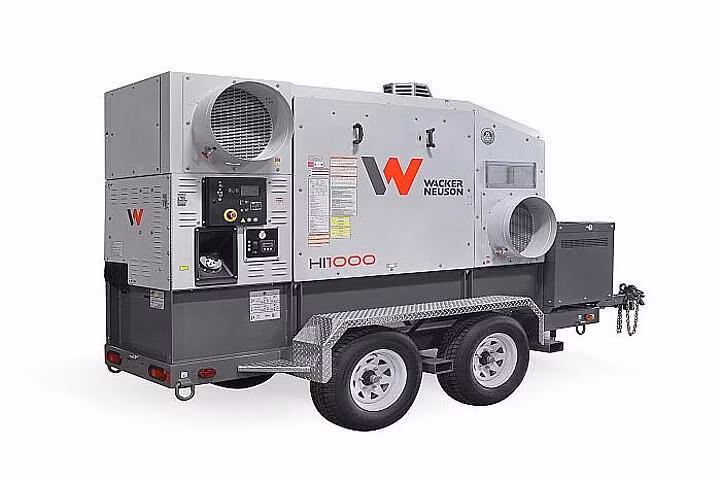

HI1000 Indirect Fired Air Heaters: large air heater for the harshest applications The HI1000 is Wacker Neuson's highest capacity indirect fired air heater. Available with or without a fuel tank. For remote applications, our DGM version includes a custom extended service genset. All versions are ETL certified.
Specifications
Manufacturer
Wacker Neuson
Model
HI1000DGM (5100049913)
Year
2026
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Nominal frequency
60 Hz
Air flow rate
7,569.2 cfm
Temperature difference
134.6 - 32 °F
Heater, Net output (Diesel)
202 KW
Blower Type
Centrifugal blower
Static Pressure (Blower)
498 Pa
Efficiency (Diesel)
83 %
Gross Axle Weight Rating
3,000.5 lb
Operating weight
5,150 lb
Dry Weight
4,124.9 lb
Gross vehicular weight
6,001 lb
Output frequency
60 Hz
Phase
1 ~1 ~
Generator drive
direct
Fuel consumption
0.6 GPH US
Oil filling max
1.3 gal US
Temperature monitor
digital
Cooling fluid volume
3.3 qt US
Run Time (75 % Prime Load)
27.5 hrs
Fuel Tank capacity
190 gal US
Utilizable tank capacity
172 gal US
Fuel Consumption no genset
6.2 GPH US
Fuel Consumption with genset
6.4 GPH US
Run Time (100 %)
37.5 hrs
Brake
Surge brake
Axle
Tandem Axle
Hitch Type
Pintle
Tongue Weight, min
418.9 lb
Tongue Weight, max
718.7 lb
Tires
ST225/75D
Air outlet adapter
3 x 304.8 mm
Air inlet size
2 x 508.0 mm
Length
197.2 "
Width
61 "
Height
100.7 "
Duct Length max one, 3x12" Supply Adapter
98.4 Foot
Duct Length max two ., 2x16" Supply Adapter
98.4 Foot
Duct Length max, 1x20" Supply Adapter
200.1 Foot
Duct Length max, 1x20" Return Adapter
49.2 Foot
Cylinder capacity
0.1 Inch3
Length for shipping
198.7 "
Width for shipping
61 "
Height for shipping
101.7 "
