Description

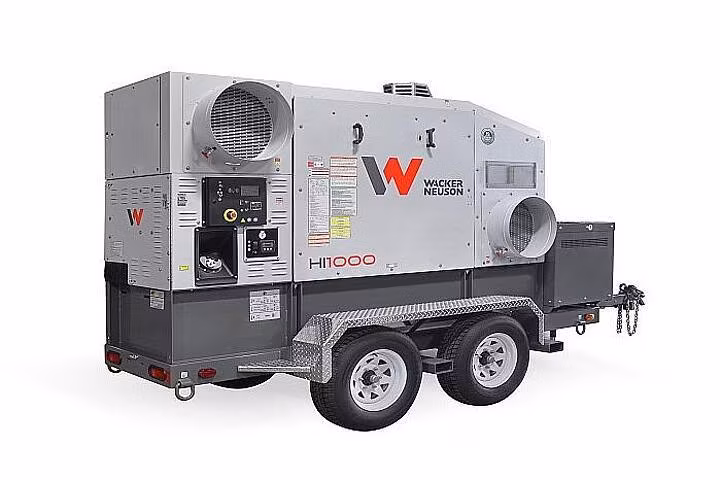

HI1000 Indirect Fired Air Heaters: large air heater for the harshest applications. The HI1000 is Wacker Neuson's highest capacity indirect fired air heater. Available with or without a fuel tank. For remote applications, our DGM version includes a custom extended service genset. All versions are ETL certified.
Specifications
Manufacturer
Wacker Neuson
Model
HI1000DGM (5100049919)
Year
2026
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Length
197.2 in
Width
61.0 in
Height
100.7 in
Duct Length max, 3x12" Supply
98.4 Foot
Duct Length max, 2x16" Supply
98.4 Foot
Duct Length max, 1x20" Supply
200.1 Foot
Duct Length max, 1x20" Return
49.2 Foot
Length for shipping
198.7 in
Width for shipping
61.0 in
Height for shipping
101.7 in
Gross Axle Weight Rating
3,000.5 lb
Operating weight
5,150.0 lb
Dry Weight
4,124.9 lb
Gross vehicular weight
6,001.0 lb
Nominal current
30.00 A
Nominal voltage
115.0 V
Nominal frequency
60.0 Hz
Phase
1.0 ~
Insulation class
H
Output current
1~ 141.7 A
Output voltage
240.0 V
Output frequency
60.0 Hz
Nominal speed
1,800.0 1/min
Generator drive
direct
Sound level LpA
77.6 dB(A)
Circuit Breaker Amperage AC
15.0 A
Temperature monitor
digital
Cooling fluid volume
3.3 qt US
Run Time (75 % Prime Load)
27.5 hrs
Fuel Tank capacity
190.0 gal US
Utilizable tank capacity
172.0 gal US
Fuel Consumption no genset
6.2 GPH US
Fuel Consumption with genset
6.4 GPH US
Run Time (100 %)
37.5 hrs
Tongue Weight, max
718.7 lb
Tires
ST225/75D
Brake
Surge brake
Axle
Tandem Axle
Hitch Type
Pintle
Tongue Weight, min
418.9 lb
Cooling
Water-cooling
Engine type
Diesel engine
Cylinder
3.0
Cylinder capacity
0.1 Inch3
Fuel consumption
0.6 GPH US
Oil filling max
1.3 gal US
Power rating max
11.7 hp
Exhaust-gas limit
IIIB/Tier IV Final
Engine Manufacturer
Kubota
