Description

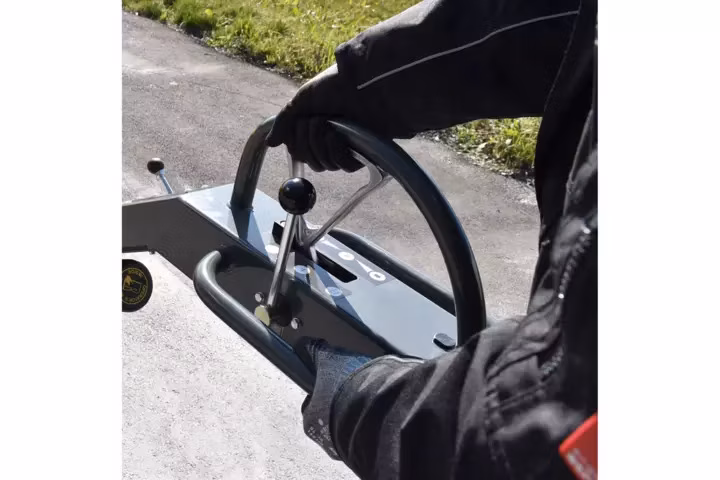

RD7 Walk-behind roller: Achieving the perfect work results with ease The RD7 walk-behind dual-vibration roller delivers excellent performance in both soil and asphalt compaction - thanks to the optimally integrated frequency and two vibration stages. As a result, the roller is characterized by its ergonomically arranged operator controls, such as, the engine rpm adjuster attached to the center pole. Even the easy, tool-free access to all service points makes the RD7 a simple and economical solution for every construction site.
Specifications
Manufacturer
Wacker Neuson
Model
RD7Afb HRC
Year
2026
Category
Compactors
Subcategory
Walk-Behind Roller
Thickness Drum Sheet
0.4 "
Drum diameter
15.7 "
Side clearance left
8.9 "
Side clearance right
8.9 "
Curb clearance right
13.8 "
Curb clearance left
13.8 "
Drum width
25.6 "
Wheelbase
19.7 "
Engine
Honda GX390UT2X-SX-Q4-OH
Cylinder
1
Engine type
Gasoline engine
Engine Manufacturer
Honda
Hydraulic fluid volume
5.3 qt US
Hydraulic fluid type
ISO VG 46
Cylinder capacity
23.7 Inch3
Fuel consumption
0.5 GPH US
Tank capacity
1.6 gal US
Effective power
8.6 PS
Operating power
7.5 PS
Fuel
Gasoline
Standard (Effective power)
SAE J1349
Standard (Operating power)
SAE J1349
Area capacity
31,161.8 ft²/h
Gradeability
0.26
Gradeability max (without vibration)
0.33
Operating speed [km/h]
4.3 km/h
Linear force dynamic front
439.4 000014
Linear force dynamic rear
439.4 000014
Total Linear Force/Drum (front)
574.3 000014
Total Linear Force/Drum (rear)
574.3 000014
Travel speed
2.8 m/H
Centrifugal force Level I
3,034.9 lbf
Centrifugal force Level II
5,058.2 lbf
Linear force static (front)
134.9 000014
Exciter Type
Hydraulic
Travel speed (reverse)
1.6 m/H
Operating weight
1,521.2 lb
Dry Weight
1,455.1 lb
Weight Drum (static) Front
310.9 lb
Weight Drum (static) Rear
310.9 lb
Tank capacity one
0.8 gal US
Water tank capacity
15.9 gal US
Exciter oil type
ISO VG 220
Lubricant type for non-drive side bearing
KP2P-30 (DIN 51502)
HAV summation (average value)
8.2 ft/s²
Brake
Surge brake
