Description

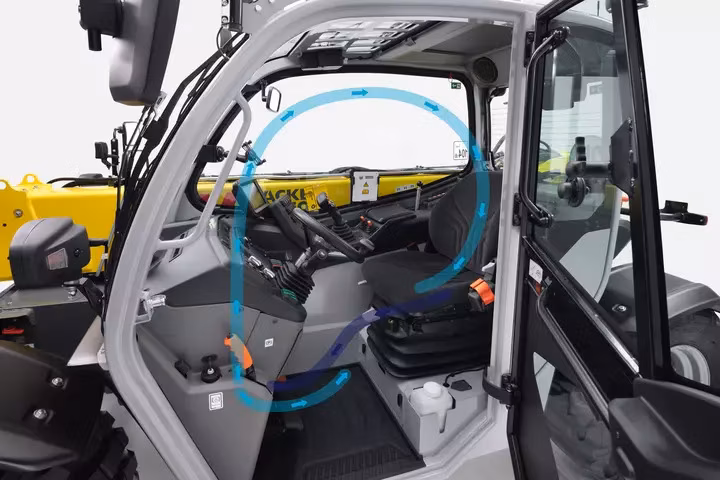

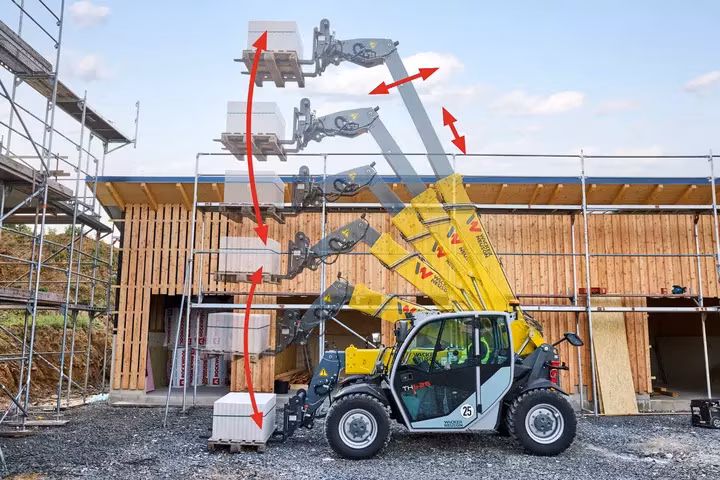

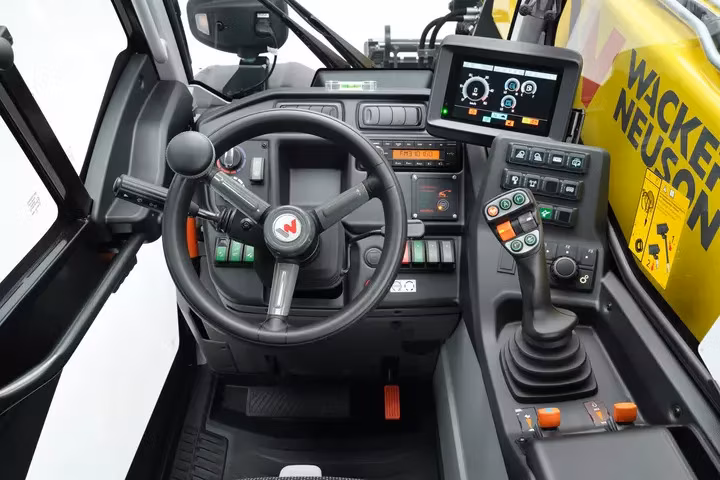

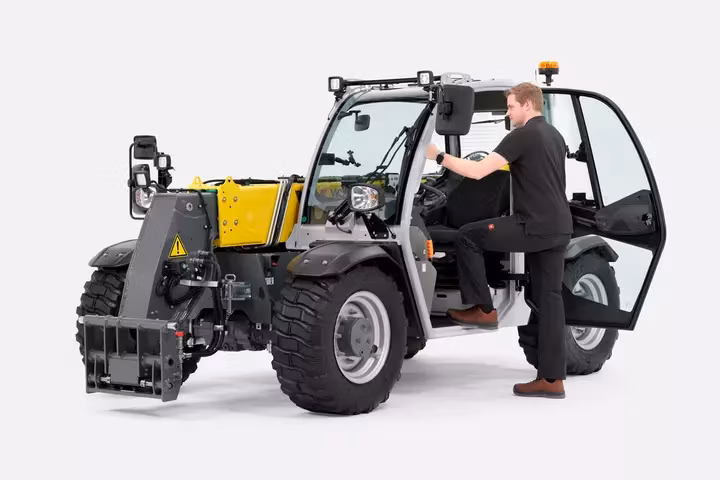

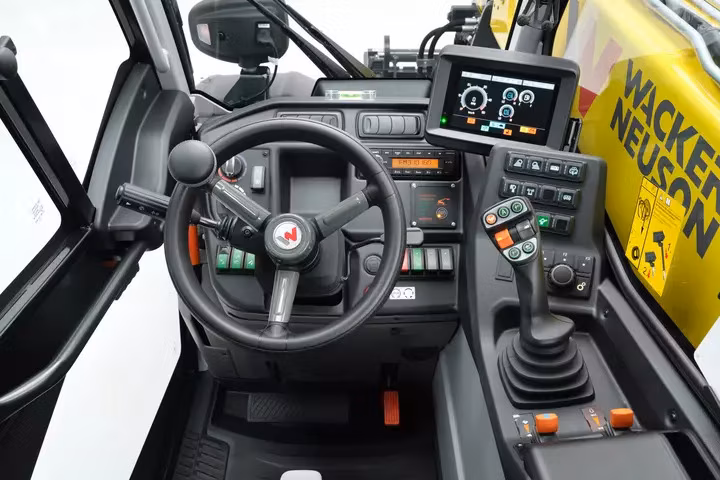

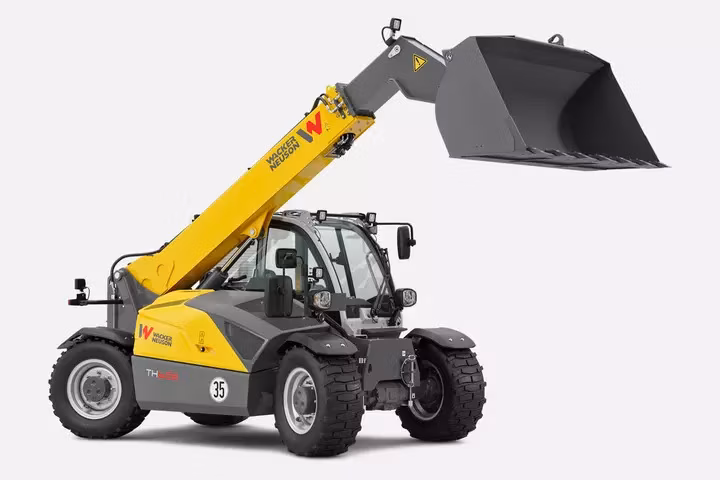

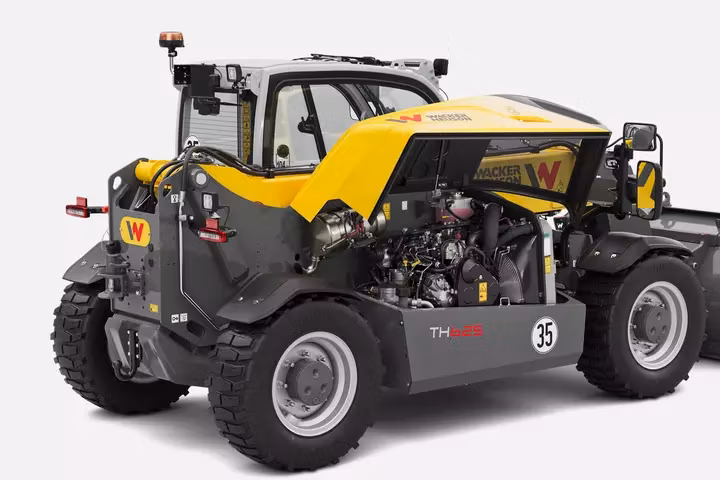

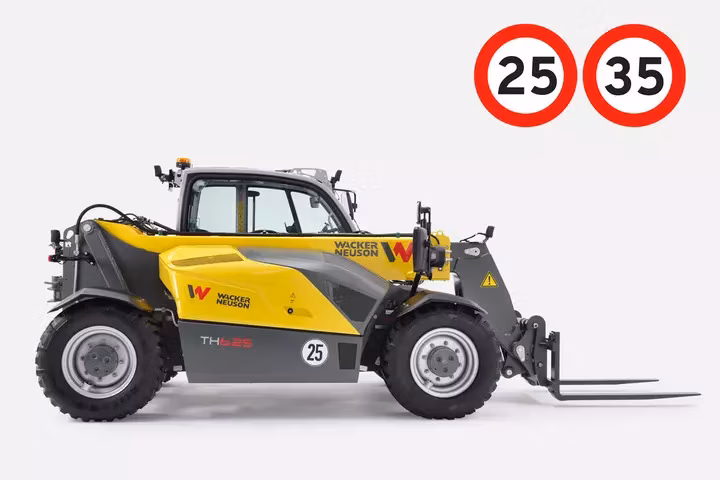

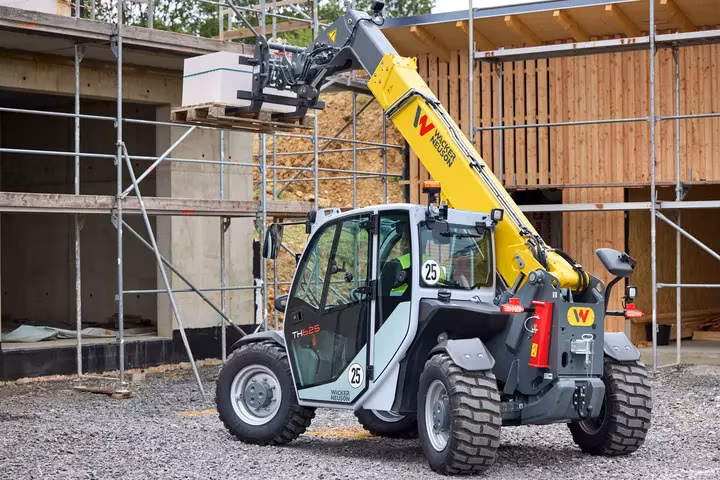

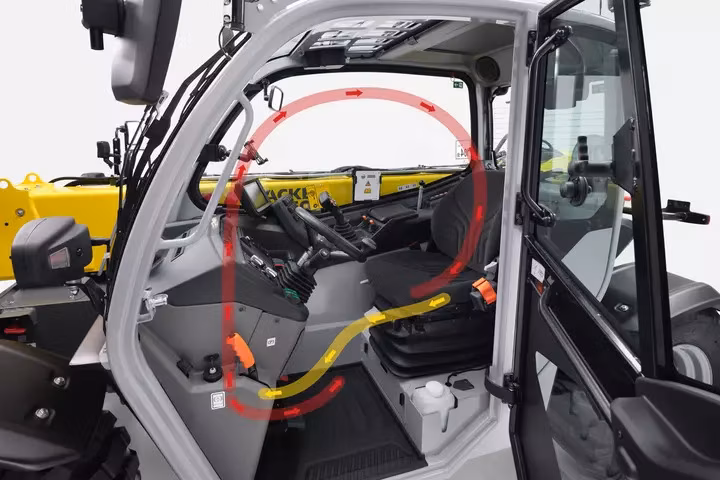

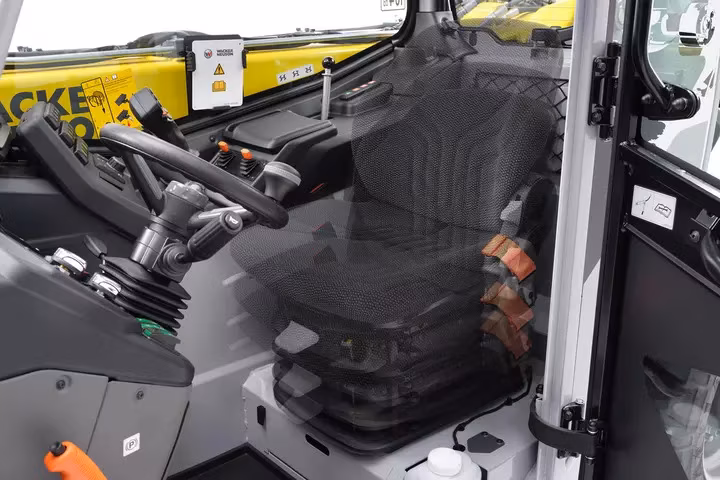

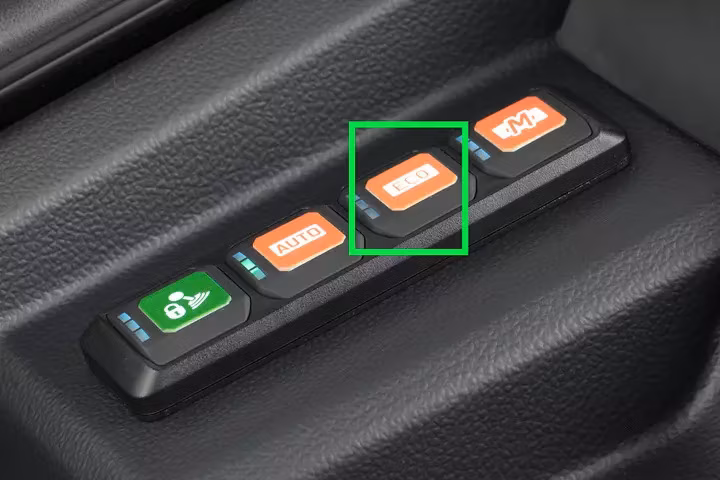

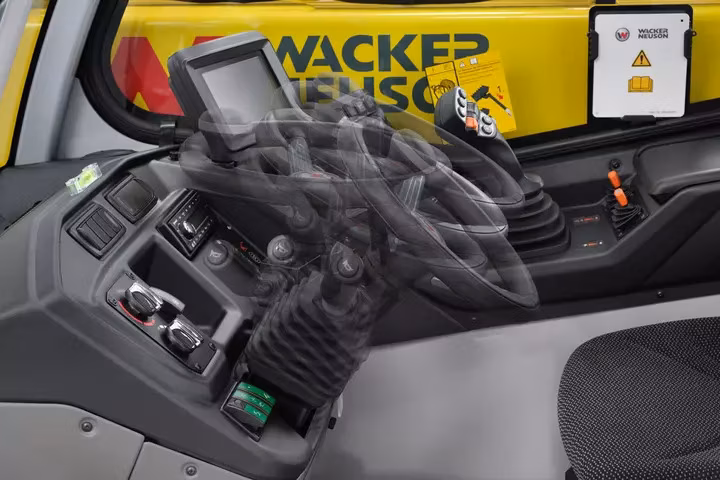

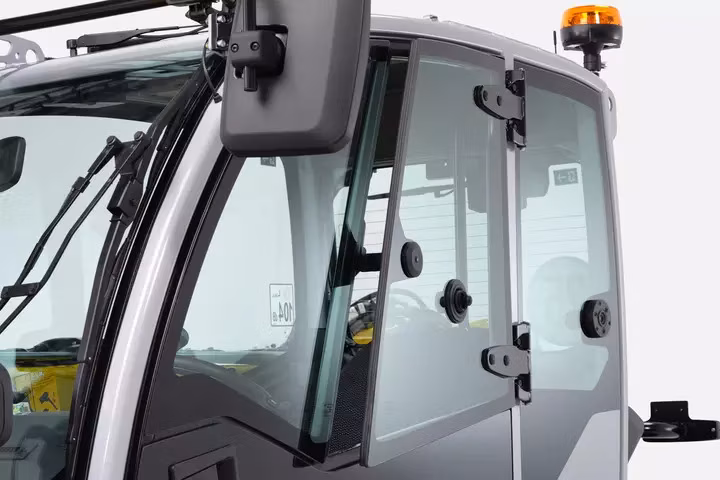

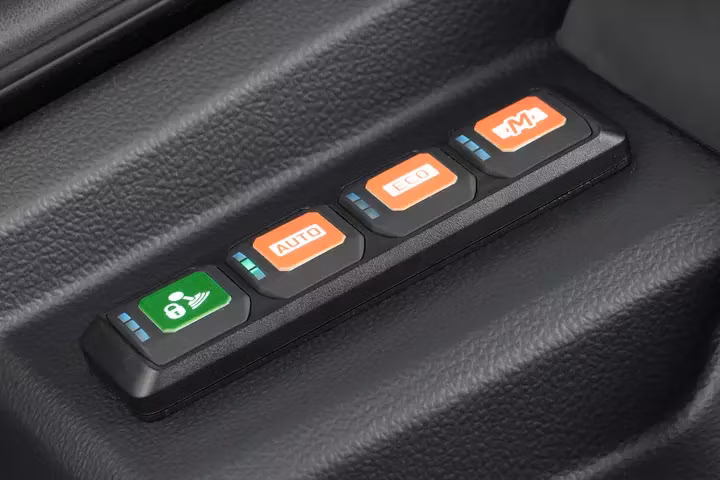

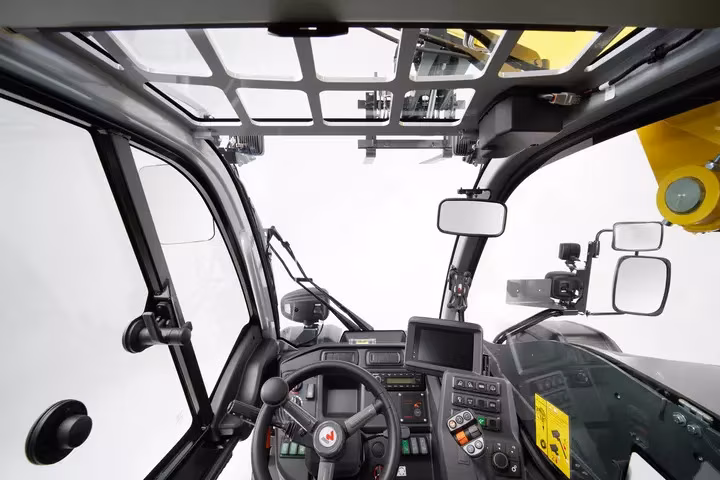

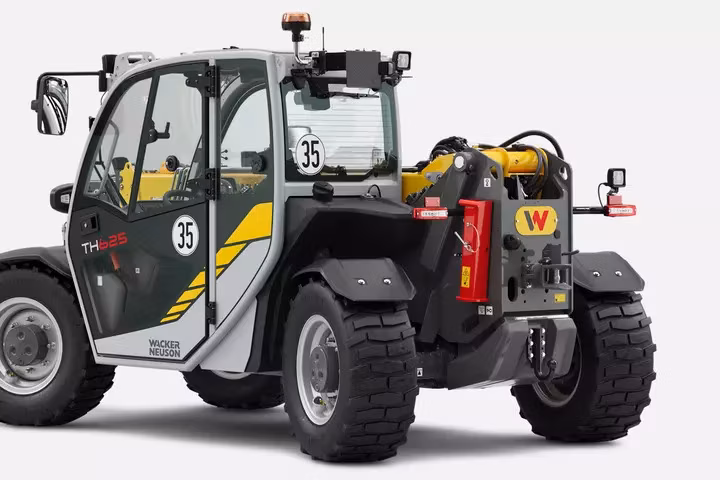

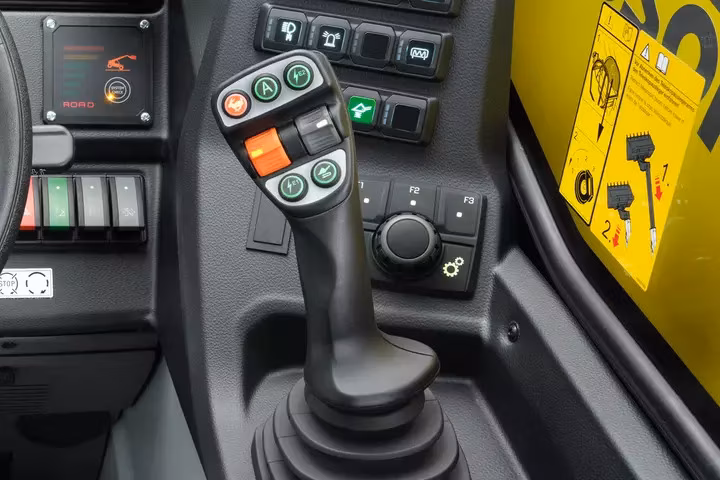

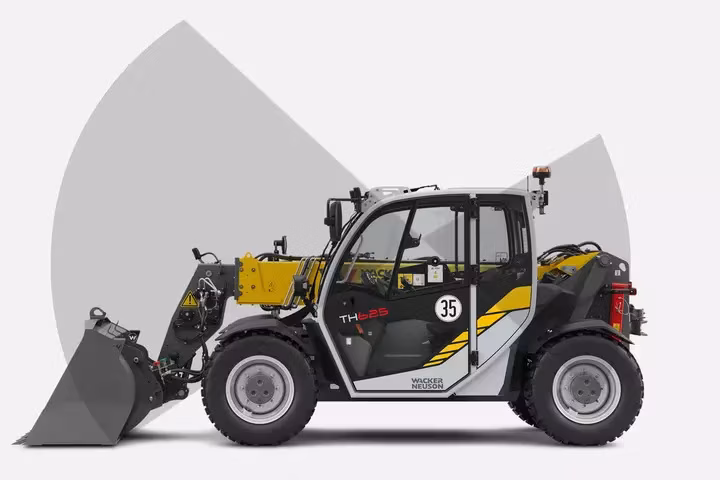

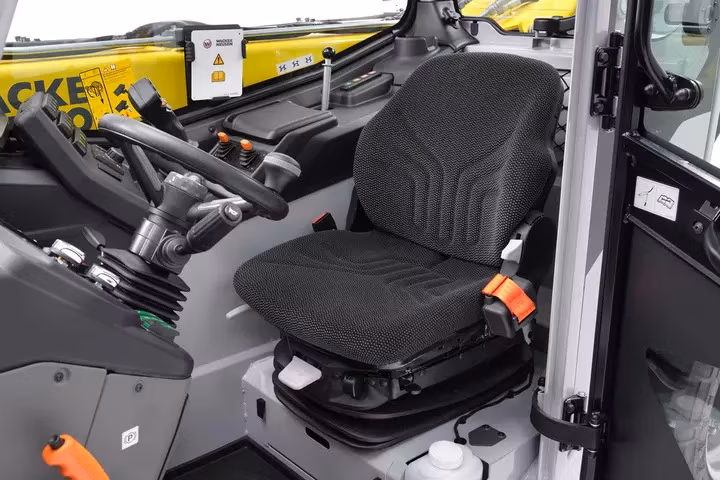

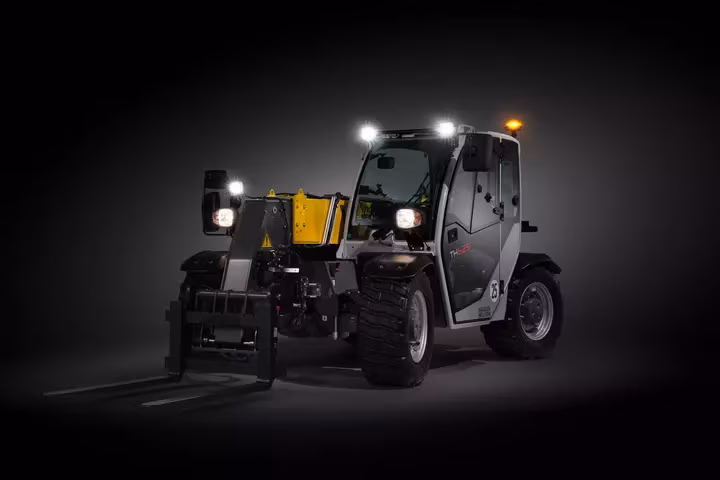

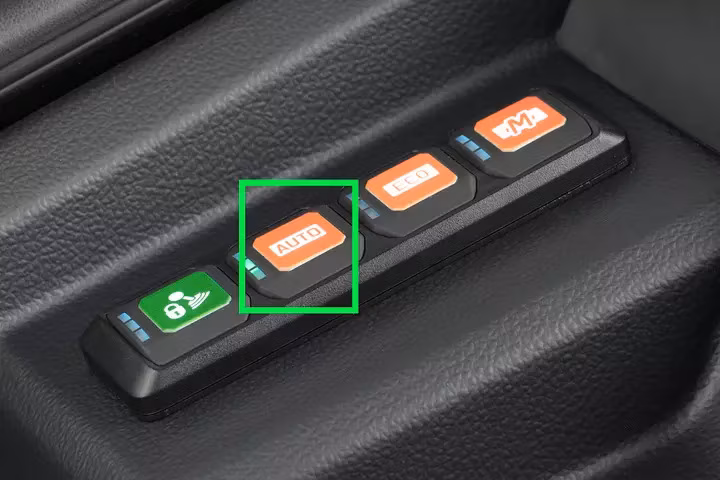

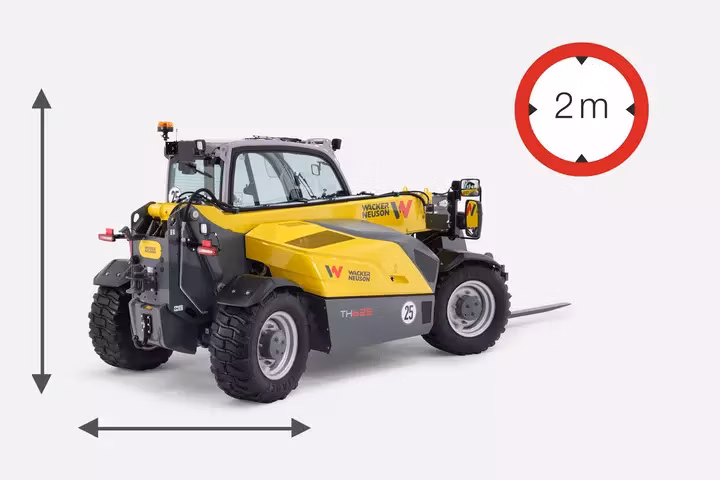

TH625 Telehandlers: Cost-efficient and powerful The TH625 is the compact power pack with a lifting height of 236 in and a payload of 5.512 lb. The following features characterize the TH625 telehandler: Comfortable cab with excellent ergonomics and all-round visibility, electronically controlled travel drive with various travel modes, robust telescopic arm with excellent view of the attachment.
Specifications
Manufacturer
Wacker Neuson
Model
TH625
Year
2026
Category
Telehandlers
Subcategory
Telehandlers
Total Length
183.7 in
Total Length Without Bucket
153.0 in
Bucket Pivot Point (To Center Of Axle)
28.3 in
Wheel Base
96.4 in
Rear Overhang
19.2 in
Height With Cab
78.5 in
Seat Height
37.7 in
Total Working Height
260.6 in
Bucket Pivot Point (Max Lift Height)
241.1 in
Load-Over Height Telescopic Arm Extended
222.1 in
Load-Over Height Telescopic Arm Retracted
147.5 in
Dumping Height Telescopic Arm Extended
204.8 in
Dumping Height Telescopic Arm Retracted
130.2 in
Reach (At M)
17.9 in
Digging Depth
4.8 in
Total Width
74.8 in
Track Width
65.4 in
Ground Clearance
11.2 in
Maximum Radius
170.7 in
Radius On Outer Edge
131.8 in
Inner Radius
45.7 in
Drive Hydraulics Working Pressure (Max)
6,817 psi
Work Hydraulics Discharge Volume (Max)
19.81 gpm
Work Hydraulics Working Pressure (Max)
3,626 psi
Lifting Cylinder
1
Tipping Cylinder
1

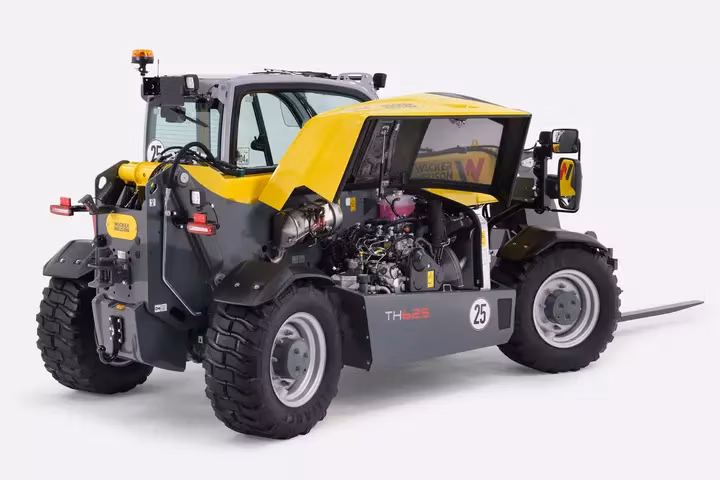

Engine Manufacturer
Perkins
Motor Type
404J-E22T
Number Of Cylinders
4
Drive Output
60 HP
Max RPM
2,400 rpm
Maximum Torque
163.7 ft.lbs
Cylinder Capacity
135.3 in³
Type Of Coolant
Water
Exhaust Standard Level
V
Exhaust Aftertreatment
DOC/DPF
Operating Voltage
12 V
Battery
77 Ah
Alternator
120 A
Average Sound Power Level LwA (Cabin)
94 dB(A)
Guaranteed Sound Power Level LwA (Cabin)
97 dB(A)
Specified Sound Pressure Level LpA (Cabin)
70 dB(A)
Payload (Max)
5,512 lb
Operating Weight
10,252 lb
Tank Capacity For Fuel
25.1 US gal
Tank Capacity For Hydraulic Oil
7.66 US gal
Type Of Drive
Electronically controlled
Drive Unit
Hydrostatic via transfer gearbox and universal joint shaft
Speed Levels
2
Axle
PAL 1660
Travel Speed Standard
0-12.43 mph
Travel Speed Option 1
0-15.53 mph
Travel Speed Option 2
0-21.75 mph
Operating Brake
Disc brake on front axle acting on rear axle via universal joint shaft
Parking Brake
Disc brake - actuation on front axle via handbrake lever, acting on rear axle via universal joint shaft
Differential Lock
100 % front axle + rear axle

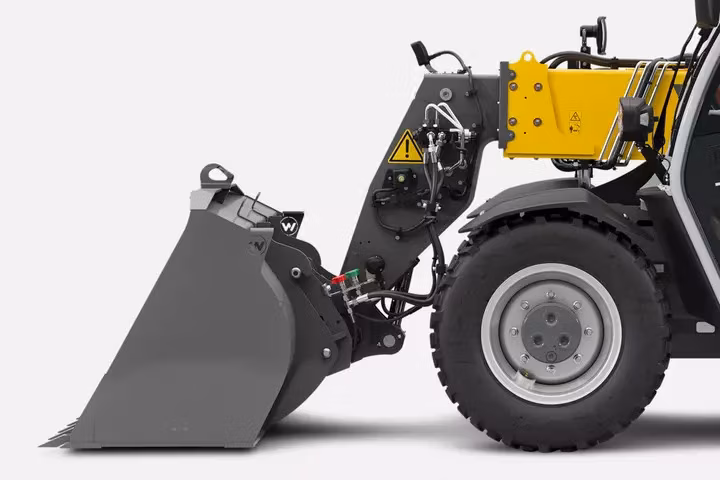

Quick Change System
Mechanical (hydraulically activated)
Steering Type

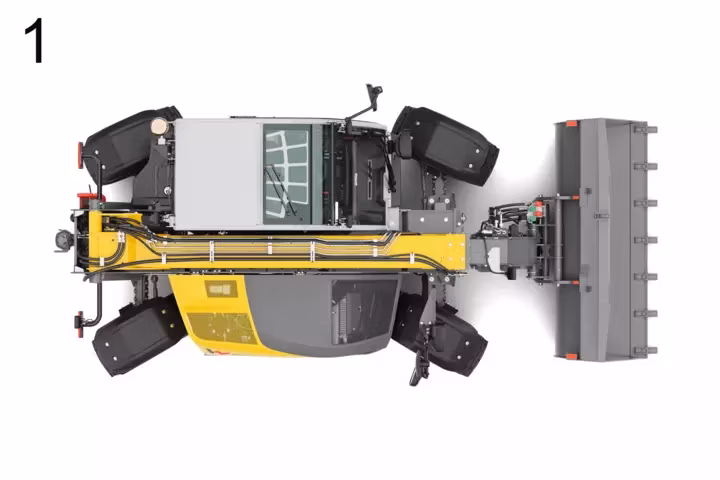

Hydrostatic all-wheel steering with end position synchronization
Steering Cylinder
2
Steering Angle Max
2x38 degree
Oscillating Angle Of Rear Axle
± 8 degree
Rollback Angle At Max Lift Height
34°
Dumping Angle
30°
Rollback Angle On Ground
38°
