Description

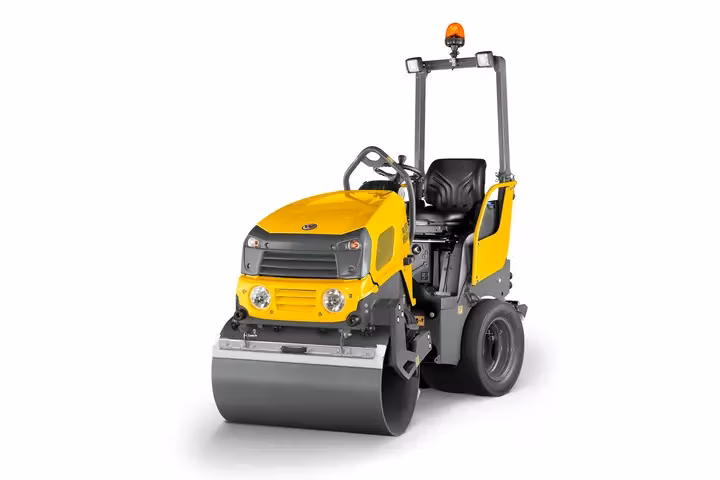

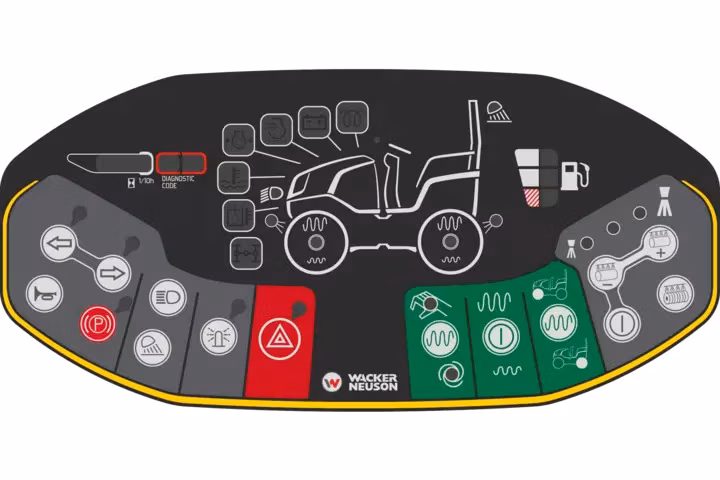

RC50 Drum rollers: Powerful compaction on any terrain Perfect view in all directions makes work with the Wacker Neuson single drum soil compactors safe and comfortable. Because of the compact design, the operator always has the working area and the drums in view from his seat. With a large departure angle and outstanding gradeability, it is easy to maneuver even on uneven terrain. The simple operation via an intuitively-designed display and joystick also make working easier and ensure that the operator is familiar with the machine in no time.
Specifications
Manufacturer
Wacker Neuson
Model
RC50 (5100064255)
Year
2026
Category
Compaction Roller
Subcategory
Drum Rollers
Effective power
74.3 hp
Nominal Engine speed
2,200 1/min
Engine Designation
V3307-CR-TE5B
Static linear load (front)
1,119.66 lb/in
Speed working gear
0 - 3.7 m/H
Speed transportation gear
0 - 7.8 m/H
Gradeability
54 %
Gradeability max (without vibration)
60 %
Linear load with vibration I (front)
38,565.76 lb/in
Compaction force Level I (front)
20,907 lbf
Compaction force I (rear)
5,395 lbf
French classific, data/class
24,14/VM1
Vibration frequency Level I (front)
30 Hz
Centrifugal force Level I (front)
14,837 lbf
Static Cross Slope
50 °
Operating weight, max
13,536.39 lb
Gross vehicular weight
13,536.4 lb
Empty weight with cabin
11,177.4 lb
Slope angle (front)
44 °
Slope angle (rear)
35 °
Operating weight with cabin
11,453 lb
Cylinder capacity
203.3 Inch3
Standard (Effective power)
ISO 14396
Starter battery Voltage
12 V
Battery capacity (nom value)
152 Ah
Fuel Tank capacity
32.5 gal US
Exhaust gas limit values
US TIER 4
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
HC + NOx (NRTC)
3 g/KWh
Amplitude Level I (front)
0.0618 "
Width with cabin
2,018 mm
Drum width (front)
53.9 "
Drum diameter (front)
39.4 "
Drum thickness (front)
0.8 "
Width without cabin
1,514 mm
Length
159.1 "
Curb clearance (left)
13 "
Curb clearance (right)
13 "
Total height with cabin
111.7 "
Curb clearance right
2.8 "
Curb clearance left
2.8 "
Operating width
53.9 "
Ground clearance Middle
10.9 "
Turning radius inside
132.9 "
Wheelbase
85.4 "
Turning radius outside
186.8 "
