Description

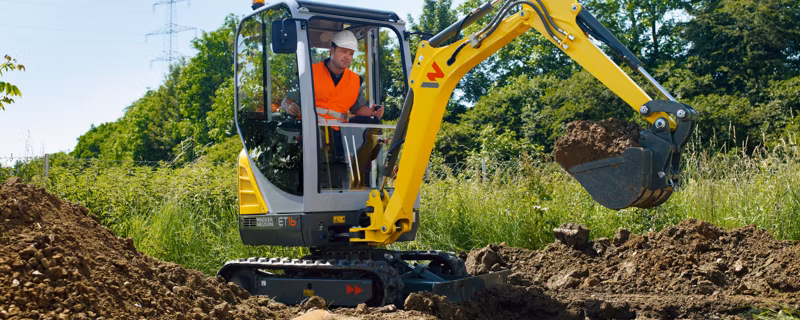

The 2-tonne, ET20 excavator offers excellent performance and comfort in a compact package. The ET is a productive and versatile digging machine with a maximum digging depth of 8' 10"and a strong breakout force of 4226 lbs The Tier 4 Final engine delivers 17.2 net hp at 2,200 RPM for powerful digging, fast cycle times and quiet operation. The ET 20 is also designed for comfortable operation with a large operating station, excellent visibility and a unique double-door cab design.
Specifications
Manufacturer
Wacker Neuson
Model
ET20
Year
2026
Category
Excavators
Subcategory
Tracked Conventional Tail Excavators
Arm displacement to centre of bucket, left side
14.1 in
Arm displacement to centre of bucket, right side
20.3 in
Biting force max
2,810 lbf
Boom slewing radius - Left
53.4 in
Boom slewing radius - Left Lock
57.1 in
Boom slewing radius - Middle
65.6 in
Boom slewing radius - Right
62.3 in
Breakout force max max, nach ISO 6015
4,226 lbf
Cabin - specified sound pressure level LpA acc to ISO 6394
75.8 dB(A) LpA
Chain width
9.8 in
Digging depth max
105.6 in
Digging depth max - Long Dipperstick
105.6 in
Digging depth max - Standard Dipperstick
97.8 in
Digging radius max
170 in
Digging radius max - Long Dipperstick
4,317 mm
Digging radius max - Standard Dipperstick
162.6 in
Dump height max - Long Dipperstick
111.7 in
Dump height max - Standard Dipperstick
106.8 in
Dumping height
106.8 - 111.7 in
Duty pump
Double variable pump with 2 gear pumps
Height
2,295 mm
Height - Dozer blade
9.1 in
Insertion depth - Long Dipperstick
72.6 in
Insertion depth - Standard Dipperstick
65.4 in
Insertion height - Long Dipperstick
155.9 in
Insertion height - Standard Dipperstick
151 in
Lift height - Above ground
8.5 in
Operating pressure Slewing gear
2,176 psi
Range - Long Dipperstick
166.3 in
Range - Standard Dipperstick
158.7 in
Rear swivel radius
46 in
Scraping depth
14.3 in
Scraping depth - Below ground
11.7 in
Sound level (LwA) acc to 2000/14/EC
93 dB(A)
RPM / speed Superstructure
10 rpm
Stroke - Above ground
8.7 in
Stroke - Below ground
11.8 in
Travel speed max
2.5 mph
Turning angle - Boom system to the left
77 °
Turning angle - Boom system to the left lock
64 °
Turning angle - Boom system to the right
48 °
Width
990 mm
Width - Dozer blade extended
51.2 in
Width - Dozer blade retracted
39 in
Width - Undercarriage extended
51.2 in
Ground clearance
6.7 in
Height
90.4 in
Height - Dozer blade
230 mm
L x W x H min
159.4 x 39 x 90.4 in
Length - Track
1,708 mm
Operating weight
4,420 - 5,125 lb
Shipping weight min
1,862 kg
Transport length
159.4 in
Width
39 in
Width - Dozer blade extended
1,300 mm
Width - Dozer blade retracted
990 mm
Width - Undercarriage extended
1,300 mm
Width - Undercarriage retracted
39 in
