Description

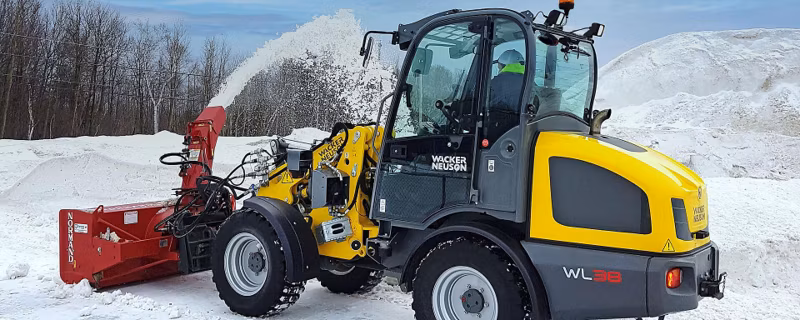

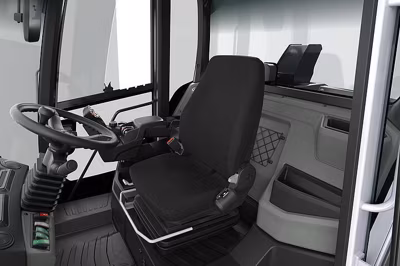

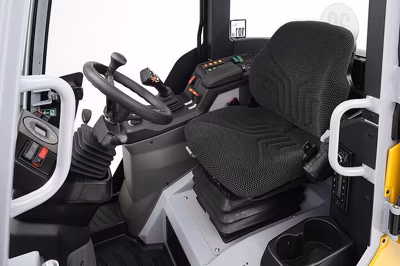

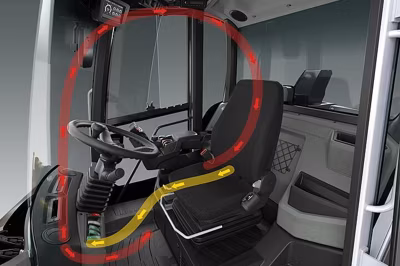

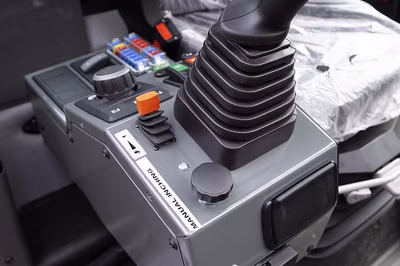

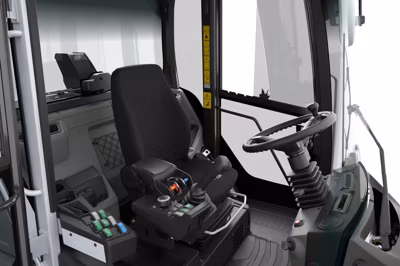

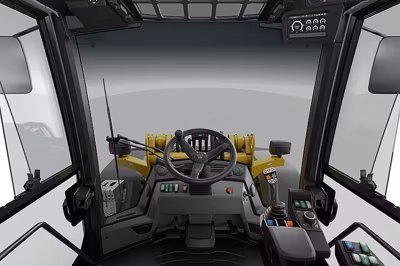

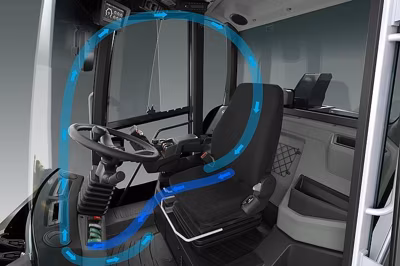

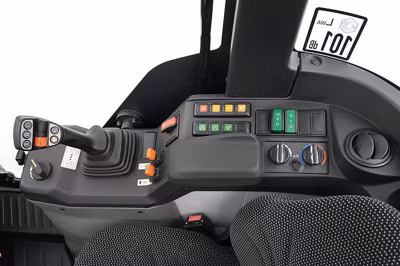

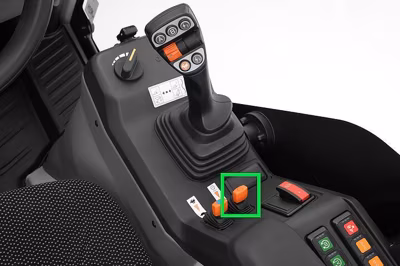

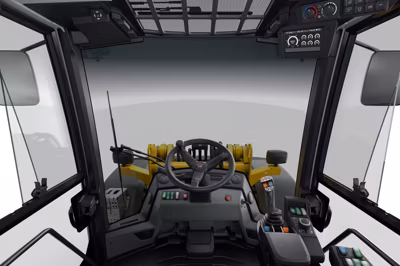

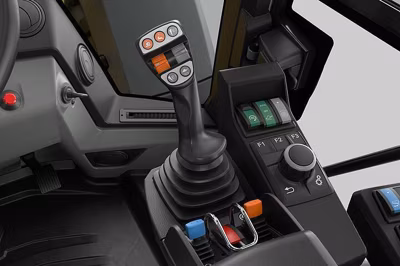

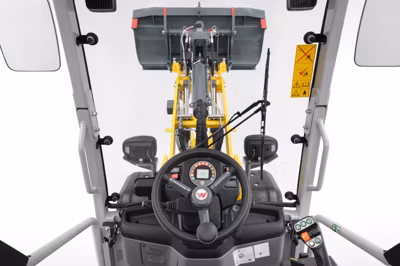

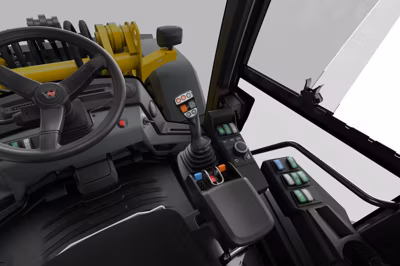

The extremely compact yet powerful WL 38 wheel loader is an excellent choice for any jobsite. The WL 38 is equipped with a 74-hp turbo charged Deutz Tier 4 Final diesel engine allowing the machine to achieve top speeds of 19 mph. With a standard auxiliary hydraulic flow of 18 gpm and high flow of 33 gpm, this is the perfect machine for a variety of jobs. The operator's station is ergonomically laid out for the comfort and convenience of the operator. Operating elements including a multifunctional single lever control and an additional lever for the third control circuit are conveniently arranged next to the driver's seat for easy operation.
Specifications
Manufacturer
Wacker Neuson
Model
WL38
Year
2026
Category
Loaders
Subcategory
Articulated Wheel Loaders
Average sound power level LwA
99.3 dB(A)

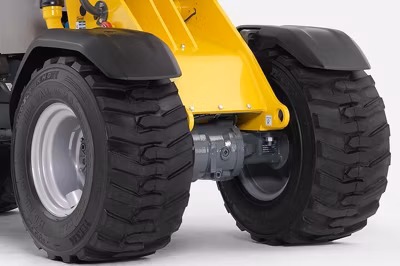

Axles
PA 1200
Breakout force maximum
9,280 lbf
Bucket capacity Standard bucket*
0.785 yd³
Bucket pivot point to axle center
26.6 in
Bucket rollback at ground level
41 °
Bucket rollback at max stroke height
43 °
Coolant type
Water
Drivers cab
Cabin
Dump angle maximum
42 °
Dump height max
93.7 in
Guaranteed sound power level LwA
101 dB(A)
Inside turning radius
64.6 in
Lifting force maximum
4,850 lb
Operating voltage
12 V
Overhead loading height
113.9 in
Radius at outer edge
130.6 in
Radius maximum
143.8 in
Range at M
6.1 in
Rear overhang
59.7 in
Scraping depth
4.7 in
Seat height
47.4 in
Specified sound pressure level LpA
78 dB(A)
Speed Level
2
Speed (optional)
0-28 km/h
Speed (standard)
0-20 km/h

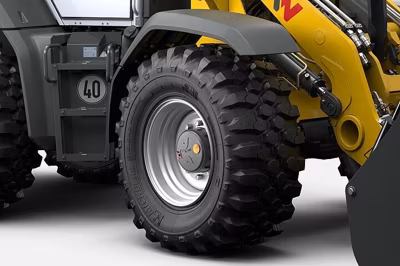

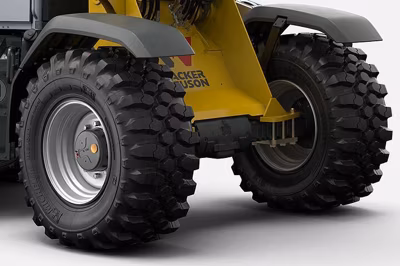

Standard tires
15/55-18 EM ET 0
Stroke height max - bucket pivot point
3,251 mm

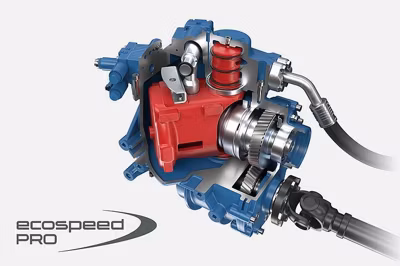

Traction drive
Hydrostatic with universal joint shaft
Ground clearance
12.3 in
Height with cab
99 in
Operating weight
9,259 lb
Overall length
202.3 in
Overall length without bucket
168.5 in
Overall width
1,570 mm
Rear overhang
1,516 mm
Total operating height
157.8 in
Wheelbase
80.5 in
