Description

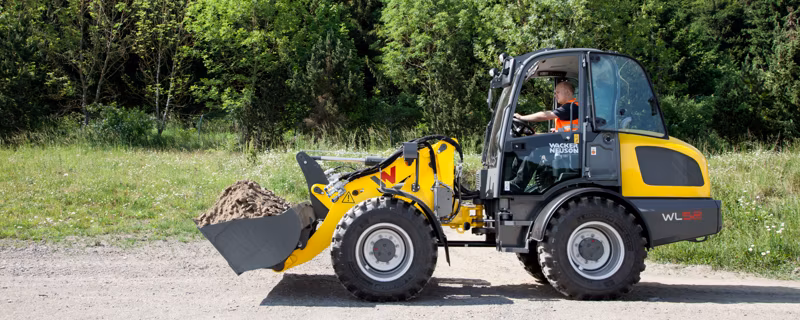

The WL 52 articulated wheel loader is the ideal machine for a variety of jobs. It is equipped with a 74-HP turbo charged Deutz T4F diesel engine. With standard auxiliary hydraulic flow of 18 gpm and high flow of 33 gpm (optional) allows for operation of high performance attachments. With travel speeds up to 19 mph, getting around the jobsite is extremely efficient. The operator's station is ergonomically laid out for the comfort and convenience of the operator, reducing fatigue and increasing productivity. Operating elements including a multifunctional single lever control and an additional lever for the third control circuit, are conveniently arranged next to the driver's seat for easy operation.
Specifications
Manufacturer
Wacker Neuson
Model
WL52
Year
2026
Category
Loaders
Subcategory
Articulated Wheel Loaders
Articulation angle
42 °
Average sound power level LwA
103.3 dB(A)
Axles
PA 1400
Breakout force maximum
9,538.6 lbf
Bucket capacity Standard bucket
0.981 yd³
Bucket pivot point to axle center
40.4 in
Bucket rollback at ground level
43 °
Bucket rollback at max stroke height
44 °
Coolant type
Water / Charge Air
Drivers cab
Cabin
Dump angle maximum
39 °
Dump height max
99.3 in
Guaranteed sound power level LwA
101 dB(A)
Inside turning radius
60.6 in
Lifting force maximum
6,755.5 lb
Operating voltage
12 V
Overhead loading height
119.3 in
Radius at outer edge
136.3 in
Radius maximum
155.2 in
Range at M
24.6 in
Rear overhang
60.3 in
Scraping depth
4.4 in
Seat height
61.4 in
Specified sound pressure level LpA
78 dB(A)
Speed Level
2
Speed (optional)
0-30 km/h
Speed (standard)
0-20 km/h
Standard tires
405/70-18 EM ET 0
Stroke height max - bucket pivot point
3,358 mm
Track width
53.6 in
Traction drive
Hydrostatic with universal joint shaft
Ground clearance
14.3 in
Height with cab
103 in
Operating weight
11,243.5 lb
Overall length
216.1 in
Overall length without bucket
183 in
Overall width
1,874 mm
Rear overhang
1,531 mm
Total operating height
158.5 in
Track width
1,361 mm
Wheelbase
79.1 in
