Description

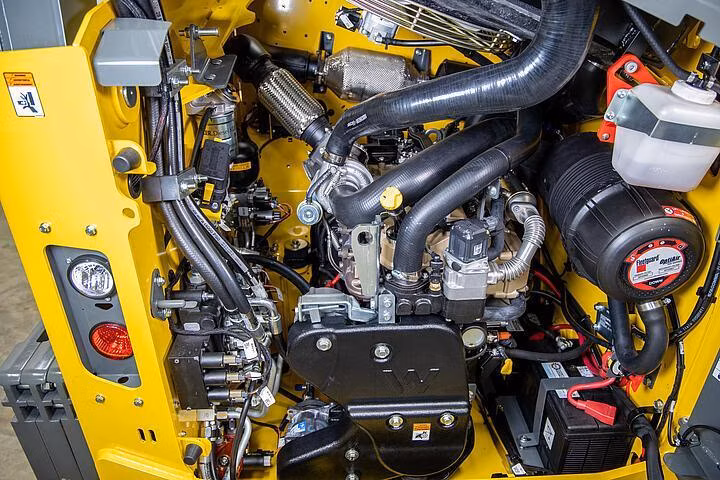

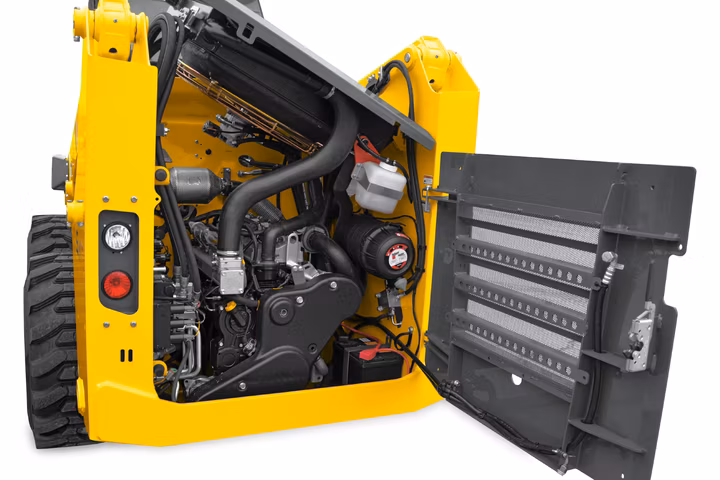

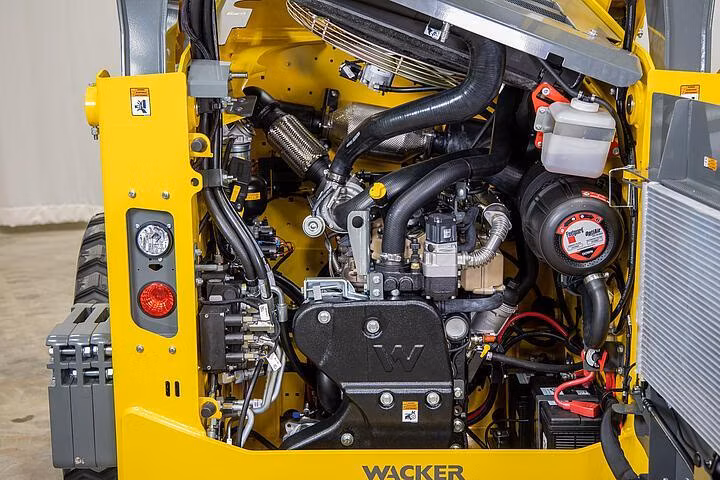

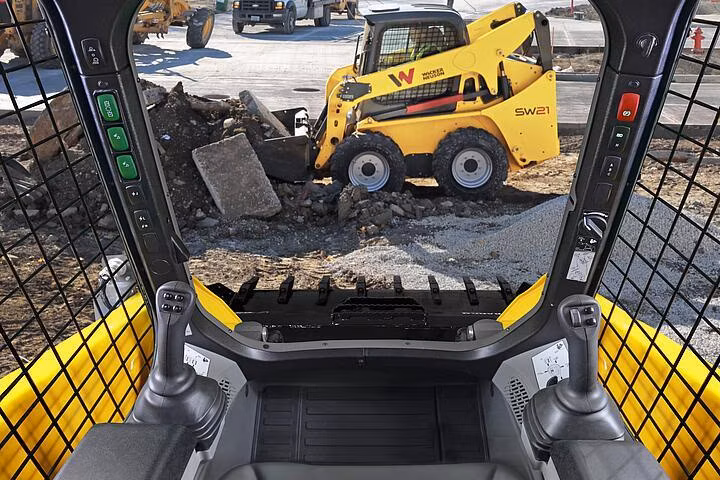

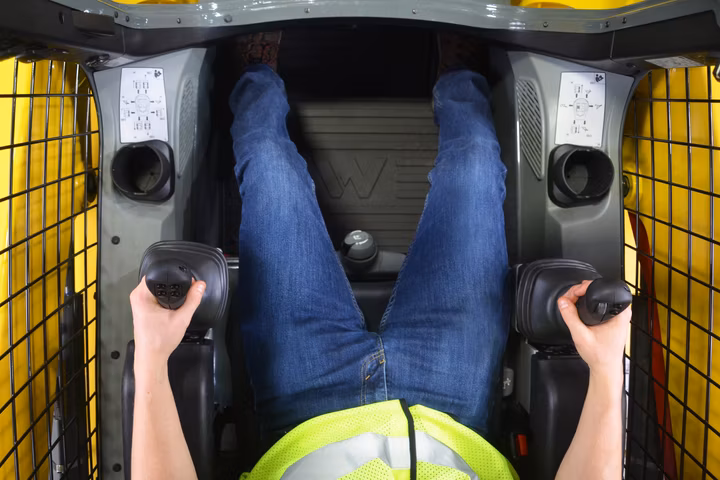

ST27 Track Loader: Small But FierceThe ST27 offers a compact design, outstanding visibility and operator comfort features that make it a perfect fit for any job. The trim package, low weight and ability to lift heavier loads, compared to similar machines in this class, make it especially productive for smaller job sites. The ST27 is powered by a Kohler turbocharged engine offering high horsepower, superior torque and large fuel capacity to operate longer and get more done. The vertical lift arms allow excellent lift and dump height for maximum efficiency and flexibility on the job site.
Specifications
Manufacturer
Wacker Neuson
Model
ST27
Year
2026
Category
Skid Steers
Subcategory
Track Loaders
Ground Pressure (standard track)
4.4 psi
Break Out Force Bucket
5,404.2 lbf
Break Out Force Lift Arm
4,783.3 lbf
Tractive Effort max at 100% effective force
7,476.9 lbf
Bucket Roll Back
2.1 s
Bucket Roll Out
2.2 s
Lift Arm Raise
3.3 s
Lift arm lower
2.8 s
Travel speed stage 1
6.4 m/H
Travel speed stage 2 Two
9.1 m/H
Operating weight
7,350.2 lb
Cylinder
4,0
Oil filling max
2.5 gal US
Power rating max
74 hp
Flow rate
19.3 gal/mi
Flow rate max
28.8 gal/mi
Auxiliary relief pressure
3,480 psi
Cooling fluid volume
13.7 qt US
Hydraulic fluid volume
30.6 qt US
Fuel Tank capacity
27.2 gal US
Tip Load
5,599.7 lb
Rated Operating Capacity at 35% Tip Load
1,889.4 lb
Overall Length without bucket
102.5"
Overall Length with Bucket
132.4"
Overall width without bucket
52.8"
Overall Width (Large Track)
60"
Overall height to top of ROPS
79.8"
Bucket Hinge Pin Height
119.9"
Bucket roll back at ground
30 °
Bucket roll back at maximum height
95 °
Angle of departure
29 °
Bucket dump height at maximum height
155.3"
Bucket dump angle at maximum height
37 °
Track width
12.6"
Ground clearance
8.5"
Length of Track on Ground
53.1"
Dump reach at maximum height
39.1"
Height for shipping
100"
