Description

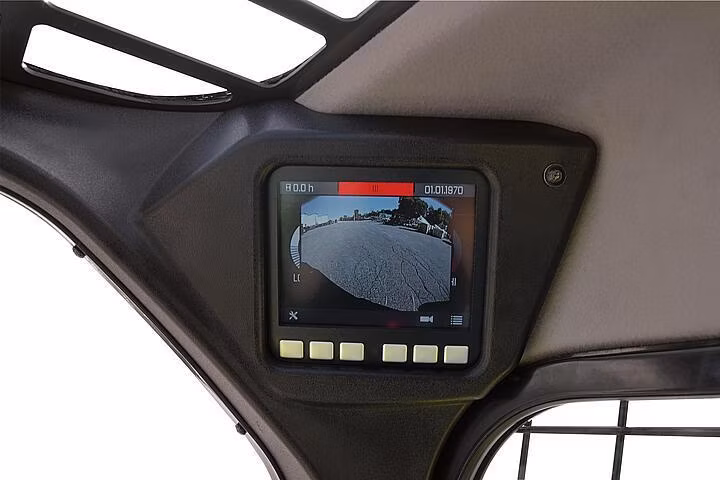

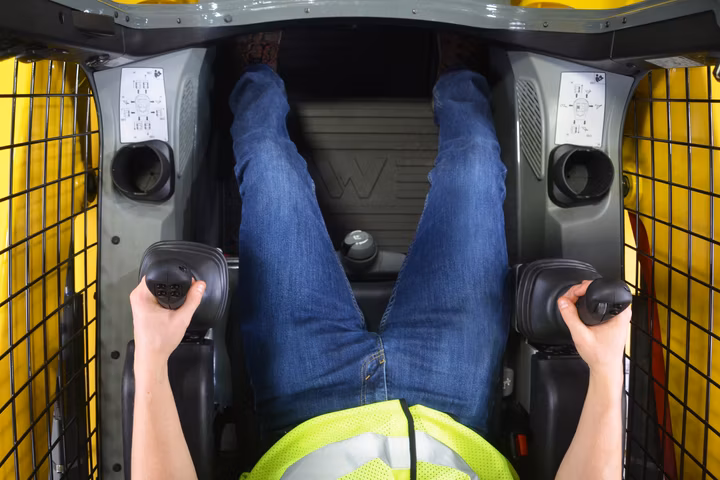

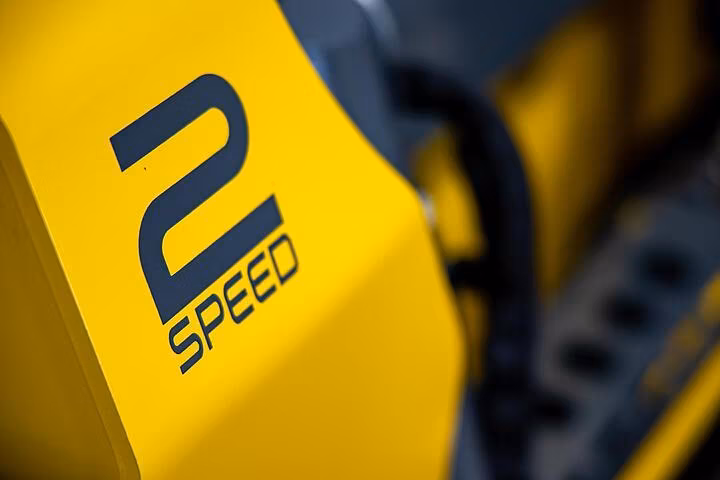

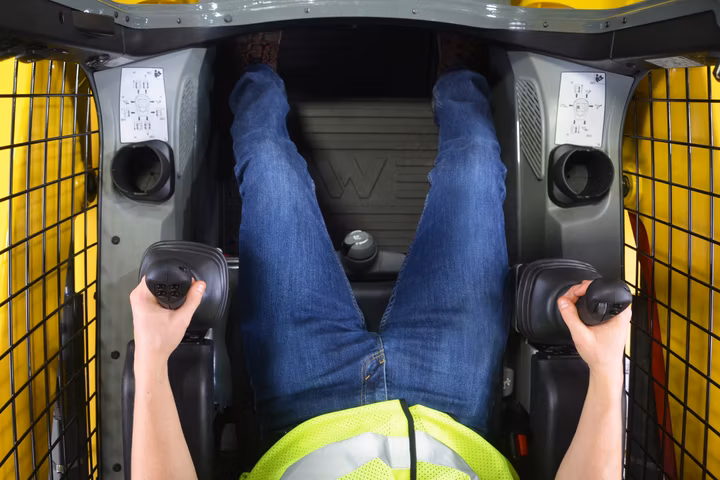

ST37 Compact Track Loader: Powerful and Productive. The ST37 offers the performance more in line with a large frame loader but in a more compact, nimble package. Standard features include switchable EH joystick controls, 2-speed travel with auto shift, color display, and battery disconnect which provide comfort and performance to the operator. The lift capacity of 3,700 lbs gives the user the flexibility to work in a variety of jobs with ease using one machine to get the job done.
Specifications
Manufacturer
Wacker Neuson
Model
ST37
Year
2026
Category
Skid Steers
Subcategory
Track Loaders
Overall length with bucket
136.1 in
Overall length without bucket
106.9 in
Overall width with bucket
75.8 in
Overall width without bucket
72 in
Overall height
82.8 in
Length of track on ground
58.9 in
Hinge pin height
128.5 in
Dump height max
100.8 in
Dump reach
38 in
Ground clearance
9.1 in
Track width
17.7 in
Track width (optional)
15.7 in
Height to top of ROPS
82.8 in
Bucket Hinge Pin Height
128.5 in
Bucket height at height max
163.5 in
Length without Bucket
106.9 in
Length with Bucket
136.1 in
Overall Width (Large Track)
70.3 in
Dump reach at max height
38 in
Buck dump angle at height max
40 °
Angle of departure
33 °
Bucket rollback at max stroke height
94.1 °
Bucket rollback at ground level
30 °
Ground Pressure(Standard track
4.4 psi
Break Out Force Bucket
7,041.9 lbf
Break Out Force Lift Arm
6,481.9 lbf
Tractive Effort max
11,078.6 lbf
Bucket Roll Back
1.5 s
Bucket Roll Out
2.1 s
Lift Arm Raise
3.3 s
Lift arm lower
1.8 s
Travel speed stage 1
6.5 m/H
Travel speed stage 2
9.6 m/H
Operating weight
9,014.7 lb
Fuel Tank capacity
35.1 gal US
Tip Load
7,400.9 lb
Rated Operating Capacity at 50% Tip Load
3,099.7 lb
Rated Operating Capacity at 35% Tip Load
2,590.4 lb
Cylinder
4
Cylinder capacity
151.5 Inch3
Operating power
73.8 hp
Operating Engine speed
2,600 1/min
Engine type
Diesel engine
Engine Manufacturer
Kohler
Engine Designation
KDI2504TCR
Flow rate
23 gal/mi
Flow rate max
33 gal/mi
Auxiliary relief pressure
3,480 psi
