Description

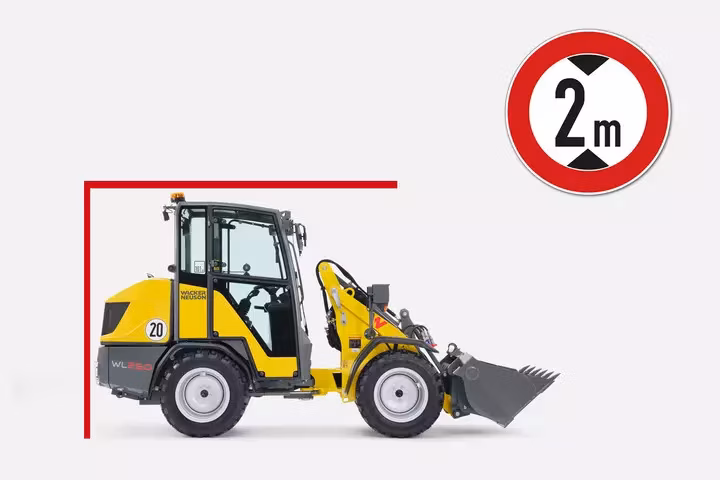

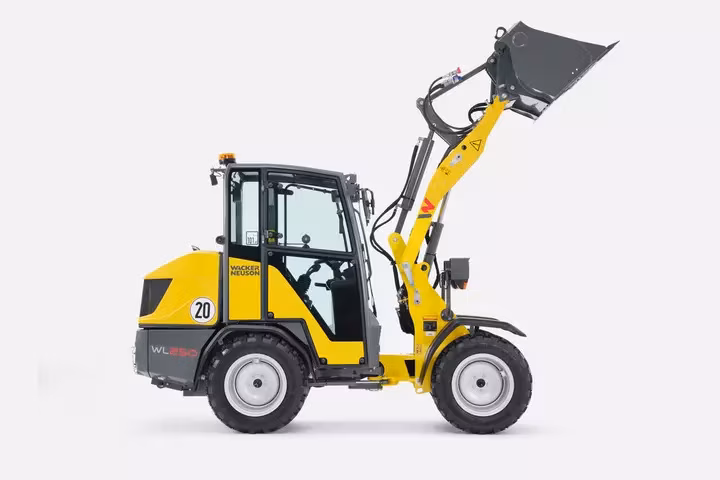

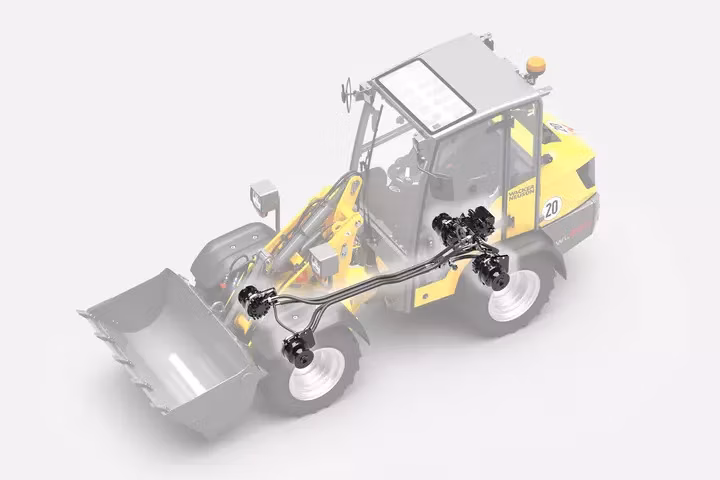

The WL250 wheel loader has an overall lower height and compact dimensions. As a result, the machine can pass through clearance heights of below 78.74 in without the need to fold down the operator's canopy. The machine’s low center of gravity ensures very good stability and allows the handling of heavy loads. The wheel hub drive also includes the powerful and efficient drive concept, with which all four wheels are directly driven. This purely hydraulic wheel hub drive ensures an increase in efficiency, excellent acceleration, and therefore enables a responsive driving behavior as well as high thrust power.
Specifications
Manufacturer
Wacker Neuson
Model
WL250
Year
2026
Category
Loaders
Subcategory
Wheel Loaders

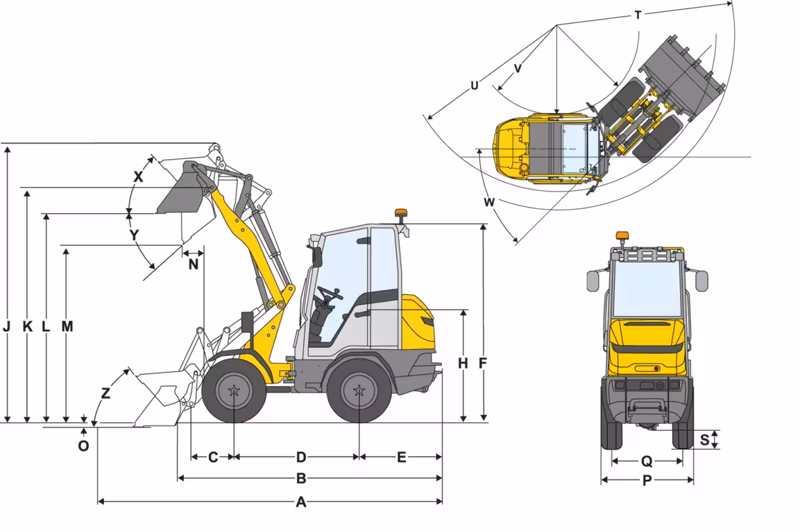

A Total length
150.8 in
B Total length without bucket
127.6 in
C Bucket pivot point (to center of axle)
19.9 in
D Wheel base
65.7 in
E Rear overhang
37.6 in
F Height with operator's canopy (fixed)
78.0 in
F Height with cab
78.3 in

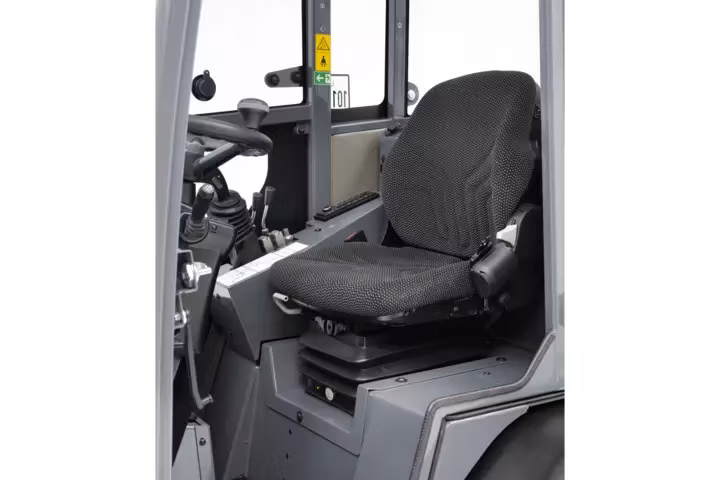

H Seat height
39.4 in
J Total working height
120.1 in
K Bucket pivot point (max lift height)
98.8 in
L Load-over height
87.4 in
M Dumping height
70.5 in
N Reach (at M)
3.1 in
O Digging depth
4.7 in
P Total width
38.6 in
Q Track width
30.0 in
S Ground clearance
8.2 in
T Maximum radius
122.0 in
U Radius on the outer edge
107.5 in
V Inner radius
63.4 in
W Articulation angle
43 °
X Rollback angle at max lift height
49 °
Y Dumping angle
45 °
Z Rollback angle on ground
48 °
Engine manufacturer
Perkins
Motor type
403 J-17
Cylinder
3
Drive output ONE
18.4 kW
Drive output
24.7 HP
At max rpm
2,800 rpm
Cylinder capacity
101.48 in³
Type of coolant
Water
Exhaust standard level
V
Operating voltage
12 V
Battery
77 Ah
Alternator
85 A
Drive hydraulics working pressure (max)
6,092 psi
Work hydraulics discharge volume (max)
11.8 gpm
Work hydraulics working pressure (max)
2,683 psi
Bucket capacity (standard bucket)
7.42 ft³
Operating weight
3,968- 4,960 lb
Thrust force (max)
2,069- 2,582 daN
Lift capacity (max)
1,779- 2,395 daN
Tipping load with bucket – machine straight, loading frame horizontal
2,557- 3,726 lb
Tipping load with bucket – machine pivoted, loading frame horizontal
2,161- 3,175 lb
Tipping load with pallet fork – machine straight, loading frame horizontal
1,962- 2,778 lb
Tipping load with pallet fork – machine pivoted, loading frame horizontal
1,631- 2,381 lb

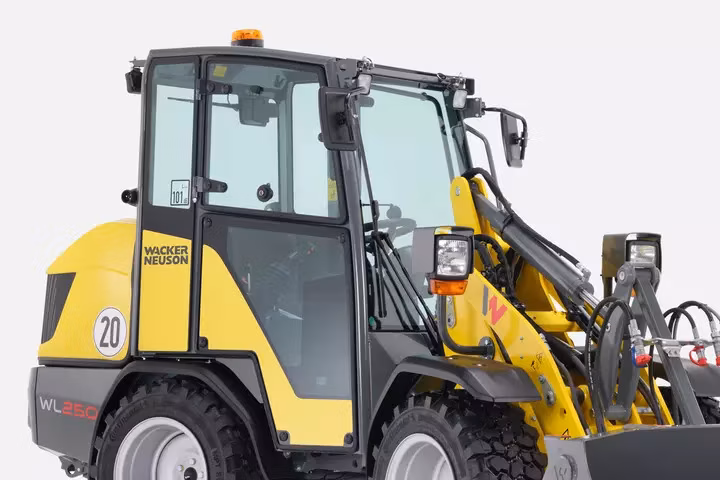

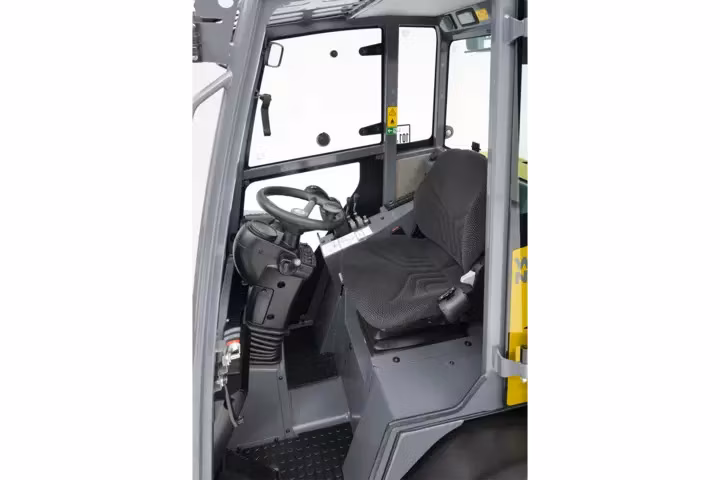

Driver's cab
FSD (cabin)
Tank capacity for fuel
4.8 US gal
Tank capacity for hydraulic oil
4.8 US gal
Drive unit
Hydrostatic via four wheel hub motors
Speed levels
1
Travel speed Standard
0-12.43 mph
Operating brake
Hydrostatic drive system acting on all 4 wheels
Parking brake
Electro-hydraulic multi-disc brake on the rear axle
Kinematics type
P
Lifting cylinder
2
Tipping cylinder
1

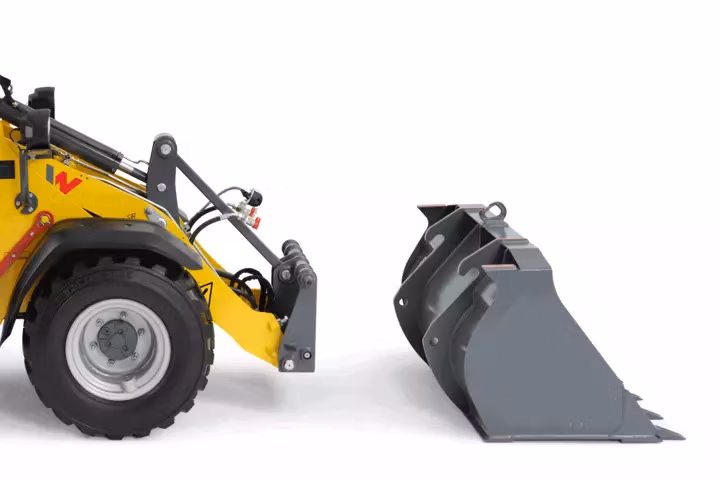

Quick change system
hydraulic
Steering type
hydraulically activated articulated pendulum steering
Steering cylinder
1
Oscillating angle
± 8 degree
Average sound power level LwA (operator's canopy)
99.4 dB(A)
Guaranteed sound power level LwA (operator's canopy)
101 dB(A)
Specified sound pressure level LpA (operator's canopy)
84 dB(A)
Average sound power level LwA (cabin)
99.4 dB(A)
Guaranteed sound power level LwA (cabin)
101 dB(A)
Specified sound pressure level LpA (cabin)
80 dB(A)
