Description

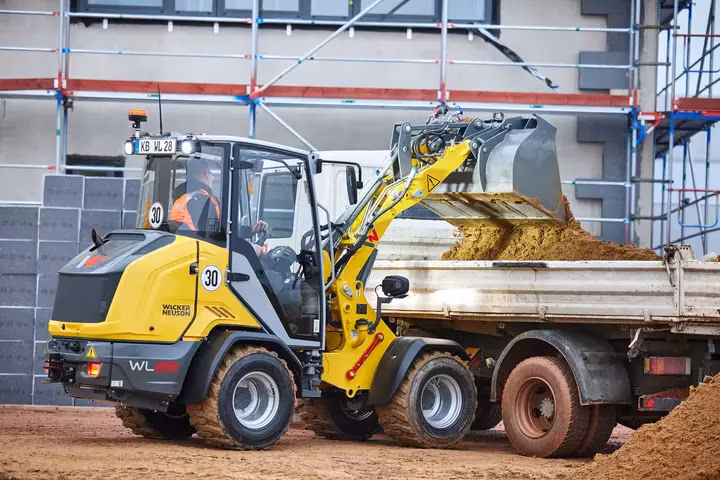

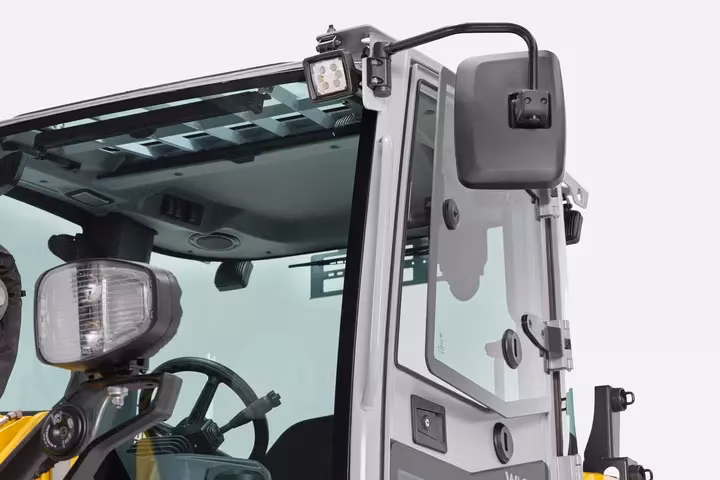

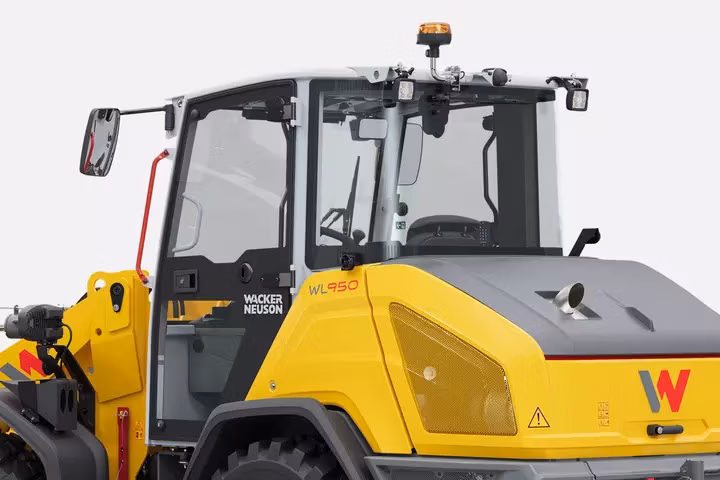

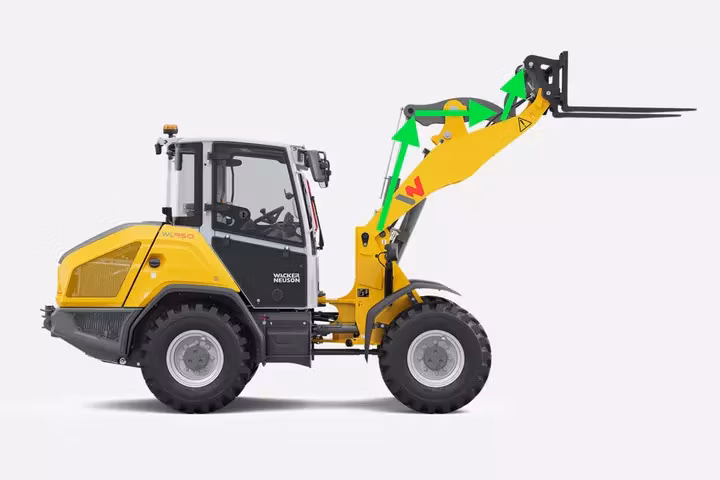

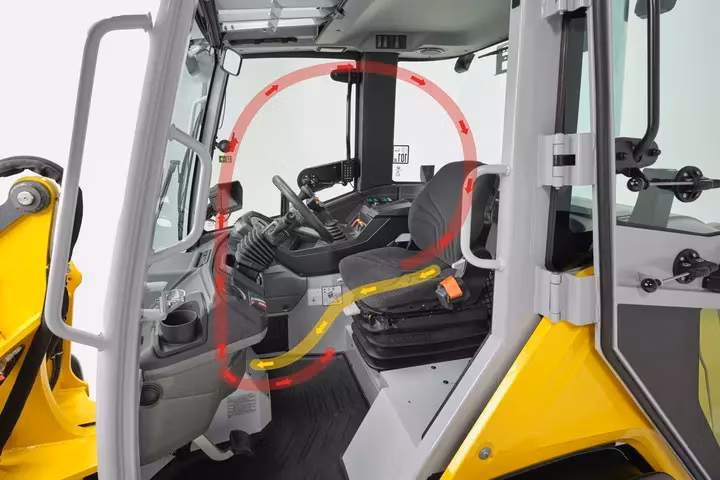

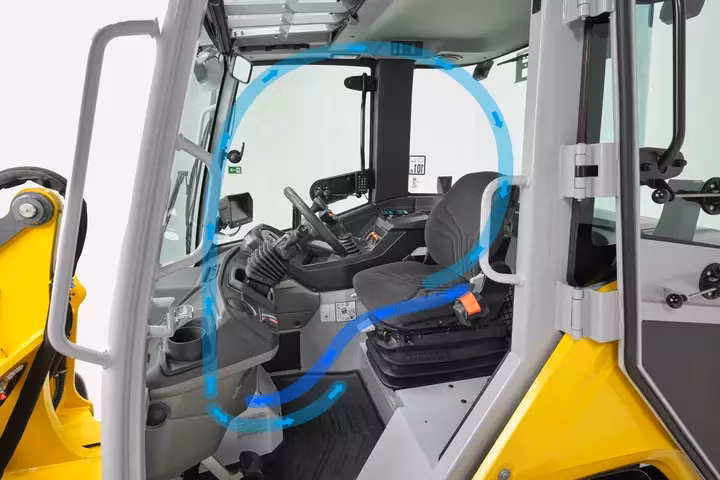

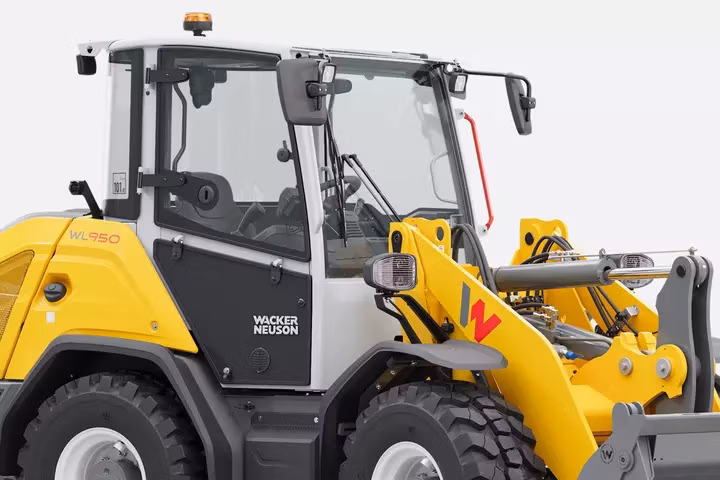

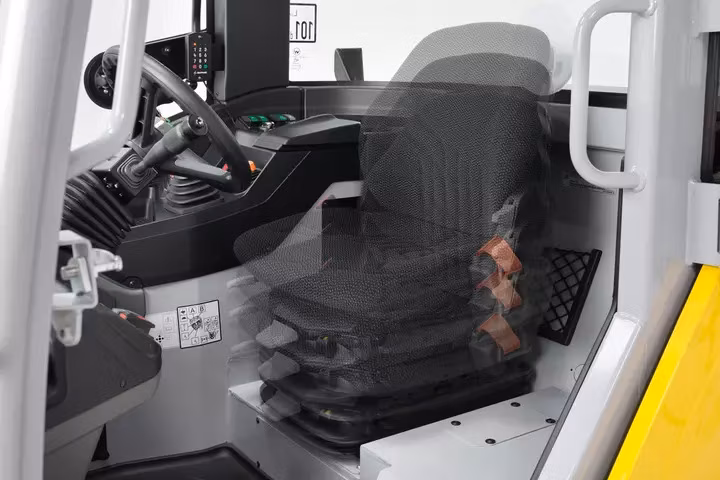

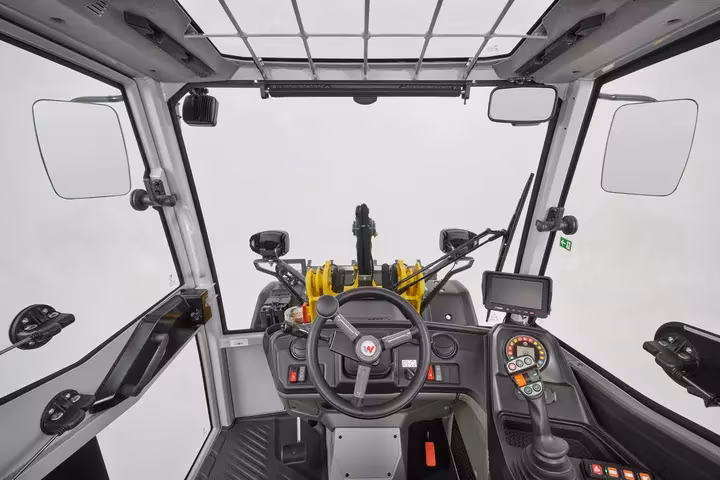

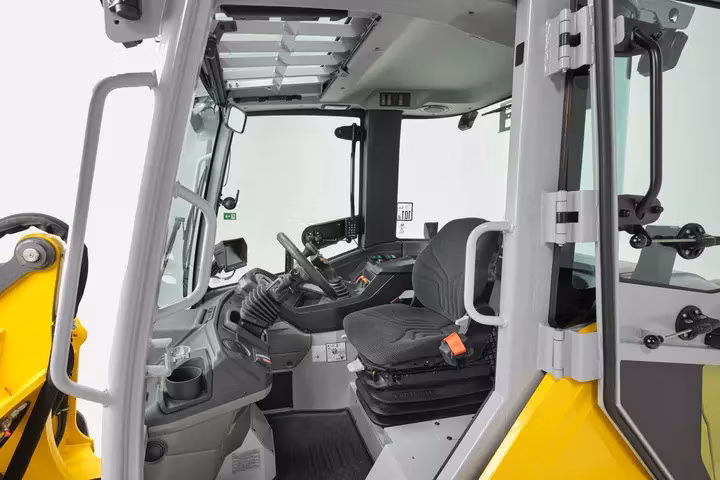

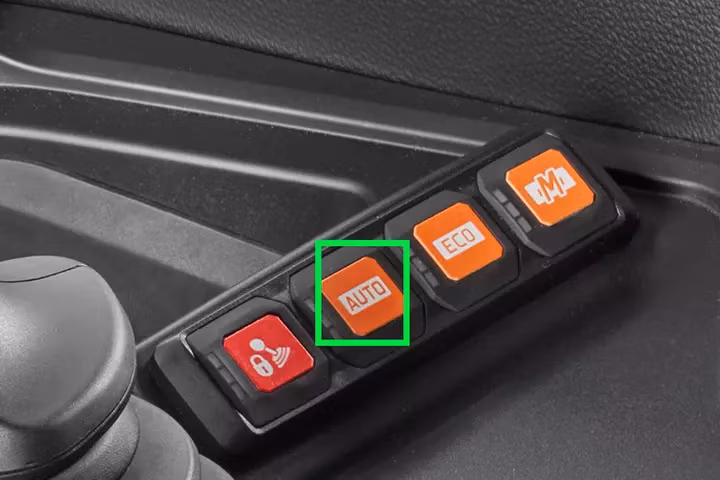

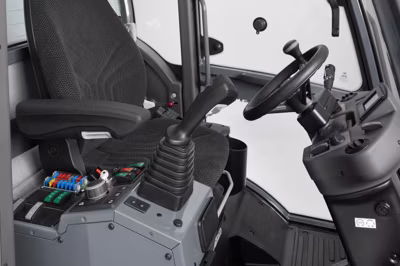

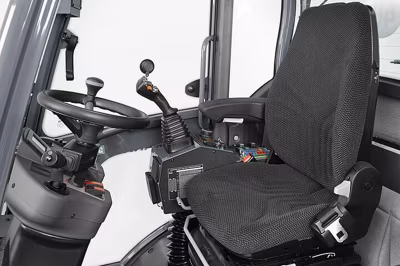

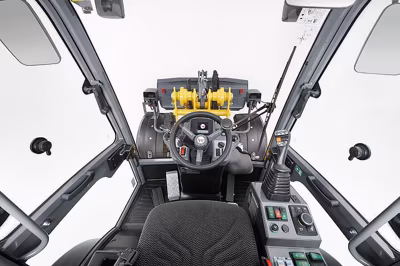

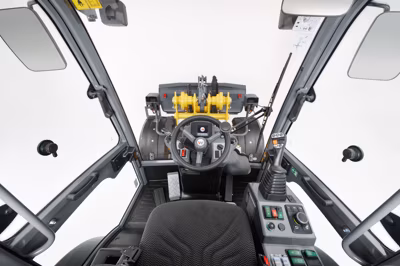

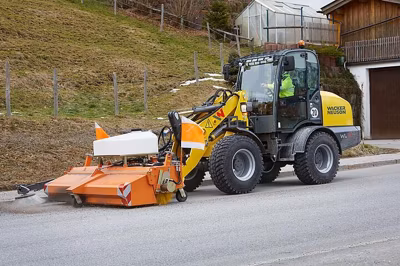

WL950 Wheel Loader: The top performer These features characterise the WL950 wheel loader: Comfort cabin with excellent ergonomics and 360° visibility, electronically controlled drive system with various operating modes, sturdy load arm with an optimal view of the attachment
Specifications
Manufacturer
Wacker Neuson
Model
WL950
Year
2026
Category
Loaders
Subcategory
Wheel Loaders

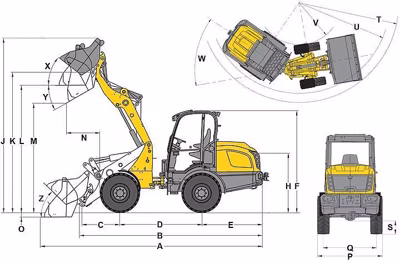

Total Length
213.8 in
Total Length Without Bucket
183.9 in
Bucket Pivot Point (To Center Of Axle)
37.8 in
Wheel Base
84.6 in
Rear Overhang
56.5 in
Height With Cab
98.8 in
Seat Height
58.5 in
Total Working Height
160.2 in
Bucket Pivot Point (Max Lift Height)
128.0 in
Load-Over Height
117.9 in
Dumping Height
96.5 in
Reach (At M)
26.6 in
Digging Depth
3.3 in
Total Width
72.0 in
Track Width
55.9 in
Ground Clearance
14.8 in
Maximum External Radius
169.3 in
Radius On The Outer Edge
154.9 in
Inner Radius
81.5 in
Drive Hydraulics Working Pressure (Max)
7,252 psi
Work Hydraulics Discharge Volume (Max)
19.55 gpm
Work Hydraulics Working Pressure (Max)
3,408 psi
Lifting Cylinder
1
Tipping Cylinder
1
Engine Manufacturer
Kohler
Motor Type
KDI1903TCR
Number Of Cylinders
3
Drive Output
56.3 HP
Max RPM
2,600 rpm
Cylinder Capacity
113.6 in³
Type Of Coolant
Water
Exhaust Standard Level
V
Exhaust Aftertreatment
DOC/DPF
Operating Voltage
12 V
Battery
100 Ah
Alternator
120 A
Bucket Capacity (Standard Bucket)
30.02 ft³
Operating Weight
11,023 - 11,464 lb
Tipping Load With Bucket – Machine Straight
7,871 - 8,708 lb
Tipping Load With Bucket – Machine Pivoted
6,768 - 7,518 lb
Tipping Load With Pallet Fork – Machine Straight
6,526 - 7,187 lb
Tipping Load With Pallet Fork – Machine Pivoted
5,644 - 6,239 lb
Tank Capacity For Fuel
21.13 US gal
Tank Capacity For Hydraulic Oil
8.45 US gal
Type Of Drive
Electronically controlled
Drive Unit
Hydrostatic via transfer gearbox and universal joint shaft
Speed Levels
2
Axle
PA1422
Travel Speed Standard
0-12.43 mph
Operating Brake
Drum brake
Parking Brake
Drum brake (mechanical handbrake lever)
Differential Lock
100 % front axle + rear axle
Kinematics Type
Z

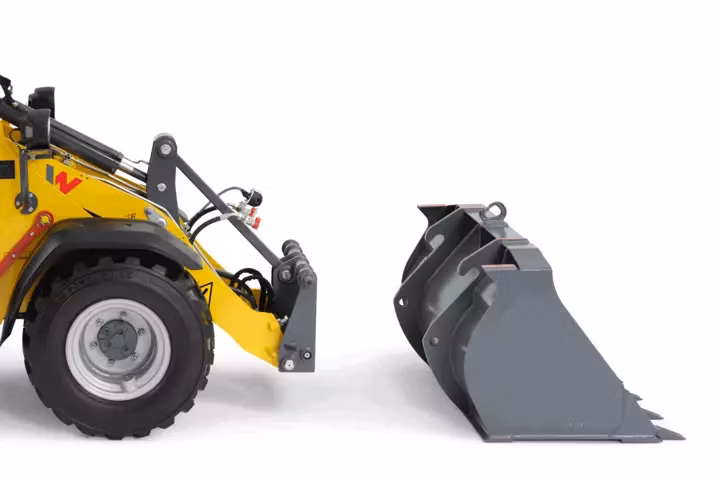

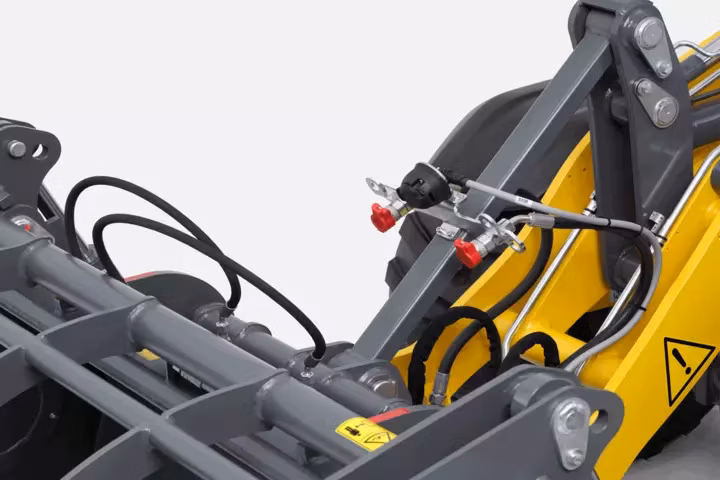

Quick Change System
Hydraulic

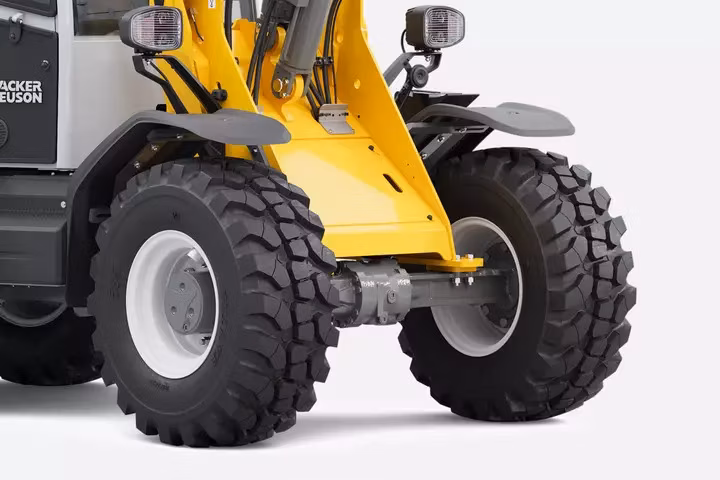

Steering Type
Hydraulically activated articulated pendulum steering
Steering Cylinder
1
Average Sound Power Level LwA (Cabin)
99.9 dB(A)
Guaranteed Sound Power Level LwA (Cabin)
101 dB(A)
Specified Sound Pressure Level LpA (Cabin)
69 dB(A)
Articulation Angle
40°
Rollback Angle At Max Lift Height
66°
Dumping Angle
45°
Rollback Angle On Ground
44°
