Description

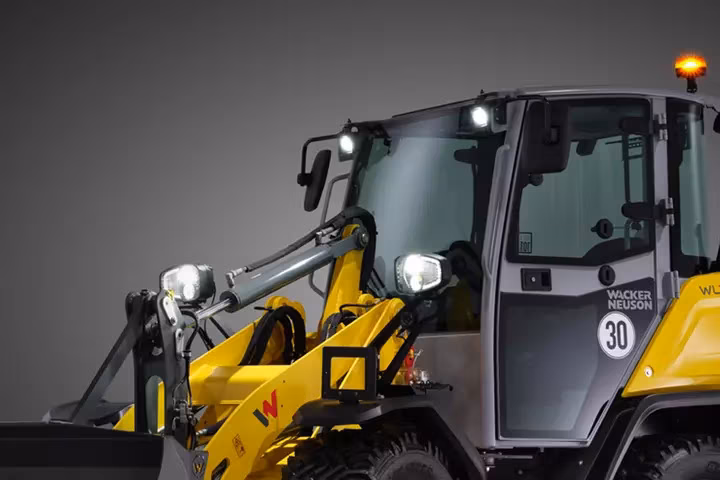

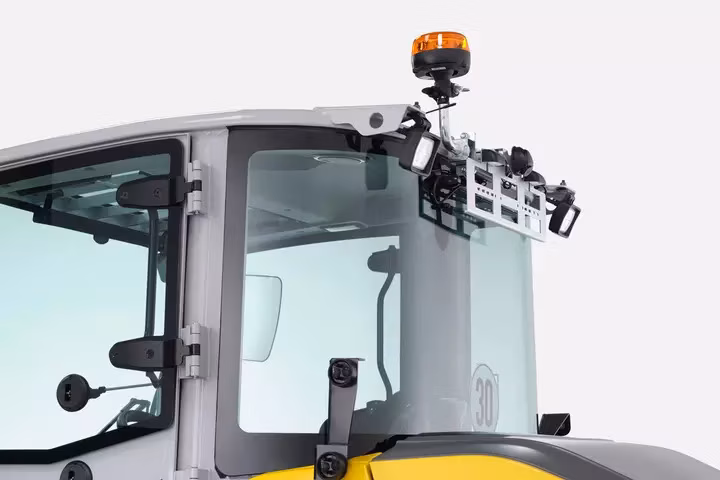

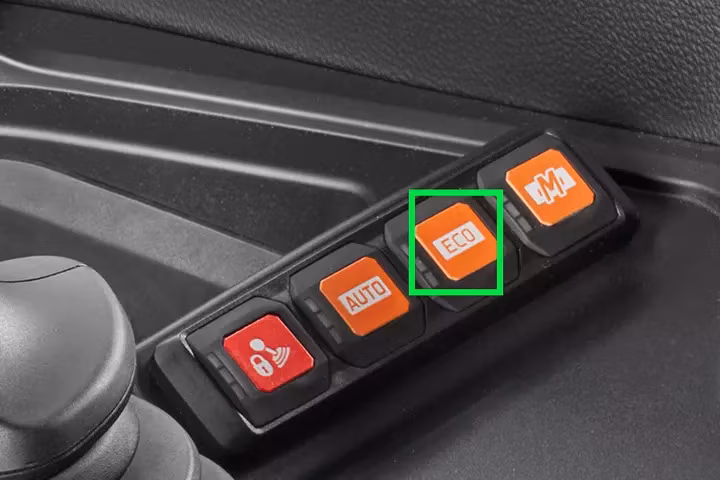

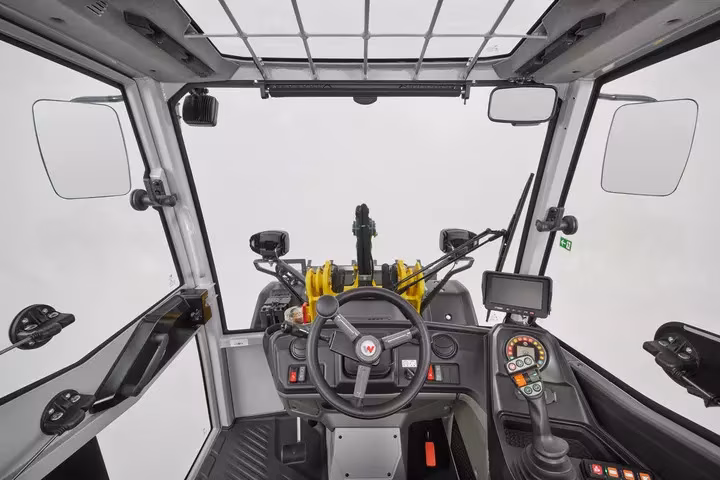

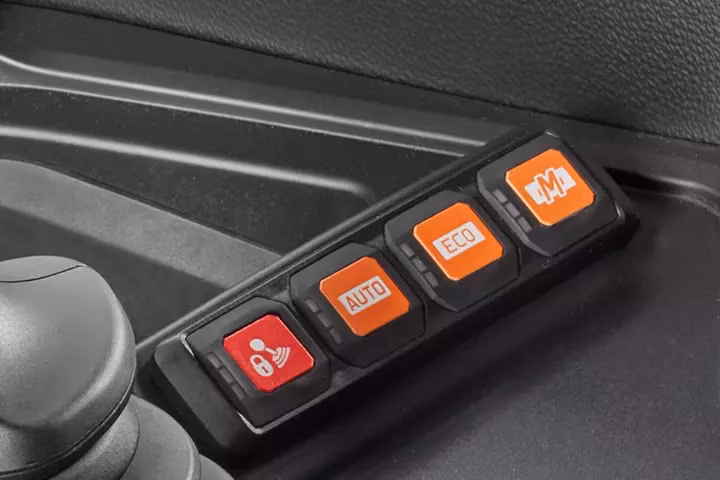

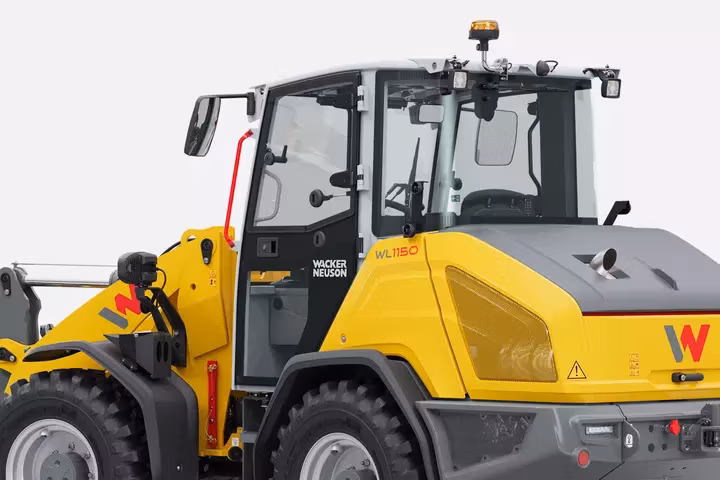

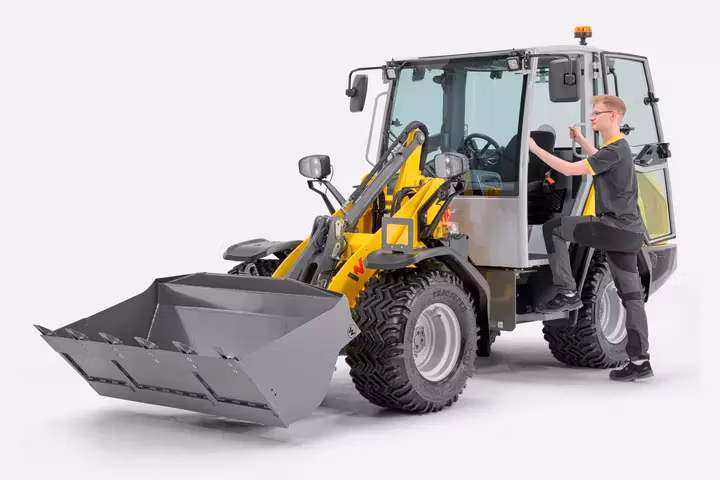

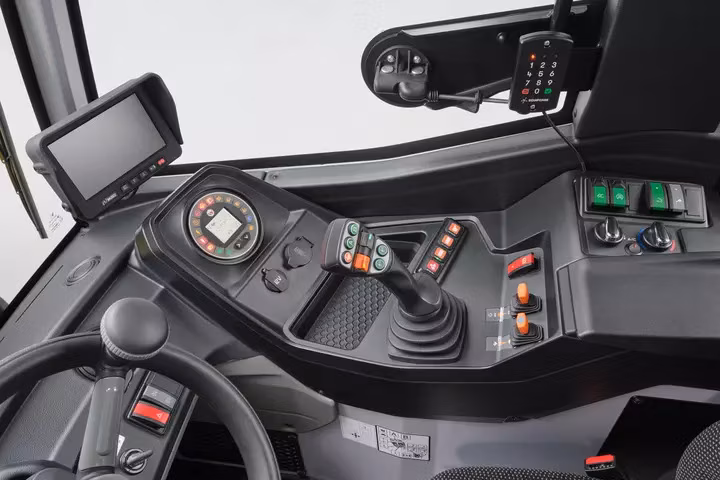

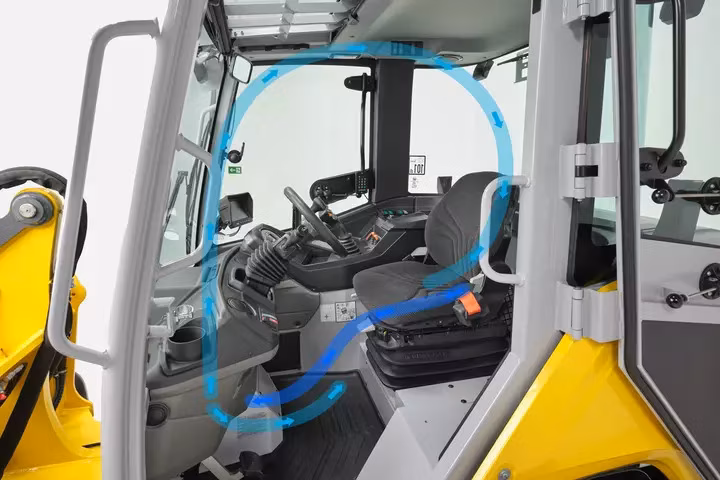

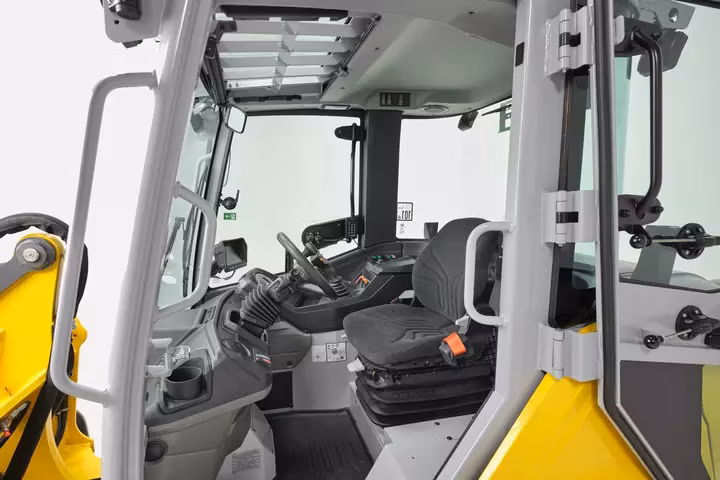

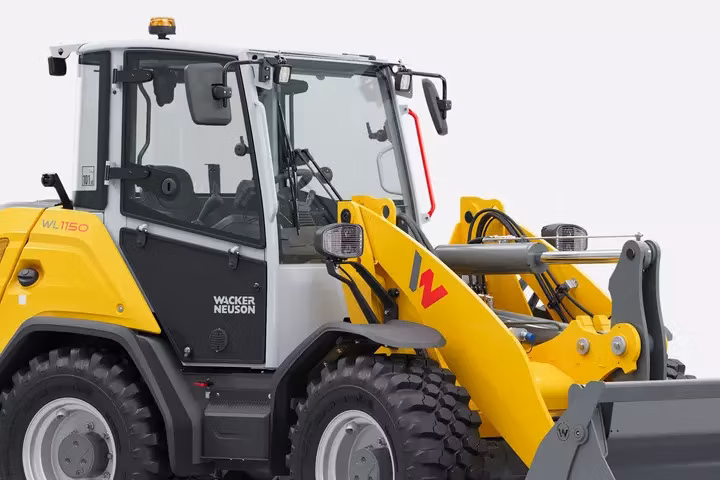

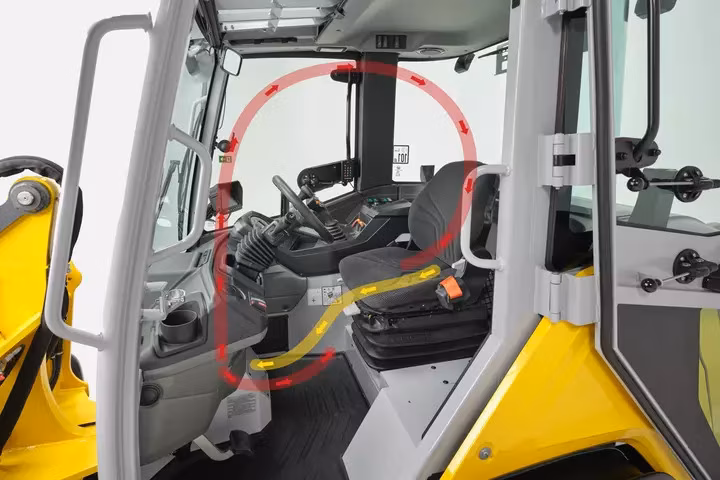

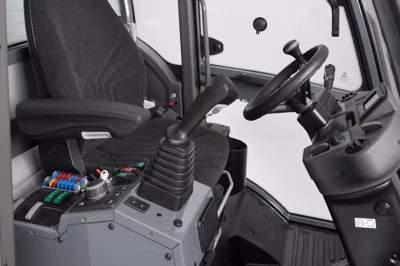

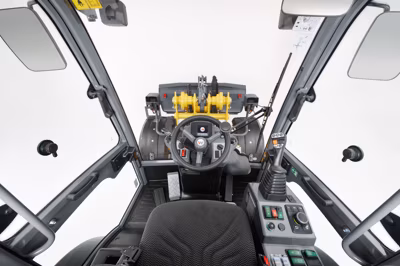

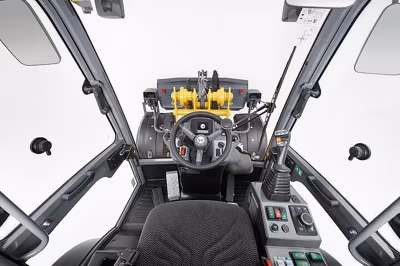

WL1150 Wheel Loader: The power type These features characterise the WL1150 wheel loader: Comfort cabin with excellent ergonomics and 360° visibility, electronically controlled drive system with various operating modes, sturdy load arm with an optimal view of the attachment.
Specifications
Manufacturer
Wacker Neuson
Model
WL1150
Year
2026
Category
Loaders
Subcategory
Wheel Loaders

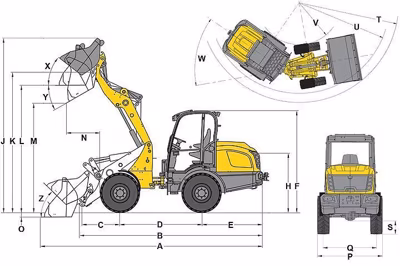

Total Length
224.6 in
Total Length Without Bucket
191.1 in
Bucket Pivot Point (To Center Of Axle)
44.1 in
Wheel Base
84.6 in
Rear Overhang
56.5 in
Height With Cab
98.8 in
Seat Height
58.5 in
Total Working Height
169.5 in
Bucket Pivot Point (Max Lift Height)
134.8 in
Load-Over Height
125.0 in
Dumping Height
100.2 in
Reach (At M)
34.6 in
Digging Depth
4.1 in
Total Width
72.0 in
Track Width
55.9 in
Ground Clearance
14.4 in
Maximum External Radius
175.2 in
Radius On The Outer Edge
157.1 in
Inner Radius
81.5 in
Drive Hydraulics Working Pressure (Max)
7,252 psi
Work Hydraulics Discharge Volume (Max)
20.34 (25.10) gpm
Work Hydraulics Working Pressure (Max)
3,408 psi
Lifting Cylinder
1
Tipping Cylinder
1

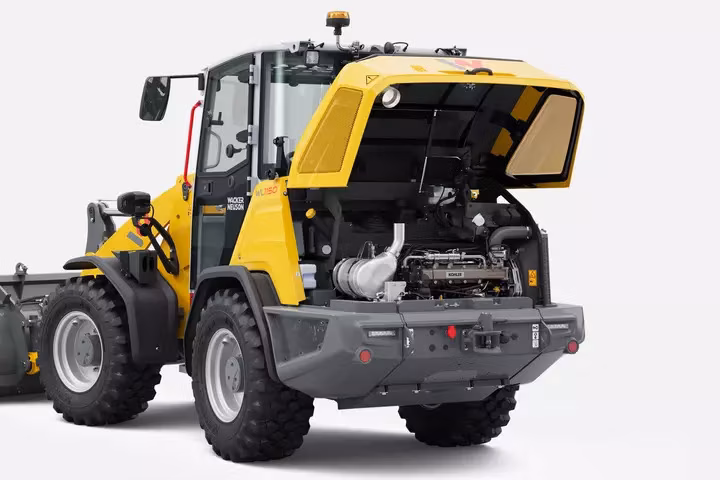

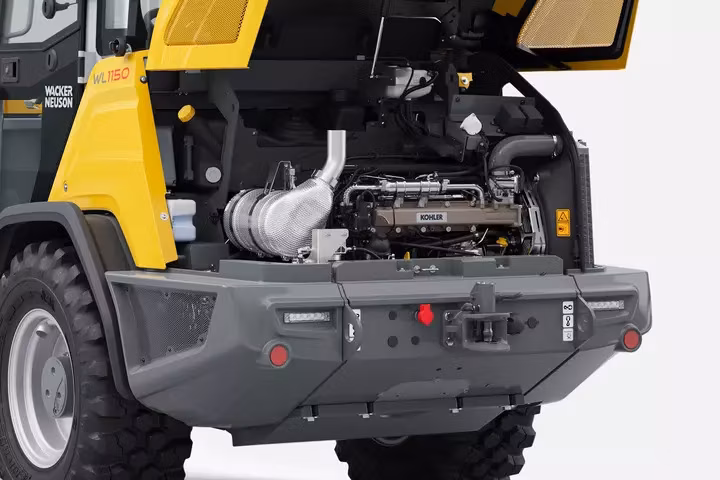

Engine Manufacturer
Kohler
Motor Type
KDI 2504 TCR
Number Of Cylinders
4
Drive Output
74.29 HP
Max RPM
2,300 rpm
Cylinder Capacity
151.46 in³
Type Of Coolant
Water
Exhaust Standard Level
V
Exhaust Aftertreatment
DOC/DPF
Operating Voltage
12 V
Battery
100 Ah
Alternator
120 A
Bucket Capacity (Standard Bucket)
35.31 ft³
Operating Weight
12,566 - 13,448 lb
Tipping Load With Bucket – Machine Straight
8,223 - 8,951 lb
Tipping Load With Bucket – Machine Pivoted
6,945 - 7,716 lb
Tipping Load With Pallet Fork – Machine Straight
7,253 - 7,871 lb
Tipping Load With Pallet Fork – Machine Pivoted
6,195 - 6,812 lb
Tank Capacity For Fuel
21.13 US gal
Tank Capacity For Hydraulic Oil
8.45 US gal
Type Of Drive
Electronically controlled
Drive Unit
Hydrostatic via transfer gearbox and universal joint shaft
Speed Levels
2

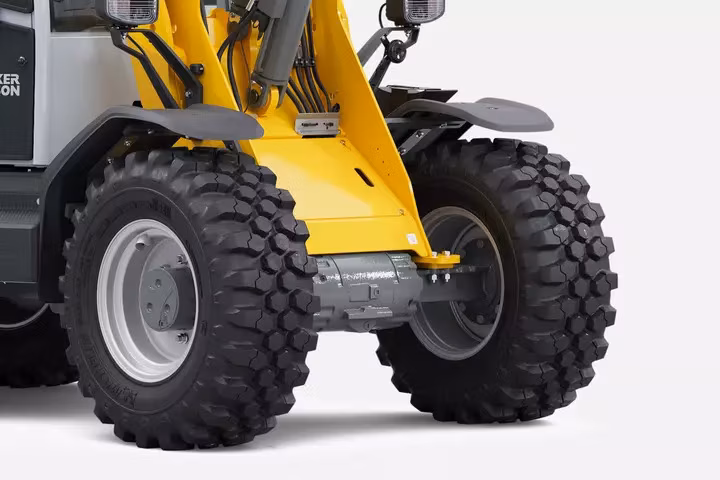

Axle
PA1422
Travel Speed Standard
0-12.43 mph
Operating Brake
Disc brake
Parking Brake
Disc brake (mechanical handbrake lever)
Differential Lock
100 % front axle + rear axle

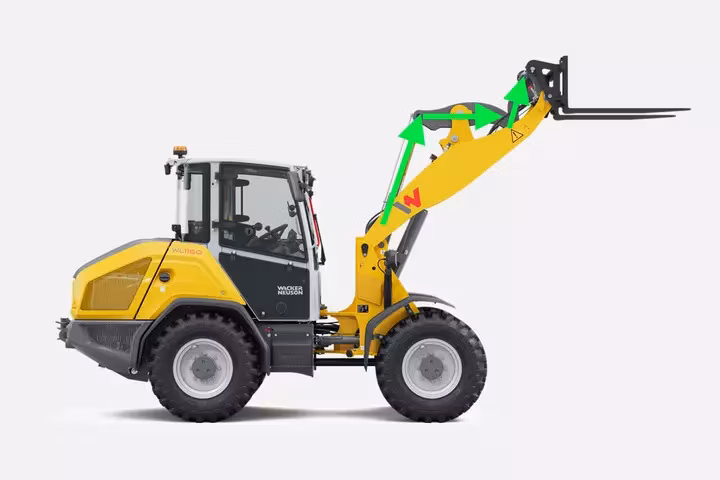

Kinematics Type
Z

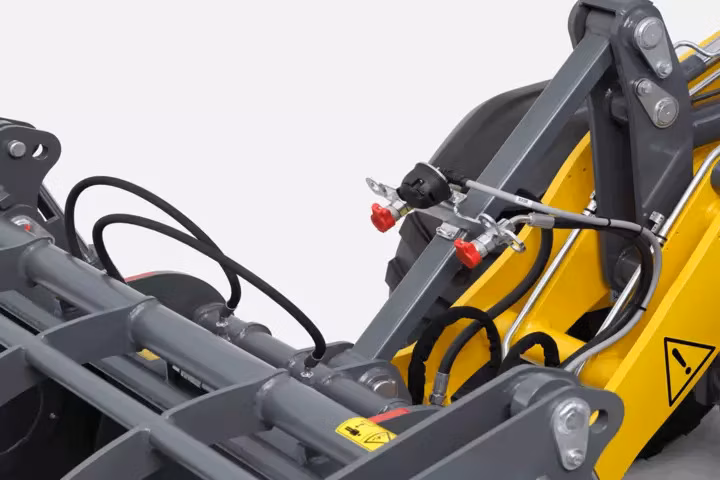

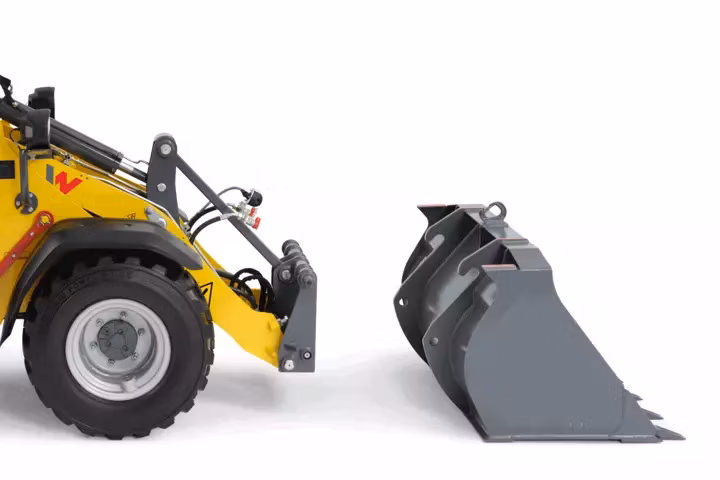

Quick Change System
Hydraulic
Steering Type

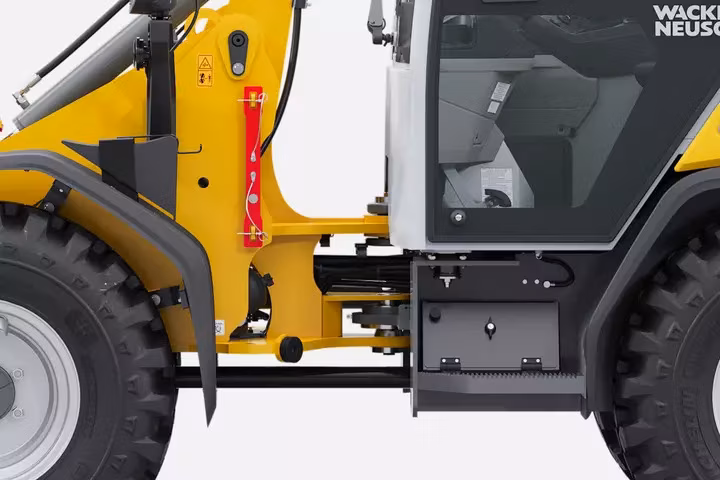

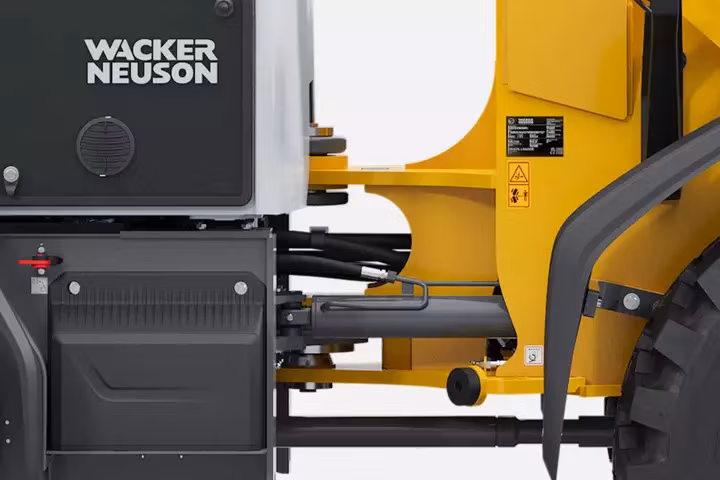

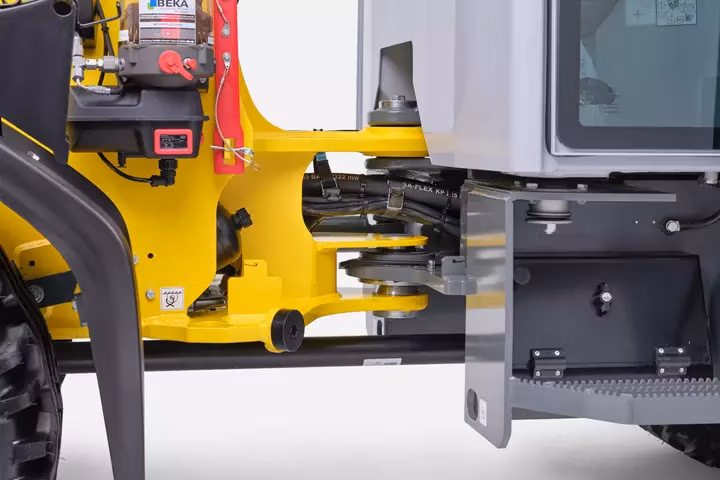

Hydraulically activated articulated pendulum steering
Steering Cylinder
1
Average Sound Power Level LwA (Cabin)
99.8 dB(A)
Guaranteed Sound Power Level LwA (Cabin)
101 dB(A)
Specified Sound Pressure Level LpA (Cabin)
71 dB(A)
Articulation Angle
40°
Rollback Angle At Max Lift Height
65°
Dumping Angle
45°
Rollback Angle On Ground
45°
